Stainless Steel Saddle Plate for Railing

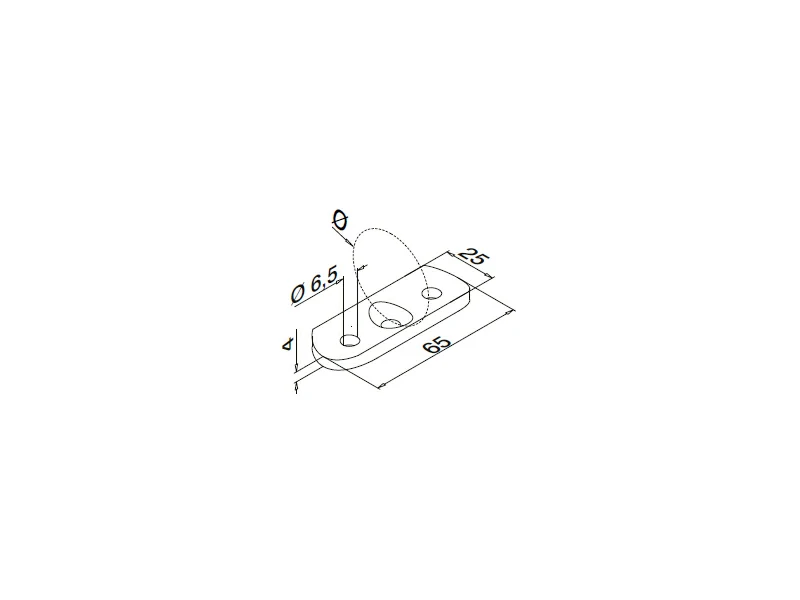

Steel Saddle Plate Structure

Saddle Plate

The Stainless Steel Saddle Plate for Railing is a specialized component used for securing and stabilizing stainless steel tubes or pipes in a railing system, providing a strong and stable connection to a post or a wall. It is crafted from high-quality stainless steel materials such as AISI 304, AISI 316, or Duplex SS 2205, ensuring durability and resistance to corrosion. The Stainless Steel Saddle Plate features a concave surface to securely fit around the tube, with mounting holes for attachment. The design is sleek, with options for Satin (matte) or Mirror Polished finishes, providing an aesthetic finish for the railing system. It is designed to fit tubes with diameters of 33.7mm, 42.4mm, or 48.3mm, making it versatile for different sizes of railing posts or tubes.

Category

Part NO.

Ø

Material

Surface

Place of Production

Handrail Supports

F017.00.00

Flat

AISI 304, 316 or Duplex SS 2205

Satin or Mirror polished

Shandong, China

Handrail Supports

F017.00.33

33.7mm

Handrail Supports

F017.00.42

42.4mm

Handrail Supports

F017.00.48

48.3mm



Saddle Plate Basic Info:

1. Advantage: Easier and quicker installatio; Easier cleaning and maintenance
2. Manufacturing Process: Investment Casting + Precision Machining+Polishing
3. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Warehouse, Workshop, Park, etc.
4. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
5. Certificate: ISO9001:2015
6. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
7. Certificates: Material Certificates, Dimension Inspection Certificate
8. Lead Time : 45days for samples making +50days batch production after saddle plate samples approved
9. Warranty Service: 1 Year
10. After-sales Service: Online Technical Support, Return And Replacement
