The Stainless Steel Handrail End is a specialized architectural component engineered to finish, cap, and transition the ends of stainless steel handrails. This part serves an essential double purpose in high-end construction and modern design, providing a neat, smooth, and professional finish while ensuring code-compliant safety at terminal boundaries. By curving downward to terminate seamlessly, it prevents clothing from snagging and eliminates sharp raw edges. It is a critical component in the installation of commercial and residential handrails, balustrades, and protective guardrail systems.

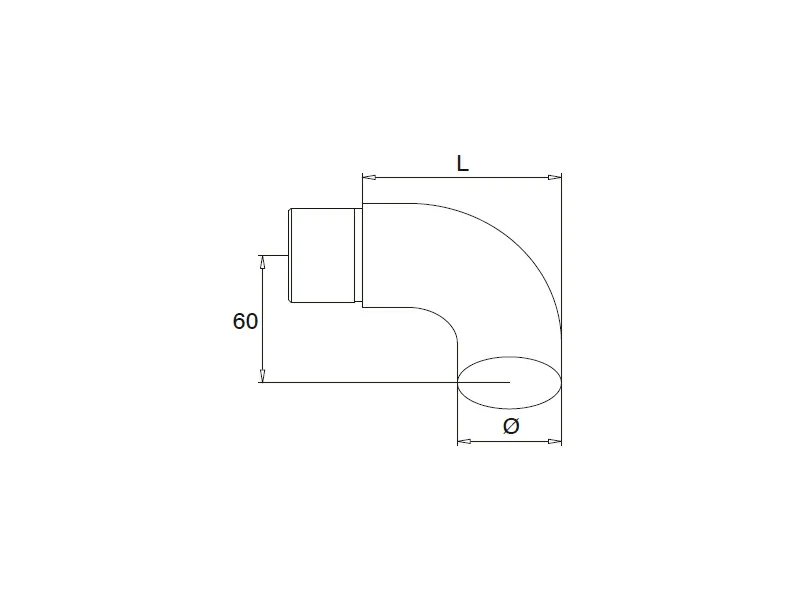

Precision-manufactured to support various structural demands, these heavy-duty handrail fittings feature a standard 60 mm centerline drop height and a customizable length (L) designed to fit popular tube outer diameters (Ø) of 33.7 mm, 42.4 mm, and 48.3 mm. To accommodate multiple pipe schedules, the insert core is engineered to fit tube wall thicknesses of 2.0 mm and 2.6 mm perfectly. Constructed from premium-grade alloys—including AISI 304, AISI 316, or Duplex SS 2205—this stainless steel end cap variant delivers exceptional durability and varying levels of corrosion resistance tailored to specific project environments. The component is available in both a subtle, matte satin finish and a highly reflective mirror polished finish to meet distinct aesthetic needs.
|
Category |
Part NO. | Ø |
H |
Material |
Surface |
Place of Production |
|
End Caps
|
B007.33.20 |
33.7×2.0mm |
77mm |
AISI 304,316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
|
End Caps |
B007.42.20 |
42.4×2.0mm |
80mm |
|||
|
End Caps |
B007.42.26 |
42.4×2.6mm |
80mm |
|||
|
End Caps |
B007.48.20 |
48.3×2.0mm |
85mm |
|||
|
End Caps |
B007.48.26 |
48.3×2.6mm |
85mm |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Design Style: Contemporary, Modern, European, Craftsman
5. Certificate: ISO9001:2015
6. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
7. Certificates: Material Certificates, Dimension Inspection Certificate
8. Lead Time : 60days batch production after end cap samples approved
9. Warranty Service: 1 Year
10. After-sales Service: Online Technical Support, Return And Replacement
Q1: What is the primary purpose of a Stainless Steel Handrail End?
A: A Stainless Steel Handrail End is designed to provide a clean architectural termination for raw pipe ends. It finishes a handrail run with a smooth, curved aesthetic rather than a sharp cutoff, which significantly improves user safety and prevents clothing or bags from getting hooked at the ends of balustrades.
Q2: Which stainless steel material grade is right for my project?
A: Selecting the appropriate alloy depends entirely on your specific environmental conditions and the required level of corrosion resistance:
AISI 304: Best suited for standard internal commercial applications, indoor staircases, and low-moisture settings.
AISI 316: Highly recommended for outdoor handrail installations, public walkways, and regions facing typical outdoor weathering or humidity.
Duplex SS 2205: Engineered for maximum durability in highly corrosive industrial environments, chemical processing plants, and severe coastal or marine applications.
Q3: Does this curved handrail end require welding to be connected?
A: No, welding is not strictly required. The component features a precise internal insertion sleeve that slides straight into a clean, deburred tube opening to establish a flush and stable mechanical fit. For light-duty installations, it can be tapped securely into place using a soft-faced rubber mallet. For high-traffic commercial projects or permanent outdoor applications, it is recommended to apply a high-strength structural metal adhesive to the insert sleeve for an airtight lock.
Q4: What tube dimensions and wall thicknesses are compatible with this handrail end?
A: These premium handrail fittings are engineered to seamlessly fit industry-standard architectural tubing outer diameters (Ø) of 33.7 mm, 42.4 mm, and 48.3 mm. They are precision-machined to accommodate internal wall thicknesses of either 2.0 mm or 2.6 mm. Please verify both the outer diameter and wall thickness of your handrail pipes before purchasing to ensure an optimal fit.
