Stainless Steel Railing Bracket

Stainless Steel Rail Brackets for welding are specialized mounting components designed to secure handrail systems to structural posts or walls via welded connection points. Engineered to be welded directly onto round metal tubing or flat surfaces, these weld-on railing brackets provide a permanent, ultra-rigid attachment for high-traffic walkways, industrial plants, and outdoor architectural handrails. The combination of weldable bases and an adjustable saddle stem delivers maximum load-bearing stability alongside clean, seamless aesthetics.

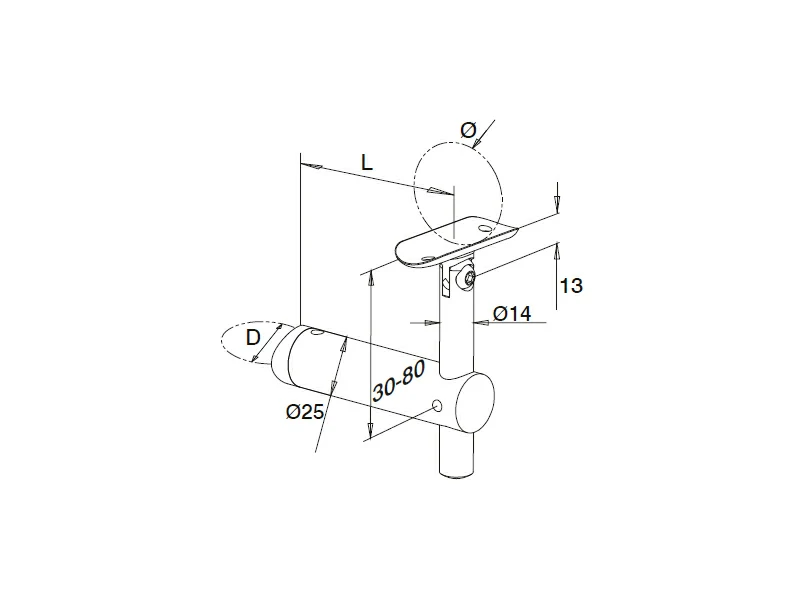

The structural design includes a heavy-duty Ø 25 mm horizontal mounting arm and a solid Ø 14 mm vertical support rod. The fitting features a horizontal extension length (L) of 85 mm from the wall or post connection to the handrail centerline, paired with a vertical height adjustment range of 30 mm to 80 mm from the main arm axis to the saddle. The upper saddle assembly incorporates a 13 mm joint mechanism and is engineered to fit flat-bottom handrails as well as Ø 42.4 mm and Ø 48.3 mm round tubes. Similarly, the weldable base connection (D) supports attachment to flat plates or Ø 42.4 mm Ø 48.3 mm structural posts.

Manufactured in premium AISI 304, AISI 316, and Duplex SS 2205 stainless steel grades, these handrail brackets offer outstanding structural strength and long-term corrosion resistance across harsh environments. Available in brushed satin (matte) and reflective mirror polished surface finishes, these essential handrail fittings ensure code compliance and structural reliability.
