The Wall Mount Flange is a high-quality, durable hardware component designed to securely mount architectural handrails to walls or posts. This heavy-duty component serves as a rigid base that holds the handrail securely in place, ensuring long-term structural stability and pedestrian safety. The base plate features four precision pre-drilled mounting holes for bolts or screws to firmly anchor the component to a flat surface. It provides clean aesthetic appeal alongside robust functionality in both residential and commercial handrail installations.

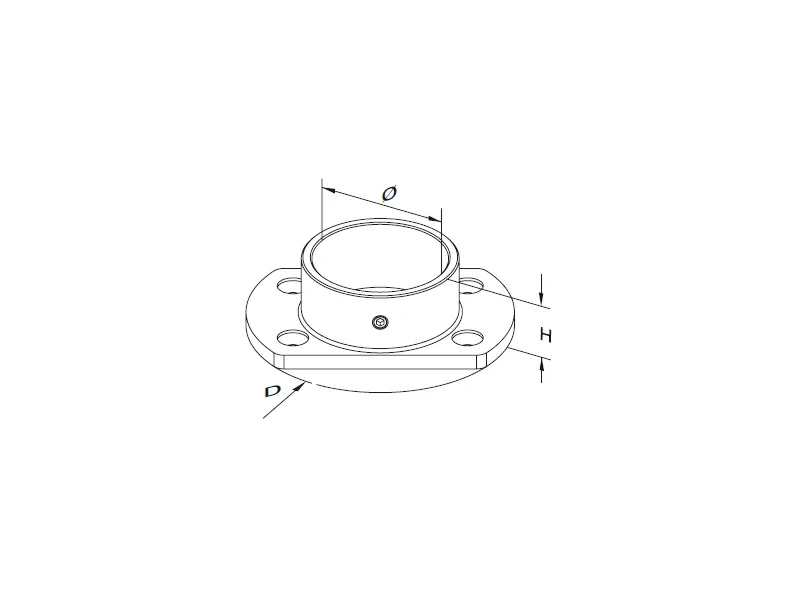

Engineered to fit industry-standard structural tubing, these premium stainless steel handrail fittings are available in diverse sizes to accommodate pipe outer diameters of 33.7mm, 42.4mm, and 48.3mm. The central collar, featuring a specific height (H) and total base width (D), is equipped with an integrated set screw hole to tighten and lock the pipe securely in place without welding. Depending on the application environment, you can choose between AISI 304, AISI 316, or Duplex SS 2205 materials to meet specific corrosion resistance and strength requirements. Additionally, options for elegant satin or mirror polished finishes allow for easy visual customization to match the surrounding style of any space.
|
Category |
Part NO. | D | Ø |
H |
Material |
Surface |
Place of Production |
|
Base & Covers
|
C002.33.00 |
85mm |
33.7mm |
30mm |
AISI 304,316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
|
Base & Covers |
C002.42.00 |
95mm |
42.4mm |
30mm |
|||
|
Base & Covers |
C002.48.00 |
100mm |
48.3mm |
35mm |
1. Tube Thickness: 2.0mm or 2.6mm
2. Manufacturing Process: Investment Casting + Precision Machining+Polishing
3. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
4. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
5. Installation Location: Flooring / Wall
6. Design Style: Contemporary, Modern, European, Craftsman
7. Certificate: ISO9001:2015
8. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
9. Certificates: Material Certificates, Dimension Inspection Certificate
10. Lead Time : 60days batch production after base flange samples approved
11. Warranty Service: 1 Year
12. After-sales Service: Online Technical Support, Return And Replacement
Q1. What is the primary role of a Wall Mount Flange within a railing system?
A: A Wall Mount Flange acts as a structural anchoring baseline in a railing system. It serves as a secure mounting base that terminates or fastens handrail sections directly onto flat wall surfaces or vertical structural posts, guaranteeing necessary rigid reinforcement for end-users.
Q2. How do I choose the correct stainless steel grade for my installation?
A: Material choice depends directly on localized environmental conditions and required corrosion resistance:
AISI 304: Best for standard indoor layouts and dry commercial spaces.
AISI 316: Highly recommended for typical outdoor scenarios exposed to rain and ambient moisture.
Duplex SS 2205: Engineered for maximum durability in extreme industrial contexts or coastal applications facing heavy salt air exposure.
Q3: What is the purpose of the four holes on the base plate and the single hole on the collar?
A: The four pre-drilled base plate holes are designed for bolts or screws to firmly anchor the flange to a secure wall or post. The single hole on the raised collar houses a small set screw, which is tightened during assembly to clamp down, lock, and hold the handrail pipe permanently in place without requiring any on-site welding.
Q4: What standard round tube sizes can this flange accommodate?
A: This component is precision-machined to fit standard architectural round tubing outer diameters of 33.7mm, 42.4mm, and 48.3mm. Please confirm the outer diameter of your handrail pipes before purchasing to ensure a perfect mechanical fit.
