Stainless Steel 25mm Standoff Glass Holder Flat Head

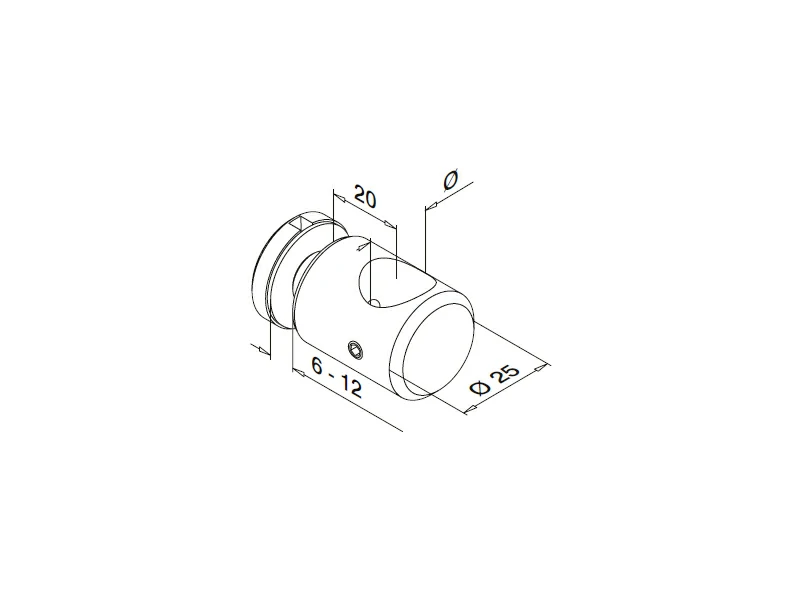

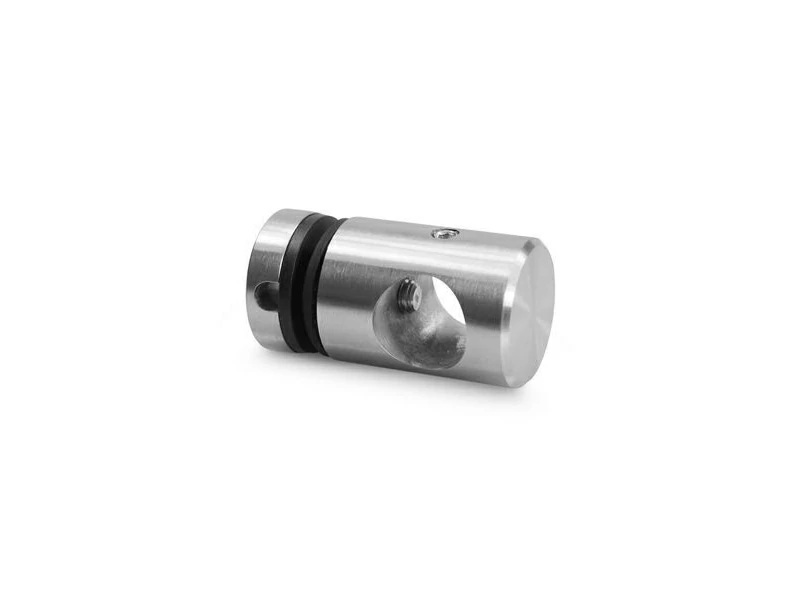

Glass Holder (Standoff) Ø25 mm / Flat Head

The 25mm Standoff is a precision-engineered glass holder designed to secure glass panels while mounting them a short distance away from a wall, floor, or other structural surface. Featuring a streamlined flat head design and a 25mm diameter, this standoff provides secure, high-strength support without distracting from the glass itself. It is specifically designed to accommodate standard glass panels with a thickness typically ranging from 6 mm to 12 mm. Crafted from high-grade Stainless Steel (AISI 304, 316 or Duplex SS 2205), this 25mm Standoff offers superior corrosion resistance, making it ideal for both interior and exterior applications, including glass railings, canopies, and partitions.bIt is available in Satin or Mirror Polish finishes to complement contemporary design aesthetics.

Category	Part NO.	Ø	Glass Compatibility	Mounting Style	Material	Surface
Glass Holders	GH007.25.12	12mm	6–12 mm thickness	Flat-head standoff holder	AISI 304,316 or Duplex SS 2205	Satin or Mirror polished
Glass Holders	GH007.25.16	16mm	6–12 mm thickness	Flat-head standoff holder	AISI 304,316 or Duplex SS 2205	Satin or Mirror polished

Glass Standoff Info:

Manufacturing Process: Investment Casting + Precision Machining+Polishing
Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
Installation Location: Flooring
Design Style: Contemporary, Modern, European, Craftsman
Certificate: ISO9001:2015
Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
Certificates: Material Certificates, Dimension Inspection Certificate
Lead Time : 60days for samples making +60-90days batch production after glass standoff samples approved
Warranty Service: 1 Year
After-sales Service: Online Technical Support, Return And Replacement

FAQ:

Q1: What is the main benefit of the 25mm Standoff flat head design?
A: The flat head provides a low-profile, clean aesthetic that blends seamlessly with the glass, offering a contemporary alternative to dome-head designs. It ensures maximum glass contact and a smooth, finished appearance.
Q2: Which material is best for exterior applications?
A: For exterior or marine environments, AISI 316 Stainless Steel is highly recommended for its superior resistance to chlorides and pitting corrosion. For high-load, extreme environments, Duplex SS 2205 is often the optimal choice. AISI 304 is suitable for most interior applications.
Q3: Can the 25mm Standoff be used with both 6mm and 12mm glass?
A: Yes, the 25mm Standoff is specifically designed to accommodate a glass thickness typically ranging from 6 mm to 12 mm, utilizing appropriate gaskets and hardware to ensure a secure and centered fit for the glass panel.
Q4: Is the 25mm Standoff suitable for load-bearing glass installations?
A: Yes. When installed correctly, it provides sturdy support for standard architectural glass applications.
