Glass Holder (Standoff) Ø50 mm / Dome Head

The 50mm Standoff is a premium, low-profile mounting solution designed for securely fastening glass panels to flat surfaces like walls or structural posts. Featuring a wide 50mm diameter and a sleek Dome Head cap, this glass standoff provides a robust, finished look perfect for contemporary glass railings, balconies, and signage. The galss standoff is engineered for durability, being typically constructed from high-quality stainless steel (AISI 304, 316, or Duplex 2205). With a compact 10mm disc thickness, it holds glass panels between 8mm and 17mm thick, ensuring a secure and minimally projected fixture for demanding architectural projects. Available in satin or mirror polished finishes, this dome-head standoff adds both function and aesthetic appeal to modern railing, partition, and façade systems.

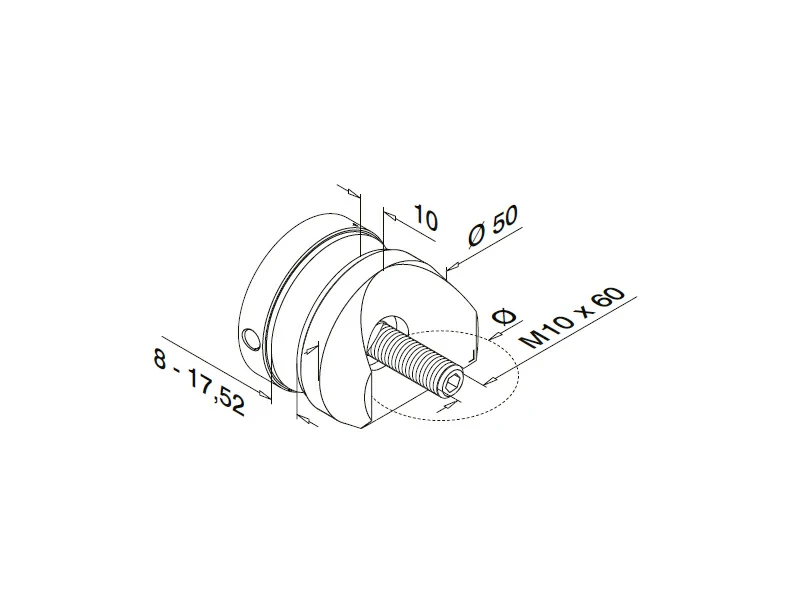

Category	Part NO.	H	Ø	Diameter	Thread Size	Glass Thickness Range	Material	Surface
Glass Holders	GH014.50.42	10mm	42.4mm	Ø50 mm	M10 threaded stud	8mm - 17mm	AISI 304, 316 or Duplex SS 2205	Satin or Mirror polished
Glass Holders	GH014.50.48	10mm	48.3mm	Ø50 mm	M10 threaded stud	8mm - 17mm	AISI 304, 316 or Duplex SS 2205	Satin or Mirror polished

Glass Standoff Basic Info:

Manufacturing Process: Investment Casting + Precision Machining+Polishing
Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
Installation Location: Flooring
Design Style: Contemporary, Modern, European, Craftsman
Certificate: ISO9001:2015
Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
Certificates: Material Certificates, Dimension Inspection Certificate
Lead Time : 60days for samples making +60-90days batch production after glass standoff samples approved
Warranty Service: 1 Year
After-sales Service: Online Technical Support, Return And Replacement

FAQ:

Q1: What is the benefit of the Dome Head on this 50mm Standoff?
A: The Dome Head provides an aesthetically clean, rounded finish that is safer than square or flat caps by reducing the risk of snagging. It also contributes to the modern look of the glass standoff system.
Q2: Which stainless steel grade should I select for maximum durability?
A: For general interior or non-coastal exterior use, AISI 304 is standard. For outdoor environments, coastal areas, or chemical exposure, AISI 316 provides superior corrosion resistance. Duplex SS 2205 is the choice for high-strength, extreme-stress applications.
Q3: Does the 10mm disc thickness limit the glass thickness?
A: No. The 10mm disc thickness (or 'H' dimension) is the fixed distance the glass sits from the wall. The clamping mechanism within the 50mm Standoff is designed to hold glass panels anywhere from 8mm to 17mm thick.
Q4: Is the mounting stud included with the standoff?
A: Yes. The 50mm Standoff system includes the necessary M10x60 threaded stud designed to be anchored into your post or wall.
