Suit for 12mm or 15mm Tempered Glass
The Core Drilled Spigot is the ultimate hardware solution for constructing sleek, modern frameless glass railing systems. Designed with a minimalist round profile, this high-performance glass spigot offers an elegant yet exceptionally secure method to mount 12mm or 15mm tempered glass panels.
Crafted from premium Grade 316 stainless steel or Duplex 2205, this core-drilled unit delivers superior corrosion resistance, making it ideal for both indoor and outdoor applications, including balustrades, balconies, pool fences, and staircases. The core-drilled installation mechanism anchors directly into the substrate, providing exceptional structural stability and an incredibly high load-bearing capacity. These essential handrail fittings are supplied as a complete installation kit and are available in various premium finishes—such as brushed satin, polished, or matte—to seamlessly match your architectural design.

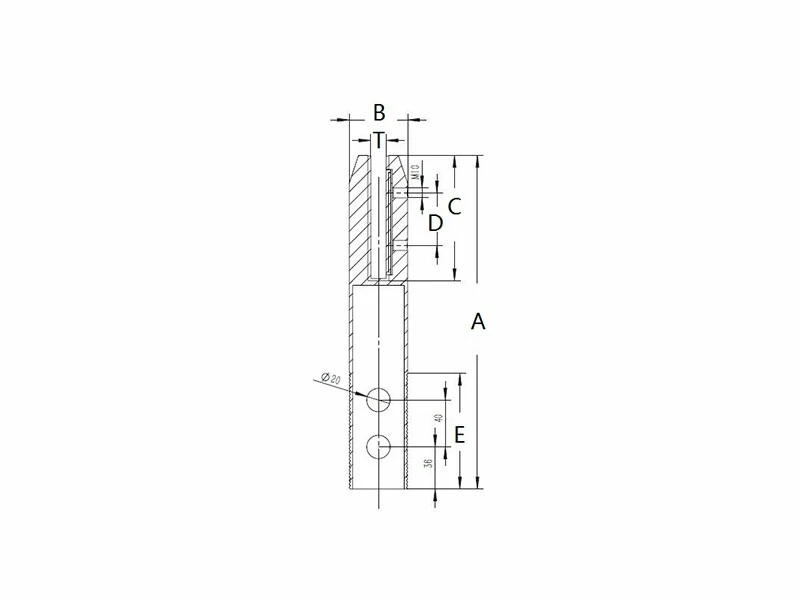

| Category | Part NO. | A | B | C | D | E | T | Material | Surface |
| Glass Fencing Spigots |
SE2412 |
285mm | 50mm | 107mm | 45mm | 100mm | 12mm | Stainless Steel 316 / duplex 2205 |
Satin Polish, Mirror Polish, Matt Black |
| Glass Fencing Spigots |
SE2415 |
285mm | 50mm | 107mm | 45mm | 100mm | 15mm |
Manufacturing Process: Investment Casting + Precision Machining+Polishing
Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
Installation Location: Flooring
Design Style: Contemporary, Modern, European, Craftsman
Certificate: ISO9001:2015
Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
Certificates: Material Certificates, Dimension Inspection Certificate
Lead Time : 60days batch production after glass spigot samples approved
Warranty Service: 1 Year
Q1. What components are included in the Core Drilled Spigot kit?
A: Each installation kit comes complete with a structural spigot post, a matching round cover plate to hide the core hole, along with the necessary internal gaskets and packers to secure the glass panel safely.
Q2. What glass thicknesses is this glass spigot compatible with?
A: This round core-drilled fitting is specifically engineered to hold and secure 12mm or 15mm tempered glass panels.
Q3. Do I need to drill holes into the glass panels?
A: No. The glass panel is held firmly in place within the stainless steel spigot channel using a high-strength friction clamping system with gaskets, eliminating the need for pre-drilled holes in the glass.
Q4.Is this product suitable for harsh outdoor or coastal environments?
A: Yes. Because it is manufactured from high-quality Duplex 2205 or Grade 316 stainless steel, it provides maximum defense against rust, corrosion, and environmental wear in exterior or pool-side settings.
Q5. What surface finish options are available for these handrail fittings?
A: To complement your design aesthetic, the spigots can be customized in multiple elegant surface treatments, including brushed satin, brilliant mirror-polished, or contemporary matte finishes.
Inquiry Glass Spigots in other material or surface treatment, please contact us.
