The Straight Handrail Bracket is a heavy-duty stainless steel support fitting designed for direct, straightforward mounting of handrails to walls, posts, or flat structural surfaces. Engineered for residential staircases, commercial hallways, and industrial walkways, this bracket provides a firm, rigid anchor point that ensures high structural stability and code compliance. Its simple vertical post geometry delivers a clean, minimalistic aesthetic that integrates effortlessly into contemporary architectural handrail systems.

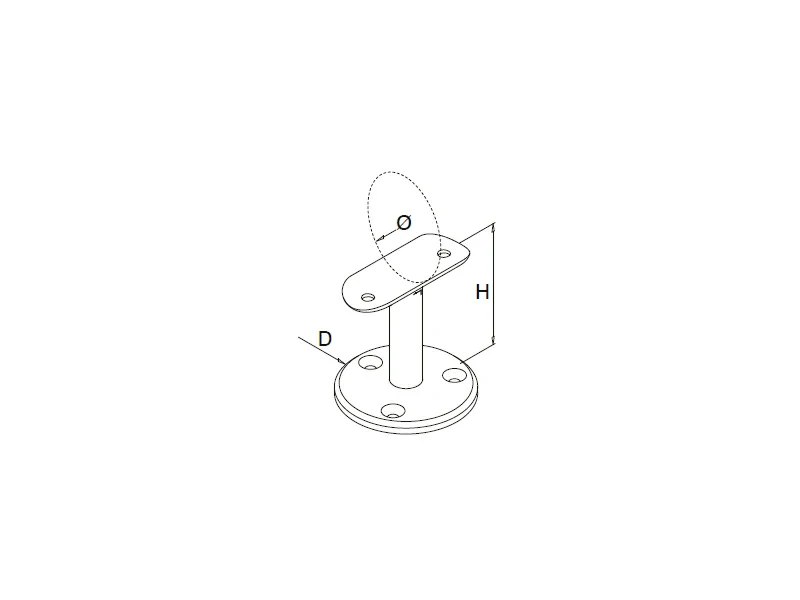

Constructed with a ∅ 60 mm round base flange (D), the bracket features three pre-drilled, countersunk screw holes for reliable mounting to timber studs, concrete walls, or metal balustrade posts. The central vertical post maintains a fixed height offset of H = 60 mm from the base plate to the upper saddle. The top saddle plate is engineered to fit flat-bottom handrail bars as well as standard cylindrical tubing with outside diameters of ∅ 42.4 mm and ∅ 48.3 mm.
Manufactured in premium AISI 304, AISI 316, and Duplex SS 2205 stainless steel grades, these durable handrail brackets offer superior resistance against corrosion and wear across indoor, outdoor, and marine environments. Available in brushed satin matte and mirror polished surface finishes, these essential handrail fittings combine long-lasting service life with low-maintenance performance.
|
Category |
Part NO. | D |
Ø |
H |
Material |
Surface |
Place of Production |
|
Handrail Brackets |
E017.00.00 |
60mm |
Flat |
60mm |
AISI 304,316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
| Handrail Brackets |
E017.00.42 |
60mm | 42.4mm | 60mm | |||
| Handrail Brackets |
E017.00.48 |
60mm | 48.3mm | 60mm |
1. Advantage: Easier and quicker installatio; Easier cleaning and maintenance
2. Manufacturing Process: Investment Casting + Precision Machining+Polishing
3. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Warehouse, Workshop, Park, etc.
4. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
5. Installation Location: Wall / Post
6. Design Style: Contemporary, Modern, European, Craftsman
7. Certificate: ISO9001:2015
8. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
9. Certificates: Material Certificates, Dimension Inspection Certificate
10. Lead Time : 45days for samples making +50days batch production after handrail bracket samples approved
11. Warranty Service: 1 Year
12. After-sales Service: Online Technical Support, Return And Replacement
Q1: What is the main advantage of using a Straight Handrail Bracket?
A: A Straight Handrail Bracket provides a direct, vertical load path between the mounting surface and handrail tube, delivering high structural rigidity and quick alignment for straight runs and top-post mounts.
Q2: How is the bracket fixed to the wall or post?
A: The ∅ 60 mm base plate features pre-drilled countersunk holes that receive heavy-duty mounting screws or anchors, ensuring a flush surface fit on wood studs, masonry walls, or metal posts.
Q3: What handrail tube profiles fit the top saddle?
A: The saddle plate accommodates flat-bottom timber or stainless steel handrails, as well as standard round architectural tubing with outer diameters of ∅ 42.4 mm and ∅ 48.3 mm.
Q4: Which stainless steel material grade should I specify?
A: Material selection depends on environmental conditions:
AISI 304: Best suited for indoor residential stairways, office hallways, and climate-controlled commercial spaces.
AISI 316: Standard specification for general outdoor walkways, public staircases, and humid environments requiring weather resistance.
Duplex SS 2205: Engineered for harsh marine, coastal, and chemical industrial environments requiring high yield strength and pitting corrosion resistance.
