The Handrail Bracket for Tube (Tube to Tube) is a stainless steel mounting component designed to connect horizontal handrail pipes directly to vertical supporting posts or adjacent handrail tubing. Engineered to seamlessly join sections of handrail tubing, this bracket provides structural stability across staircases, balustrades, walkways, and commercial railing systems. Featuring a height-adjustable vertical stem, it allows installers to align and support handrail pipes accurately across variable site elevations and sloped transitions.

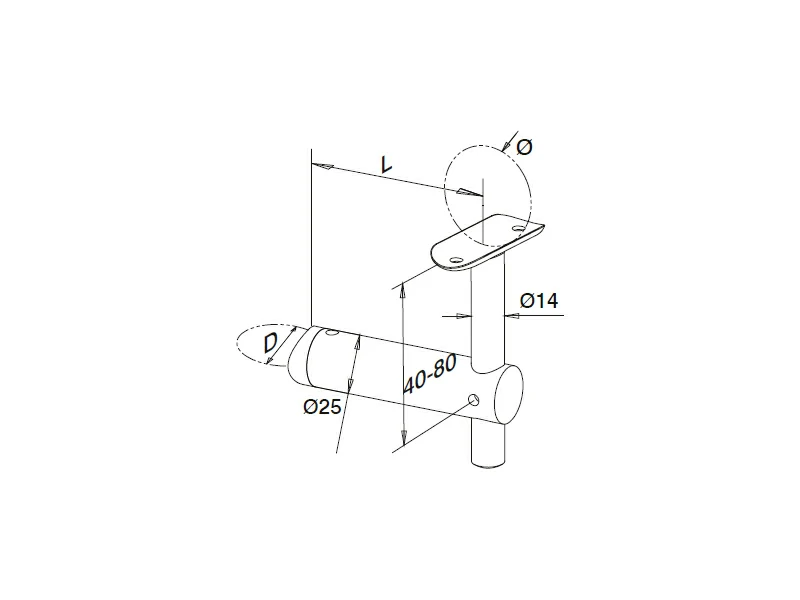

Constructed with a Ø 25 mm main horizontal extension stem and a solid Ø 14 mm vertical support rod, this adjustable fitting features a horizontal extension length (L) of 85 mm from the mounting tube centerline to the vertical rod axis. The bracket provides a vertical height adjustment range of 40 mm to 80 mm (measured from the stem centerline to the saddle base), allowing fine-tuning during installation. Both the base connection point (D) and the upper saddle plate (Ø) are compatible with flat surfaces as well as standard round tubing measuring Ø 42.4 mm and Ø 48.3 mm.
Manufactured in premium AISI 304, AISI 316, and Duplex SS 2205 stainless steel grades, these high-performance handrail brackets deliver corrosion resistance and load-bearing strength across indoor, outdoor, and marine environments. Available in brushed satin (matte) and mirror polished finishes, these specialized handrail fittings satisfy architectural building standards while maintaining a clean appearance.
|
Category |
Part NO. | D | L | Ø |
Material |
Surface |
Place of Production |
|
Handrail Brackets |
E010.00.00 |
Flat |
85mm |
Flat |
Stainless Steel 304 / 316 |
Satin or Mirror polished |
Shandong, China |
| Handrail Brackets |
E010.00.42 |
Flat |
85mm |
42.4mm |
|||
| Handrail Brackets |
E010.00.48 |
Flat |
85mm |
48.3mm |
|||
| Handrail Brackets |
E010.42.00 |
42.4mm |
85mm |
Flat |
|||
| Handrail Brackets |
E010.42.42 |
42.4mm | 85mm |
42.4mm |
|||
| Handrail Brackets |
E010.42.48 |
42.4mm | 85mm |
48.3mm |
|||
| Handrail Brackets |
E010.48.00 |
48.3mm | 85mm |
Flat |
|||
| Handrail Brackets |
E010.48.48 |
48.3mm | 85mm |
48.3mm |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Installation Location: Post / Tube
5. Design Style: Contemporary, Modern, European, Craftsman
6. Certificate: ISO9001:2015
7. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
8. Certificates: Material Certificates, Dimension Inspection Certificate
9. Lead Time : 60days batch production after handrail bracket samples approved
10. Warranty Service: 1 Year
11. After-sales Service: Online Technical Support, Return And Replacement
Q1: What is the main application of a tube-to-tube Handrail Bracket for Tube?
A: Unlike standard wall-mounted brackets, this fitting connects an upper handrail pipe directly to a vertical post or supporting structural tube, providing a secure joint without field welding.
Q2: How does the vertical height adjustment mechanism work?
A: The Ø 14 mm vertical rod slides within the Ø 25 mm horizontal stem, allowing height adjustments between 40 mm and 80 mm. Once positioned, internal set screws lock the rod securely at the desired height.
Q3: Which tube diameters are compatible with the base and top saddle?
A: Both the mounting base (D) and top saddle accommodate flat-bottom profiles as well as standard cylindrical railing tubes with outside diameters of Ø 42.4 mm and Ø 48.3 mm.
Q4: Which stainless steel material grade should I specify for my application?
A: Selection depends on environmental factors:
AISI 304: Best suited for climate-controlled indoor residential and commercial settings.
AISI 316: Ideal for general outdoor walkways, balconies, and humid environments requiring weather resistance.
Duplex SS 2205: Engineered for harsh coastal, marine, and industrial environments exposed to salt spray or aggressive chemicals.
