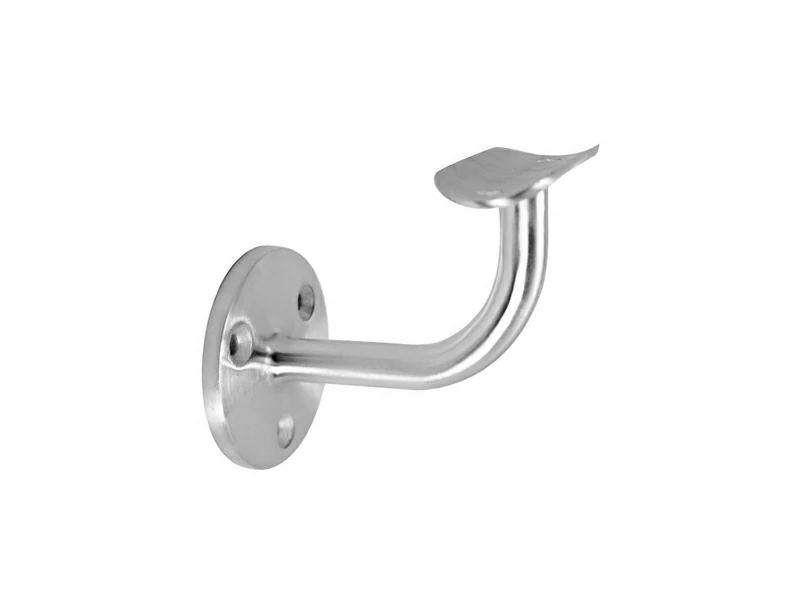

The Stainless Steel Wall Rail Brackets are non-adjustable, high-strength wall-to-tube mounting components engineered to anchor handrail pipes firmly to structural walls or vertical surfaces. Designed with a solid Ø 12 mm curved support rod and a circular wall flange, these brackets deliver maximum structural rigidity, ensuring safe weight distribution across staircases, balconies, walkways, and ramps.
Featuring a precision-contoured saddle, these wall brackets fit standard architectural tubing sizes of Ø 42.4 mm and Ø 48.3 mm. Engineering parameters include a overall length/projection (L) of 85 mm, a mounting offset height of 56 mm from the central axis to the saddle, and a wall base flange outer diameter (D) of 60 mm equipped with multiple countersunk fixing holes for flush screw anchoring.
Manufactured in premium AISI 304, AISI 316, and Duplex SS 2205 stainless steel material options with fine brushed satin (matte) or mirror polished surface treatments, these versatile Handrail Brackets provide dependable load capacity, long-term durability, and sleek visual appeal. As essential handrail fittings, they satisfy rigorous building safety standards for both interior and exterior architectural balustrade systems.
|
Category |
Part NO. | D | L | Ø |
Material |
Surface |
Place of Production |
|
Handrail Brackets |
E001.00.00 |
60mm | 85mm |
Flat |
AISI 304,316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
| Handrail Brackets |
E001.00.42 |
60mm | 85mm |
42.4mm |
|||
| Handrail Brackets |
E001.00.48 |
60mm | 85mm |
48.3mm |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Installation Location: Wall
5. Design Style: Contemporary, Modern, European, Craftsman
6. Certificate: ISO9001:2015
7. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
8. Certificates: Material Certificates, Dimension Inspection Certificate
9. Lead Time : 60days batch production after handrail bracket samples approved
10. Warranty Service: 1 Year
11. After-sales Service: Online Technical Support, Return And Replacement
Q1: What are the key technical dimensions of this Stainless Steel Wall Rail Bracket?
A: According to engineering specifications:
Total Length / Projection (L): 85 mm (distance from wall base to front edge)
Saddle Height Offset: 56 mm (vertical height from support arm axis to top saddle plate)
Base Flange Outer Diameter (D): 60 mm circular mounting base with countersunk screw holesSupport Arm Diameter (Ø): Ø 12 mm solid curved steel rod
Q2: Which handrail pipe sizes are compatible with these brackets?
A: These non-adjustable wall-to-tube brackets are engineered to support standard architectural round pipes with outside diameters of Ø 42.4 mm (1.67 in) and Ø 48.3 mm (1.90 in).
Q3: Which stainless steel material grade should I specify for my installation?
A: Material choice depends on environmental exposure:
AISI 304: Recommended for dry, climate-controlled indoor residential and commercial environments.
AISI 316: Ideal for general outdoor walkways, balconies, decks, and humid indoor spaces requiring enhanced corrosion resistance.
Duplex SS 2205: Engineered for harsh marine environments, coastal areas exposed to salt fog, and heavy industrial settings needing extreme yield strength.
Q4: What surface finishes are available for these Handrail Brackets?
A: You can select between a practical satin finish (brushed matte style that conceals fingerprints and light surface wear in high-traffic areas) or a reflective mirror polished finish (offering superior surface smoothness to minimize salt, grime, and atmospheric dirt adhesion).
