The SS Railing Bracket for Welding is a heavy-duty stainless steel handrail mounting component designed for wall-mounted round handrail systems in high-traffic, commercial, and industrial environments. Featuring a weldable top saddle or structural frame attachment, this bracket provides permanent, rigid support for handrails mounted at variable angles along staircases, ramps, and walkways. By combining a heavy-duty threaded wall anchor mechanism with an adjustable height saddle, it allows precise positioning and alignment during installation.

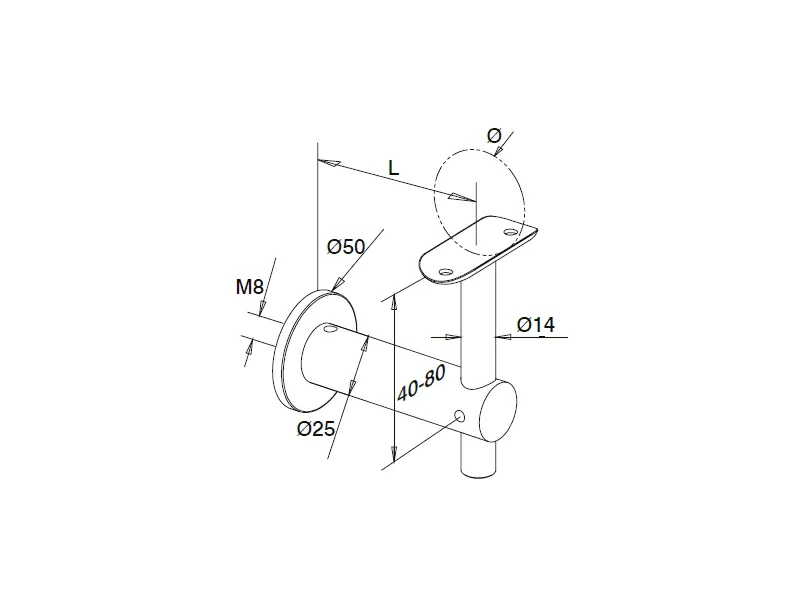

The structural assembly consists of a Ø 50 mm wall flange/rosette paired with an M8 metric mounting thread for anchored attachment to masonry or steel backing. A Ø 25 mm horizontal main supporting tube extends L = 85 mm from the wall surface to the handrail centerline, providing generous hand clearance. The Ø 14 mm vertical rod offers a height adjustment range of 40 mm to 80 mm from the horizontal arm center to the saddle plate. The upper mounting saddle plate supports flat-bottom profiles as well as standard round tubing measuring Ø 42.4 mm and Ø 48.3 mm.
Manufactured in AISI 304, AISI 316, and Duplex SS 2205 stainless steel material grades, these high-performance handrail brackets deliver excellent structural integrity and long-term resistance to corrosion. Available in brushed satin and mirror polished surface finishes, these specialized handrail fittings satisfy strict safety codes while delivering a modern aesthetic.
|
Category |
Part NO. | Ø | L |
Material |
Surface |
Place of Production |
|
Handrail Brackets |
E012.00.00 |
Flat |
85mm |
Stainless Steel 304 / 316 |
Satin or Mirror polished |
Shandong, China |
| Handrail Brackets |
E012.00.42 |
42.4mm | 85mm | |||
| Handrail Brackets |
E012.00.48 |
48.3mm | 85mm |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Installation Location: Wall / Post
5. Design Style: Contemporary, Modern, European, Craftsman
6. Certificate: ISO9001:2015
7. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
8. Certificates: Material Certificates, Dimension Inspection Certificate
9. Lead Time : 60days batch production after handrail bracket samples approved
10. Warranty Service: 1 Year
11. After-sales Service: Online Technical Support, Return And Replacement
Q1: What makes this SS Railing Bracket for Welding suitable for heavy-duty applications?
A: The combination of an M8 metric wall stud, a solid Ø 25 mm horizontal arm, and a weldable top saddle creates a permanent, ultra-rigid connection capable of handling heavy structural loads and vibration in public or industrial spaces.
Q2: How do installers adjust the height on this bracket?
A: The Ø 14 mm vertical rod slides within the Ø 25 mm horizontal stem, allowing height adjustments between 40 mm and 80 mm. Once aligned, internal set screws lock the rod in place prior to final handrail welding or securing.
Q3: Which handrail tube profiles are compatible with the saddle plate?
A: The top saddle is contoured to accommodate flat-bottom handrail bars as well as standard cylindrical tubing with outside diameters of Ø 42.4 mm and Ø 48.3 mm.
Q4: How do I choose the correct stainless steel grade for my environment?
A: Grade selection depends on environmental factors:
AISI 304: Best for climate-controlled indoor commercial buildings, schools, and offices.
AISI 316: Designed for general outdoor walkways, balconies, and humid environments requiring weather resistance.
Duplex SS 2205: Engineered for marine environments, coastal boardwalks, and chemical facilities exposed to severe corrosion hazards.
