Stainless Steel Side Fix Baluster Bracket for Tube

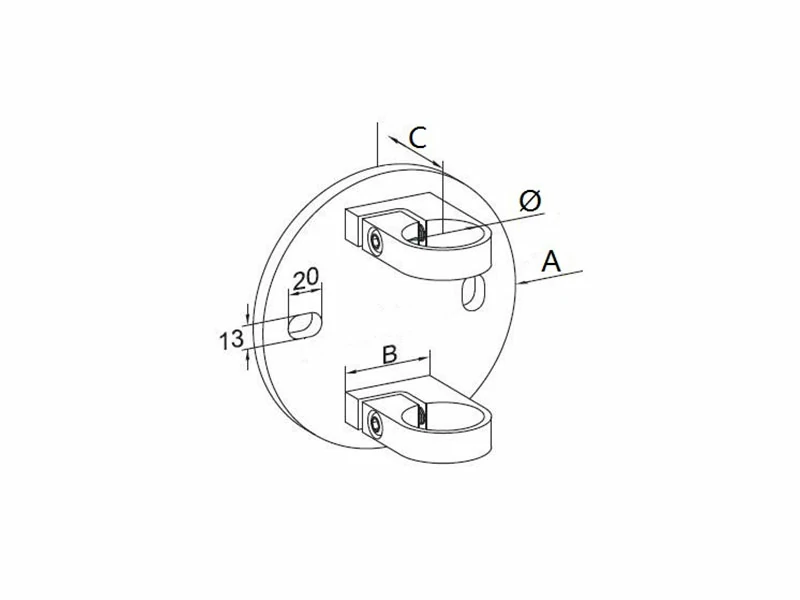

Side Fix Baluster Bracket Structure

Baluster Bracket

The Stainless Steel Side Fix Baluster Bracket (∅ 50.8 mm) is a heavy-duty fascia-mount fitting engineered to anchor vertical round balustrade posts securely to the side of walls, deck slabs, or staircase stringers. Designed for modern glass and tubular railing systems, this side-mount assembly preserves full walkway and stair tread width by eliminating top-surface base plates while providing a clean, architectural finish.

Featuring a solid ∅ 150 mm (5.91 “) circular mounting flange (A) with a textured knurled perimeter edge, the bracket projects the vertical post to a 100 mm wall offset/standoff distance (C) from the mounting face to the post centerline. Dual split-ring clamping collars (∅ 50.8 mm inner diameter) tighten securely around standard round posts using recessed hex socket screws, enabling precise on-site vertical height leveling before locking the post rigidly in place. Two 13 mm × 20 mm slotted mounting holes allow minor horizontal alignment adjustments during anchor installation. Precision-manufactured from high-grade stainless steel options—AISI 304, AISI 316, and Duplex SS 2205—and offered in brushed satin or mirror-polished finishes, these durable Baluster Brackets and handrail fittings deliver structural reliability across residential and commercial projects.

Category

Part NO.
Fit for Tube

(mm)

A

(mm)

B

(mm)

C

(mm)

Ø

(mm)

Material

Surface

Place of Production

Handrail Bracket

F0150

Ø50.8
150

55

100

50.8

AISI 304, 316 or Duplex SS 2205

Satin or Mirror polished

Shandong, China



Baluster Bracket Info:

1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Warehouse, Workshop, Park, Farmhouse, Courtyard, Kitchen, Bathroom, Home Office, Living Room, Bedroom, etc.
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Installation Location: Wall, Deck Slabs, or Staircase Stringers
5. Design Style: Contemporary, Modern, European, Craftsman
6. Certificate: ISO9001:2015
7. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects, Others
8. Certificates: Material Certificates, Dimension Inspection Certificate
9. Lead Time : 60days batch production after baluster bracket samples approved
10. Warranty Service: 1 Year
11. After-sales Service: Online Technical Support, Return And Replacement



FAQ:

Q1: What is the primary function of a Side Fix Baluster Bracket?
A: A Side Fix Baluster Bracket mounts a vertical round post (∅ 50.8 mm) to the vertical side face of a wall, deck rim, or stair stringer, keeping the walking surface unobstructed while providing rigid lateral post support.

Q2: How does the bracket secure and adjust the vertical baluster post?
A: The round post slides through two split-ring clamping collars that allow smooth vertical height adjustment; once positioned, tightening the hex socket bolts locks the post firmly in place. Additionally, the two 13 mm × 20 mm slotted flange holes allow minor horizontal alignment during anchor fastening.

Q3: What is the standoff distance from the mounting surface to the post?
A: The bracket provides a 100 mm wall offset (C) measured from the rear mounting face of the flange to the center axis of the ∅ 50.8 mm post tube.

Q4: Which stainless steel material grade is recommended for outdoor or coastal applications?
A: Select AISI 316 or Duplex SS 2205 stainless steel for outdoor, coastal, or severe marine environments to ensure maximum protection against chloride pitting, salt spray, and atmospheric oxidation.
