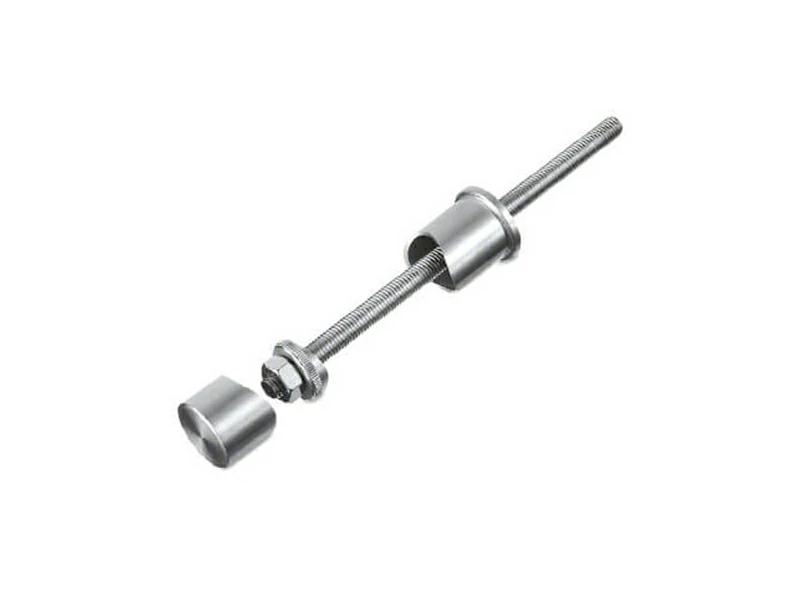

Stainless Steel Side Fix Post Mount Bracket

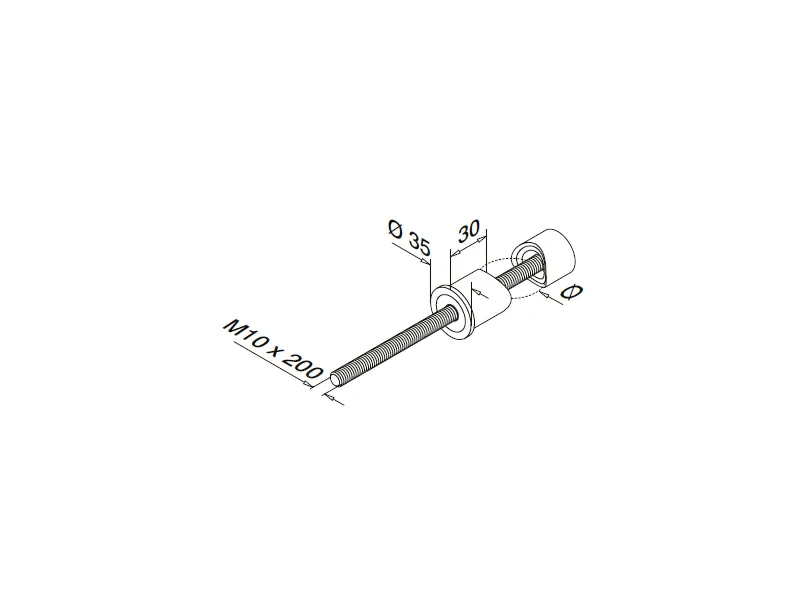

Side Fix Post Mount Bracket Structure

Side Fix Baluster Bracket

The Stainless Steel Side Fix Post Mount Bracket is a heavy-duty side-mount anchor fitting designed to attach vertical baluster posts laterally to walls, stair stringers, or mezzanine structural edges. By providing a high-strength anchoring connection directly through structural substrates, this standoff fitting secures balusters firmly while preserving floor space and delivering a minimalist architectural appearance.

Featuring an M 10 × 200 mm heavy-duty threaded anchor stud, this standoff bracket includes a ∅ 35 mm base collar and delivers a fixed standoff distance of 30 – 31 mm between the wall face and the baluster post. The contoured front radius saddle is engineered to mate seamlessly against round baluster tubing (∅ = 42.4mm / 48.3mm). Precision-machined from high-grade stainless steel options—AISI 304, AISI 316, and Duplex SS 2205—and available in brushed satin (matte) or mirror-polished (shiny) finishes, these specialized Baluster Brackets serve as an essential anchor component within comprehensive Railing Fittings selections.

Category

Part NO.

Ø

Material

Surface

Place of Production

Baluster Brackets

I006.30.42

42.4mm

AISI 304, 316 or Duplex SS 2205

Satin or Mirror polished

Shandong, China

Baluster Brackets

I006.30.48

48.3mm



Handrail Bracket Info:

1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Office Building, Hospital, School, Leisure Facilities, Supermarket, Warehouse, Workshop, Park, Farmhouse, Courtyard, Bathroom etc.
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Certificate: ISO9001:2015
5. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
6. Certificates: Material Certificates, Dimension Inspection Certificate
7. Lead Time : 35days for samples making +45days batch production after baluster bracket samples approved
8. Warranty Service: 3 Years
9. After-sales Service: Online Technical Support, Return And Replacement



FAQ:

Q1: What is the main function of a Side Fix Post Mount Bracket?
A: A Side Fix Post Mount Bracket provides a heavy-duty standoff anchor point to attach vertical baluster posts to the side face of walls, stair stringers, or balconies.

Q2: What thread size and length are supplied with this mounting bracket?
A: This model is equipped with an M 10 × 200 mm threaded rod designed for deep structural anchoring into timber, steel, or masonry substrates.

Q3: What standoff clearance does this bracket provide?
A: The bracket provides a 30 - 31 mm standoff clearance distance between the structural mounting face and the baluster post.

Q4: Which stainless steel material grade is recommended for outdoor or marine use?
A: Select AISI 316 or Duplex SS 2205 stainless steel for outdoor, coastal, or marine environments to ensure maximum resistance against salt spray, atmospheric rust, and chloride pitting.
