The Stainless Steel Baluster Corner Bracket is an adjustable, heavy-duty corner fitting designed to connect and secure vertical balusters or posts across complex architectural turns and variable corner angles. Engineered to enable smooth, continuous directional changes in staircases, balcony perimeters, and multi-angled balustrade configurations, this hinged bracket provides structural integrity while delivering a clean, modern aesthetic.

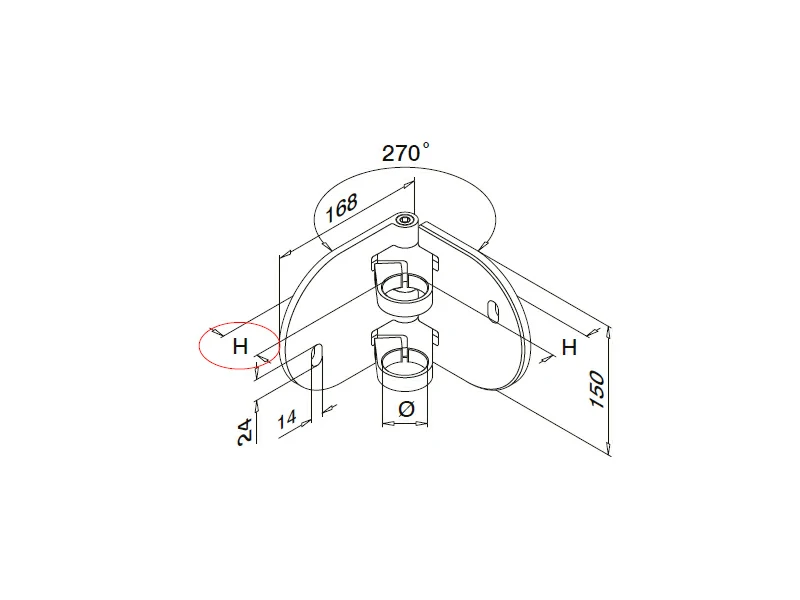

Featuring a robust 150 mm hinge height and a curved clamping plate length of 168 mm, this corner assembly provides an extensive 270 ° rotation and opening angle for maximum field adjustability. The side plate profile accommodates a panel thickness (H) of 45 mm and incorporates 14 mm × 24 mm cutout slots for panel mounting. The integrated central sleeve clamps hold round baluster post tubes with outer diameters (Ø) of 42.4 mm or 48.3 mm. Precision-manufactured from high-grade stainless steel options—AISI 304, AISI 316, and Duplex SS 2205—and available in brushed satin (matte) or mirror-polished (shiny) finishes, these versatile Baluster Brackets serve as an essential corner connection component within comprehensive railing fittings catalog offerings.
|
Category |
Part NO. |
H |
Ø |
Material |
Surface |
Place of Production |
|
Baluster Brackets |
I004.45.42 |
45mm |
42.4mm |
AISI 304, 316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
|
Baluster Brackets |
I004.45.48 |
45mm |
48.3mm |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Office Building, Hospital, School, Leisure Facilities, Supermarket, Warehouse, Workshop, Park, Farmhouse, Courtyard, Bathroom etc.
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Installation Location: Wall
5. Certificate: ISO9001:2015
6. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
7. Certificates: Material Certificates, Dimension Inspection Certificate
8. Lead Time : 35days for samples making +45days batch production after baluster bracket samples approved
10. Warranty Service: 3 Years
11. After-sales Service: Online Technical Support, Return And Replacement
Q1: What is the primary function of a Baluster Corner Bracket?
A: A Baluster Corner Bracket joins vertical baluster posts at corner intersections, allowing for smooth, continuous direction changes and precise angular adjustment along staircases and walkways.
Q2: What is the maximum adjustability angle provided by this bracket?
A: The central hinge joint provides up to a 270 ° rotation angle, making it easy to accommodate inside corners, outside corners, and non-standard architectural angles on site.
Q3: What baluster pipe sizes are compatible with this corner bracket?
A: The central mounting clamps are engineered to secure standard round stainless steel balusters with outer diameters of 42.4 mm and 48.3 mm.
Q4: Which stainless steel material grade is recommended for outdoor or marine use?
A: Select AISI 316 or Duplex SS 2205 stainless steel for outdoor, coastal, or marine environments to ensure maximum protection against chloride pitting, salt spray, and atmospheric rust.
