The Handrail Bracket Stainless with Coach Screw is a heavy-duty wall-mounted hardware fitting designed to support round architectural stainless steel tubing across residential and commercial balustrade installations. Engineered for maximum structural stability, this mounting bracket provides robust support for staircases, elevated walkways, ramps, and balcony railings.
This fitting features an integrated heavy-duty coach screw bolt that anchors directly into timber studs, masonry plugs, or structural wall backing for a high-strength connection. A round 63 mm decorative cover flange plate (rosette) slides over the base point to conceal the underlying mounting bolt for a clean, flush appearance. The curved saddle plate includes two pre-drilled fixing holes specifically contoured to fit 38.1 mm (1.5″) or 50.8 mm (2″) outer diameter round tubing.

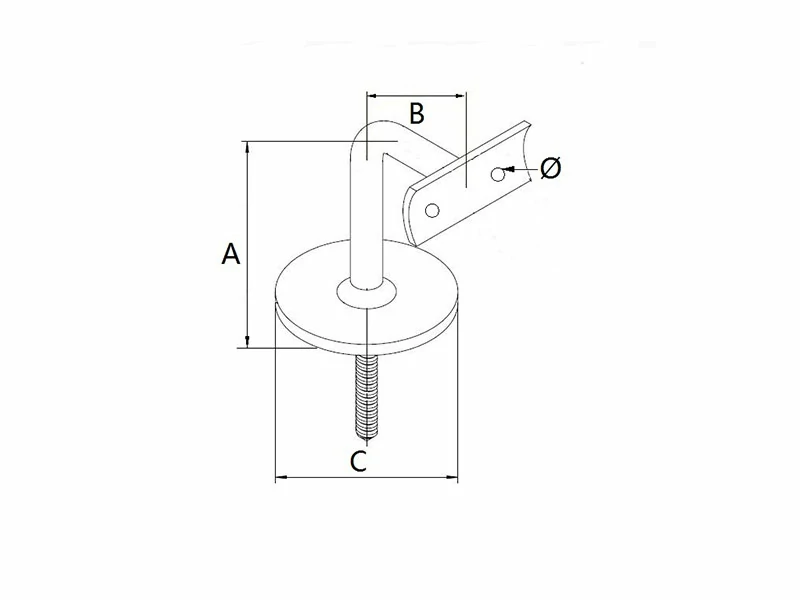

Standard technical dimensions include a vertical stem height (A) of 85 mm, a wall projection clearance (B) of 62 mm, and a cover flange outer diameter (C) of 63 mm. Available in premium AISI 304, AISI 316, and Duplex SS 2205 material grades with fine brushed satin or high-luster mirror polished finishes, these core handrail fittings combine long-lasting corrosion defense with modern design versatility.
|
Category |
Part NO. |
Fit for Tube
(mm) |
A (mm) |
B (mm) |
C (mm) |
Ø (mm) |
Material |
Surface |
Place of Production |
| Handrail Brackets |
D0238 |
Ø38.1
|
85 | 62 |
63 |
38.1 |
AISI 304, 316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
| Handrail Brackets |
D0250 |
Ø50.8
|
85 | 62 |
63 |
50.8 |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Installation Location: Walll
5. Design Style: Contemporary, Modern, European, Craftsman
6. Certificate: ISO9001:2015
7. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
8. Certificates: Material Certificates, Dimension Inspection Certificate
9. Lead Time : 60days batch production after handrail bracket samples approved
10. Warranty Service: 1 Year
11. After-sales Service: Online Technical Support, Return And Replacement
Q1: What tube sizes are compatible with this Handrail Bracket Stainless?
A: This bracket features a curved mounting saddle engineered specifically to support round stainless steel tubing with outer diameters of 38.1 mm and 50.8 mm.
Q2: How does the coach screw mounting system work?
A: The heavy-duty integrated coach screw anchors directly into structural wood wall studs or solid masonry expansion plugs. After securing the bolt, the 63 mm rosette cover flange slides into place over the mounting joint to deliver a clean, concealed fix.
Q3: Which material grade should I choose for my installation environment?
A: Grade selection depends on atmospheric exposure:
AISI 304: Best for climate-controlled indoor stairwells, residential corridors, and interior commercial walkways.
AISI 316: Ideal for general outdoor applications, exterior balconies, decks, and humid indoor spaces like swimming pool enclosures.
Duplex SS 2205: Recommended for demanding marine environments, coastal installations exposed to salt spray, and industrial sites requiring maximum mechanical strength and corrosion resistance.
Q4: What surface finish options are offered for this Stainless Steel Bracket Handrail?
A: We provide a modern brushed satin finish (ideal for concealing fingerprints in high-traffic indoor environments) and a mirror polished finish (offering superior smooth surface protection against outdoor environmental wear).
