The Handrail Bracket Adjustable 135 Degree is a high-performance wall-to-tube mounting component specifically engineered to support handrails at angled transitions, stair inclines, and sloping walkways. By allowing flexible angle positioning, this adjustable fitting provides a secure, continuous handrail connection that adapts seamlessly to the pitch and direction of architectural stairs and balconies.

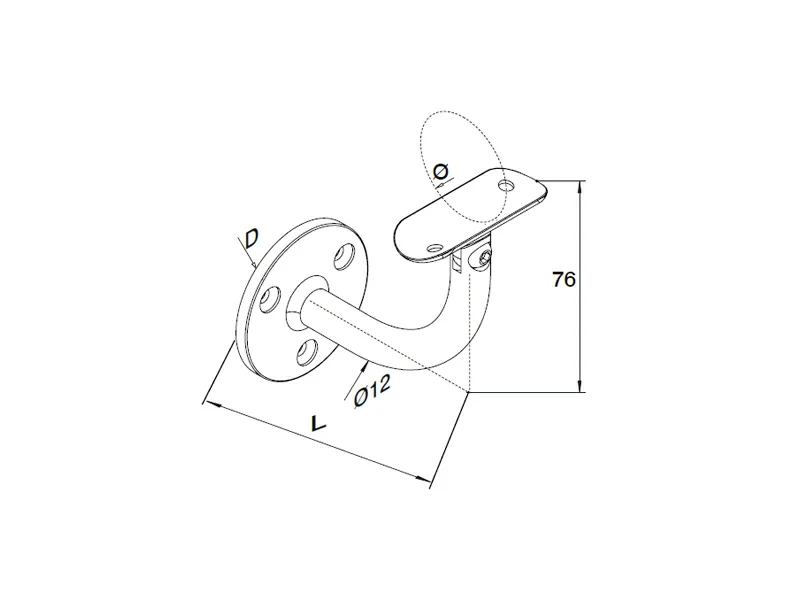

Built with a solid Ø 12 mm cranked support stem, the bracket features an integrated hex socket set screw directly beneath the top saddle plate. This design allows precise rotational adjustment to match exact slope angles before locking firmly into place. Key engineering specifications include a total vertical height offset of 76 mm from the arm axis to the top saddle, an overall projection length (L) of 85 mm from the wall, and a circular wall base plate (D) with a 60 mm diameter containing three countersunk screw holes for stable anchoring.
Manufactured from high-grade AISI 304, AISI 316, and Duplex SS 2205 stainless steel, these versatile Handrail Brackets accommodate flat-bottomed rails as well as round tube diameters of Ø 42.4 mm and Ø 48.3 mm. Available in brushed satin (matte) and high-luster mirror polished surface finishes, these essential handrail fittings deliver outstanding structural integrity, corrosion resistance, and a modern visual appeal for indoor and outdoor installations.
|
Category |
Part NO. | D | L | Ø |
Material |
Surface |
Place of Production |
|
Handrail Brackets |
E002.00.00 |
60mm | 85mm |
Flat |
AISI 304,316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
| Handrail Brackets |
E002.00.42 |
60mm | 85mm |
42.4mm |
|||
| Handrail Brackets |
E002.00.48 |
60mm | 85mm |
48.3mm |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Installation Location: Wall
5. Design Style: Contemporary, Modern, European, Craftsman
6. Certificate: ISO9001:2015
7. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
8. Certificates: Material Certificates, Dimension Inspection Certificate
9. Lead Time : 60days batch production after handrail bracket samples approved
10. Warranty Service: 1 Year
11. After-sales Service: Online Technical Support, Return And Replacement
Q1: What is the primary advantage of using a Handrail Bracket Adjustable over a fixed bracket?
A: An adjustable bracket features a rotatable saddle mechanism that allows installers to align the mounting plate to the exact pitch of a staircase or sloping ramp, ensuring proper full-contact attachment to the handrail without requiring custom-bent hardware.
Q2: How does the angle adjustment mechanism work on this bracket?
A: An integrated hex socket set screw located right below the saddle loosens to permit full structural rotation, allowing the saddle to tilt up to 135 degrees. Once aligned with the handrail slope, tightening the screw locks the assembly securely in place.
Q3: What handrail sizes are compatible with these Handrail Brackets?
A: The saddle profiles are specifically shaped to support flat-bottom timber/steel rails as well as standard round architectural pipes with outside diameters of Ø 42.4 mm (1.67 in) and Ø 48.3 mm (1.90 in).
Q4: How do I choose between AISI 304, AISI 316, and Duplex SS 2205 material options?
A:AISI 304: Best suited for dry interior projects such as residential stairwells and commercial hallways.
AISI 316: Standard specification for general outdoor applications, balconies, decks, and humid indoor spaces.
Duplex SS 2205: Engineered for extreme environments, including coastal areas exposed to salt spray, marine decks, and industrial facilities requiring maximum strength and corrosion resistance.
