The Weldable Handrail Brackets are heavy-duty stainless steel architectural fittings engineered to provide high-strength, permanent support for custom handrail installations. Designed to weld directly to the underside of metal handrail pipes or structural frames, these hardware supports eliminate the need for visible mechanical screws or bolts on the rail itself. This creates a seamless joint, offering high structural load stability along staircases, balconies, walkways, and commercial handrail systems.

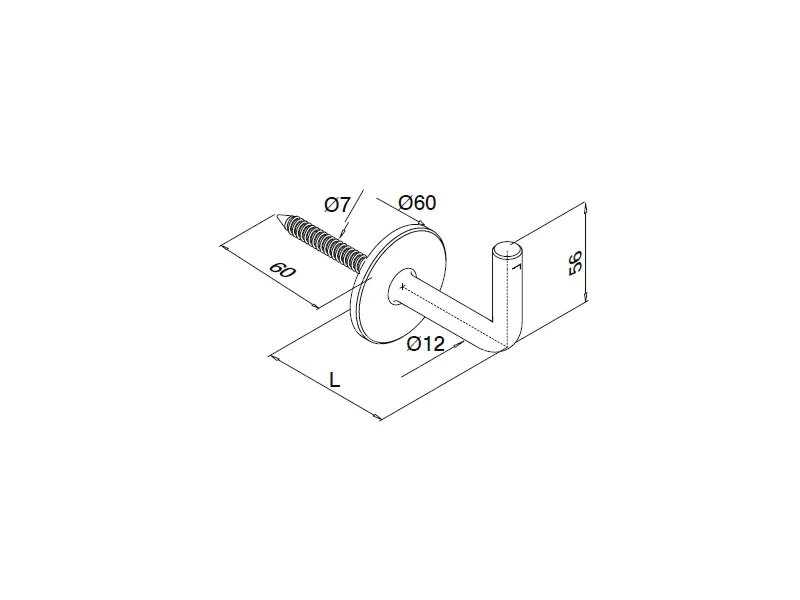

Featuring an integrated single-screw mounting design, each bracket is equipped with an extended ∅ 7 mm 60 mm threaded wood/hanger screw extending from the back of a ∅ 60 mm circular wall base plate. The support framework consists of a solid ∅ 12 mm curved post arm providing a total projection length (L) of 85 mm from the wall and a total upward hook height offset of 56 mm. Manufactured in AISI 304, AISI 316, and Duplex SS 2205 stainless steel material options with fine satin (matte) or mirror polished (shiny) surface finishes, these versatile Handrail Brackets provide exceptional durability and corrosion resistance across indoor, industrial, and demanding marine environments.
|
Category |
Part NO. | D | L |
Material |
Surface |
Place of Production |
|
Handrail Brackets |
E006.00.00 |
60mm | 85mm |
AISI 304,316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Installation Location: Wall / Post
5. Design Style: Contemporary, Modern, European, Craftsman
6. Certificate: ISO9001:2015
7. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
8. Certificates: Material Certificates, Dimension Inspection Certificate
9. Lead Time : 60days batch production after handrail bracket samples approved
10. Warranty Service: 1 Year
11. After-sales Service: Online Technical Support, Return And Replacement
Q1: What is the primary benefit of installing Weldable Handrail Brackets?
A: Weldable Handrail Brackets weld directly to the metal handrail tube, providing a permanent, hardware-free connection with zero visible screws or top saddles. This delivers maximum structural durability and a clean, streamlined aesthetic suitable for heavy-duty commercial or custom architectural projects.
Q2: How is this specific bracket mounted to the wall surface?
A: The fitting features an integrated ∅ 7 mm 60 mm threaded mounting screw protruding from the back of the ∅ 60 mm round base plate. This allows direct anchoring into timber wall studs, concrete anchors, or masonry plugs.
Q: Which stainless steel material grade should I specify for my application?
A: Grade selection depends on environment and exposure level:
AISI 304: Best suited for indoor residential, commercial office, and dry interior spaces.
AISI 316: Ideal for general outdoor walkways, balconies, decks, and humid environments requiring enhanced corrosion resistance.
Duplex SS 2205: Engineered for harsh marine settings, coastal walkways exposed to salt fog, and aggressive industrial environments demanding extreme durability.
Q: What surface finish choices are available for these handrail fittings?
A: You can choose between a satin (matte) finish for a modern industrial style that conceals daily wear, or a mirror polished (shiny) finish for a reflective, high-end decorative appearance that minimizes environmental dirt accumulation.
