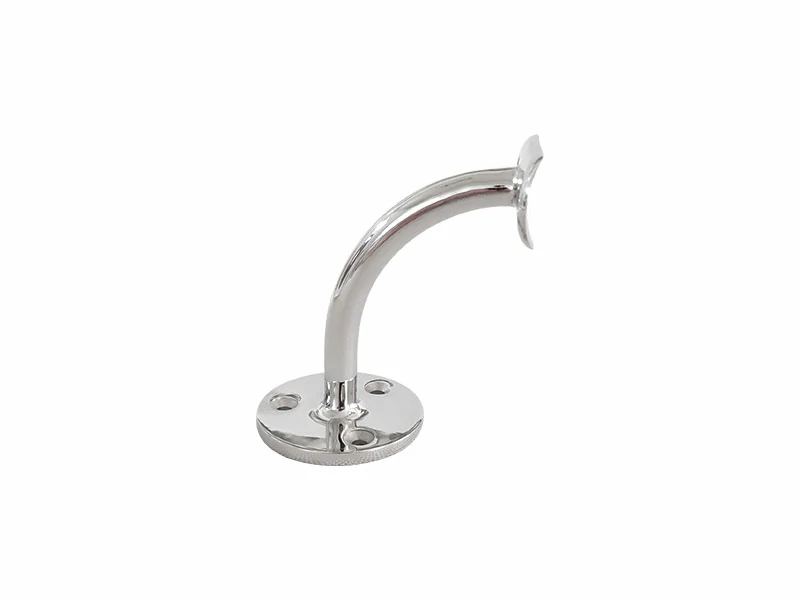

The 316 Stainless Steel Handrail Brackets are heavy-duty, marine-grade support components designed to anchor handrails securely to structural walls, upright posts, or balustrades. Engineered for maximum structural stability and superior environmental resistance, these wall-mounted fittings feature a circular base flange with three countersunk fixing holes to ensure a flush, reliable installation.

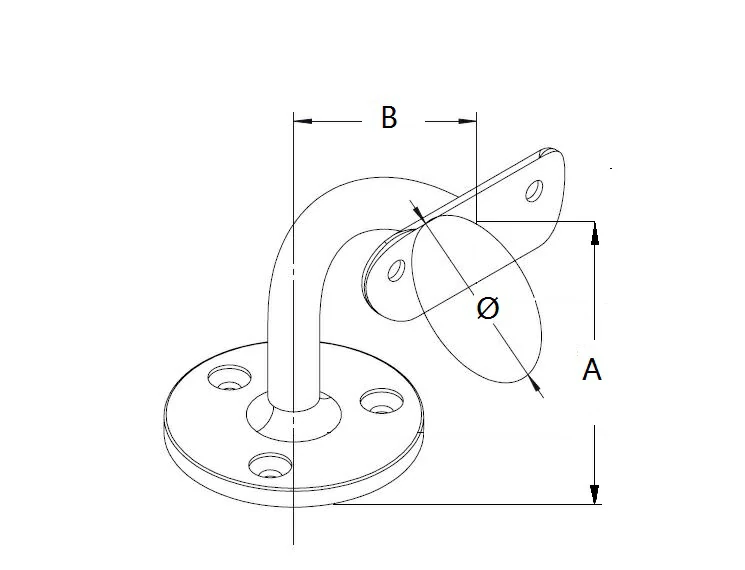

Designed with a curved support arm and a dedicated mounting saddle, these brackets accommodate multiple handrail geometries, including flat-bottom timber rails and round metal tubes (Ø 38.1 mm and Ø 50.8 mm). Standard geometric specifications feature a total vertical height offset (A) of 85 mm from the base to the center of the support plate, and a horizontal stand-off projection (B) of 56 mm.
Manufactured specifically from high-grade AISI 316 marine stainless steel, these Handrail Brackets provide exceptional resistance against chloride corrosion, salt air, and harsh weather. Available in fine brushed satin polished or high-luster mirror polished surface treatments, these essential handrail fittings deliver a perfect balance of safety, structural performance, and modern aesthetic appeal for residential, commercial, and marine architectural projects.
|
Category |
Part NO. |
Fit for Tube
(mm) |
A (mm) |
B (mm) |
Ø (mm) |
Material |
Surface |
Place of Production |
| Handrail Brackets |
D0600 |
Flat
|
85 | 56 |
Flat |
AISI 304,316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
| Handrail Brackets |
D0638 |
Ø38.1
|
85 | 56 |
38.1 |
|||
| Handrail Brackets |
D0650 |
Ø50.8
|
85 | 56 |
50.8 |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Installation Location: Wall / Post
5. Design Style: Contemporary, Modern, European, Craftsman
6. Certificate: ISO9001:2015
7. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
8. Certificates: Material Certificates, Dimension Inspection Certificate
9. Lead Time : 60days batch production after handrail bracket samples approved
10. Warranty Service: 1 Year
11. After-sales Service: Online Technical Support, Return And Replacement
Q1: What makes 316 Stainless Steel Handrail Brackets ideal for demanding environments?
A: AISI 316 stainless steel contains added molybdenum, which drastically enhances corrosion resistance against chlorides, salt fog, and severe moisture compared to standard grades. This makes these brackets exceptionally suited for coastal walkways, marine decks, outdoor balconies, and indoor pool enclosures.
Q2: What handrail profiles and tube diameters are compatible with this bracket?
A: The support saddle plate is designed to accommodate three distinct handrail configurations:
Flat: Ideal for square steel tubing, rectangular channels, or flat wooden handrails.
Ø 38.1 mm (1.5 in): Curved saddle contoured for standard 38.1 mm round handrail pipes.
Ø 50.8 mm (2.0 in): Curved saddle contoured for larger 50.8 mm round architectural handrail tubes.
Q3: What are the primary technical dimensions of this handrail bracket?
A: Key technical parameters include:
Total Height (A): 85 mm (vertical distance from the mounting base edge to the center of the handrail support plate)
Extension / Projection (B): 56 mm (horizontal clearance from the center of the mounting base to the center of the handrail support plate)
Q4: Where can these Handrail Brackets be installed?
A: These versatile wall-mounted brackets can be anchored to structural timber studs, masonry walls, concrete surfaces, or metal posts across indoor stairways, commercial corridors, exterior ramps, and marine installations.
Q5: What surface finishes can I select for my project?
A: Brackets are available in a practical satin polished finish (which effectively conceals fingerprints and micro-scratches in high-traffic public spaces) and a reflective mirror polished finish (which offers superior surface smoothness to minimize saltwater and environmental dirt adhesion).
