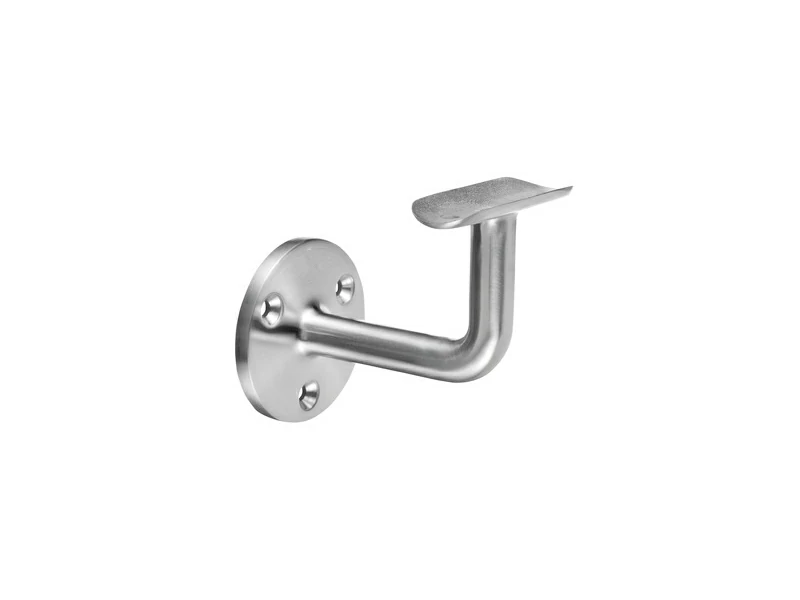

The Handrail Bracket Stainless Steel Wall to Tube 90 Degree is a fixed architectural component engineered to mount handrail pipes directly to walls at a precise right angle. Designed for staircases, landings, walkways, and balconies, this bracket provides a dependable wall-to-tube attachment that enhances structural safety while maintaining a sleek design aesthetic.

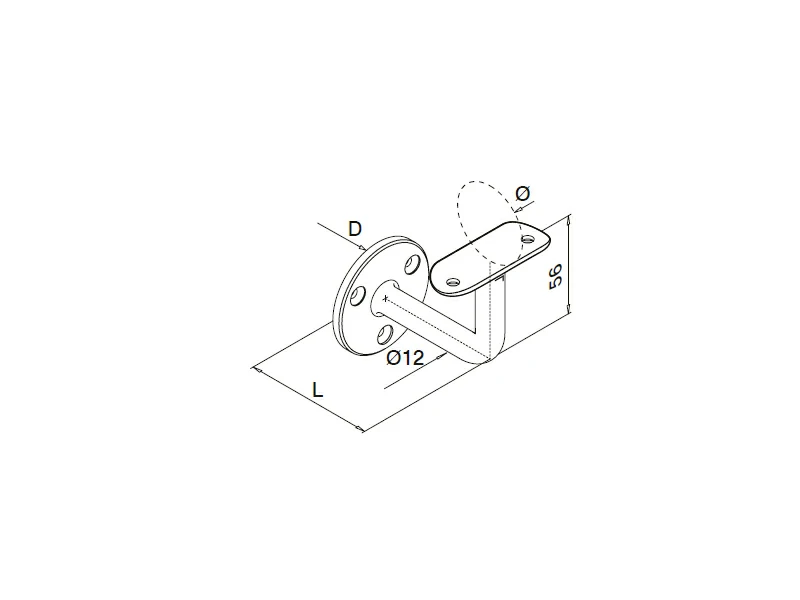

Constructed with a solid ∅ 12 mm support rod, the fitting features a heavy-duty circular flange plate (D = 60 mm) with three countersunk mounting holes for secure anchoring. Engineering dimensions include a total projection length (L) of 85 mm from the wall to the outer edge of the elbow and a 56 mm vertical height offset from the horizontal rod centerline to the saddle mounting plate. The top saddle plate accommodates flat-bottom rails as well as standard round tube profiles of ∅ 42.4 mm and ∅ 48.3 mm.
Manufactured in AISI 304, AISI 316, and Duplex SS 2205 stainless steel material grades, these Handrail Brackets deliver varying levels of corrosion resistance to match indoor, outdoor, or severe coastal environments. Available in satin polished (brushed matte) and mirror polished (highly reflective) surface finishes, these essential handrail fittings satisfy demanding architectural building requirements.
|
Category |
Part NO. | D | L | Ø |
Material |
Surface |
Place of Production |
|
Handrail Brackets |
E007.00.00 |
60mm | 85mm |
Flat |
AISI 304,316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
| Handrail Brackets |
E007.00.42 |
60mm | 85mm |
42.4mm |
|||
| Handrail Brackets |
E007.00.48 |
60mm | 85mm |
48.3mm |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Installation Location: Wall/ Post
5. Design Style: Contemporary, Modern, European, Craftsman
6. Certificate: ISO9001:2015
7. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
8. Certificates: Material Certificates, Dimension Inspection Certificate
9. Lead Time : 60days batch production after handrail bracket samples approved
10. Warranty Service: 1 Year
11. After-sales Service: Online Technical Support, Return And Replacement
Q1: Where are 90-degree Handrail Bracket Stainless Steel units typically installed?
A: These wall-to-tube brackets are ideal for mounting continuous handrail systems along interior or exterior staircases, landings, hallways, and walkways wherever a right-angle wall connection is required.
Q2: Which handrail tube profiles fit onto this bracket saddle?
A: The saddle plate is contoured to support flat-bottom handrails as well as standard round architectural pipes with outside diameters of Ø 42.4 mm and Ø 48.3 mm.
Q3: Which stainless steel material grade should I select?
A: Material selection depends on your installation environment:
AISI 304: Best for interior residential and commercial applications.
AISI 316: Ideal for general outdoor walkways, balconies, and humid indoor spaces requiring enhanced weather resistance.
Duplex SS 2205: Recommended for harsh marine environments and coastal settings exposed to salt spray.
Q4: What surface finish options are available for these Handrail Brackets?
A: You can choose between a satin polished (brushed matte) finish for a contemporary look that conceals light surface wear, or a mirror polished finish for a high-luster, reflective appearance that reduces dirt adhesion.
