SS Glass Holder Ø50 mm Dome Head

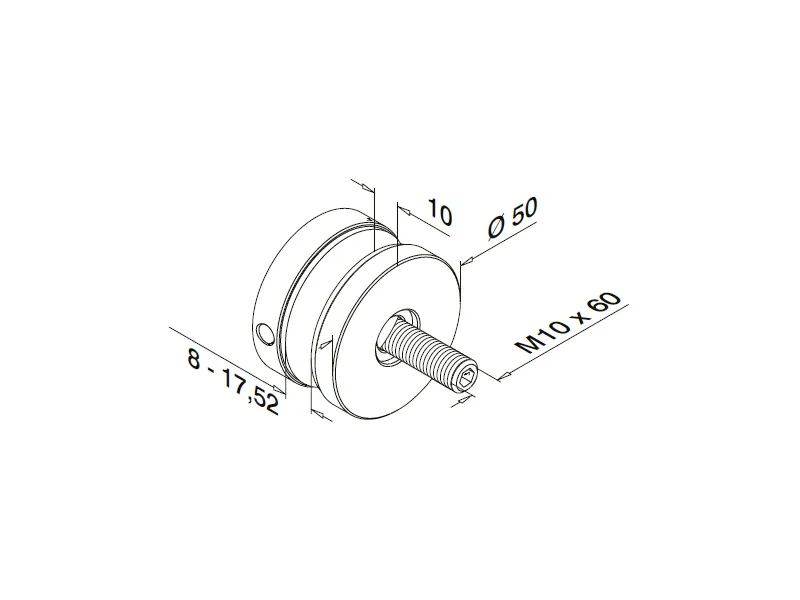

Ø50 mm Dome Head Glass Holder Structure

Glass Holder (Standoff) Ø50 mm / Dome Head

The SS Glass Holder is a precision-engineered glass standoff designed for securely mounting glass panels onto flat surfaces such as walls, posts, and balustrade structures. With a Ø50 mm dome head, 10 mm disc thickness, and compatibility with 8–17 mm glass, this durable glass standoff delivers strong, stable, and visually appealing support for architectural glazing systems. Manufactured from high-quality AISI 304, AISI 316, or Duplex 2205 stainless steel, it ensures excellent corrosion resistance and durability, making it suitable for both indoor and outdoor installations. Its clean, modern dome-head profile provides an elegant finish that complements contemporary architectural designs.

Category Part NO. H Diameter  Disc Thickness Thread  Glass Compatibility  Material Surface Place of Production
Glass Holders GH012.50.00 10mm Ø50 mm  10 mm M10 × 60 8–17 mm AISI 304,316 or Duplex SS 2205 Satin or Mirror polished Shandong, China

Glass Holder BasicInfo:

  • Manufacturing Process: Investment Casting + Precision Machining+Polishing
  • Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
  • Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
  • Installation Location: Flooring
  • Design Style: Contemporary, Modern, European, Craftsman
  • Certificate: ISO9001:2015
  • Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
  • Certificates: Material Certificates, Dimension Inspection Certificate
  • Lead Time : 60days for samples making +60-90days batch production after glass holder samples approved
  • Warranty Service: 1 Year
  • After-sales Service: Online Technical Support, Return And Replacement

FAQ:

  • Q1: Why choose a Ø50mm glass holder over a smaller Ø30mm standoff?
    A: A Ø50mm glass holder provides a larger surface area for clamping. This distributes the load more effectively, which is critical when supporting heavier, thicker glass panels (such as 17.52mm laminated glass) or in high-traffic areas.
  • Q2: Is the M10 threaded stud included?
    A: Yes, the system includes an M10 x 60 threaded stud for installation. This ensures a strong anchor into your mounting surface.
  • Q3: What is the difference between the "body height" and "glass thickness"?
    A: The body height is 10mm, which is the fixed distance the glass will sit away from the wall. The glass thickness range (8-17mm) is the variable space within the cap allowing you to tighten the fixture onto different glass types.
  • Q4: Which material grade should I use for a seaside balcony?
    A: For any coastal or marine environment, we strongly recommend AISI 316 or Duplex SS 2205. Standard AISI 304 is suitable only for indoor or dry, non-coastal outdoor environments.
  • Q5. Can this holder support heavy glass panels?
    A: Yes. Made from high-strength stainless steel and designed for architectural applications, the SS Glass Holder provides reliable structural support when installed correctly.
