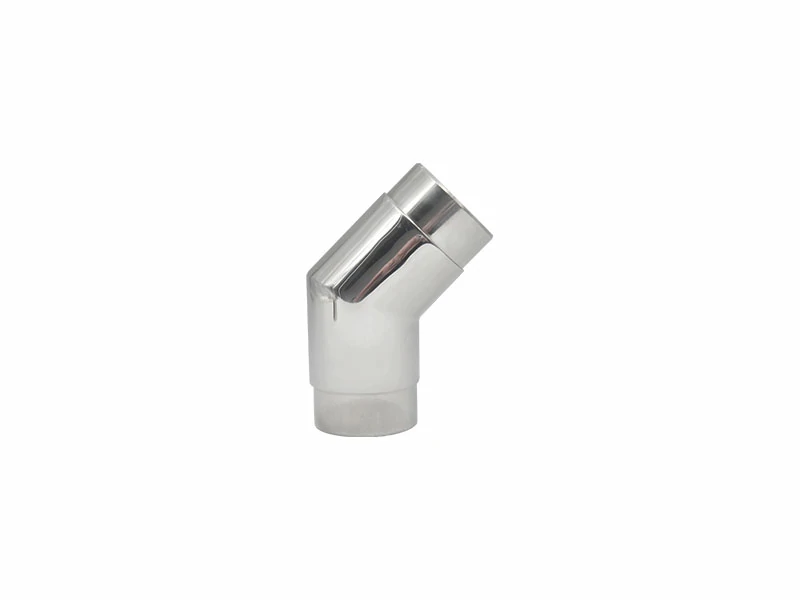

The Stainless Steel 135 Degree Flush Elbow is a specialized tube connector essential for professional railing and handrail fittings systems, particularly on inclines. This fitting is specifically designed to join two round tubes at a 135-degree angle, making it ideal for transitioning handrails on staircases and ramps.
The key benefit is the flush fit, where the connector inserts into the tubes, creating a seamless, neat, and strong connection. Available in Stainless Steel 304 or 316 and finished in Satin or Mirror Polish, this flush elbow ensures both structural integrity and a refined aesthetic.
|

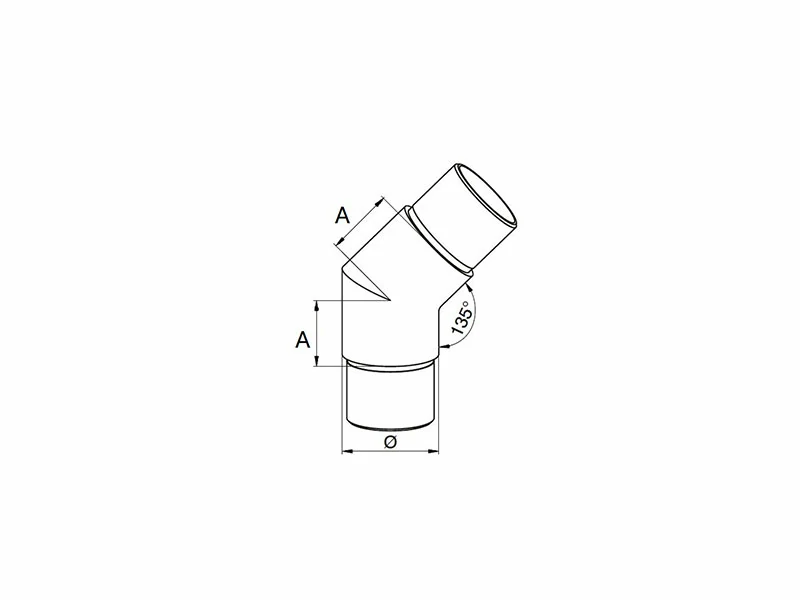

Category |
Part NO. |
Fit for Tube
(mm) |
A (mm) |
Ø (mm) |
Material |
Surface |
Place of Production |
| Tube Joiners |
A0325 |
Ø25.4 x 1.5
|
21 |
25.4 |
Stainless Steel 304 / 316 |
Satin or Mirror polished |
Shandong, China |
| Tube Joiners |
A0338 |
Ø38.1 x 1.5
|
41 |
38.1 |
|||
| Tube Joiners |
A0350 |
Ø50.8 x 1.5
|
50 |
50.8 |
1. Advantage: Easier and quicker installatio; Easier cleaning and maintenance
2. Manufacturing Process: Investment Casting + Precision Machining+Polishing
3. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Warehouse, Workshop, Park, Farmhouse, Courtyard, Home Bar, Staircase, Basement, etc.
4. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
5. Design Style: Contemporary, Modern, European, Craftsman
6. Certificate: ISO9001:2015
7. Certificates: Material Certificates, Dimension Inspection Certificate
8. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects, Others
9. Lead Time : 50days batch production after handrail elbow samples approved
10. Warranty Service: 1 Year
11. After-sales Service: Online Technical Support, Return And Replacement
Q1: What is the primary use for a 135 Degree Flush Elbow?
A: This 135 Degree Flush Elbow is typically used to join handrails at an incline, such as where a horizontal handrail transitions to follow a staircase or ramp.
Q2: How is this tube connector secured during installation?
A: Because this fitting is designed for a flush fit, it usually requires a high-strength adhesive (like a specialized epoxy or metal glue) to bond the elbow permanently inside the round tubes, ensuring a neat and strong connection.
Q3: Which stainless steel grade should I choose for exterior or marine handrail fittings?
A: For any exterior or coastal application, Stainless Steel 316 is the recommended choice. It provides superior resistance to chlorides and pitting corrosion compared to the 304 grade.
Q4: Where is this fitting commonly used?
A: It is widely used in:
Staircase handrails, Sloped railing systems, Commercial and residential guardrails, Architectural stainless steel tubing.
