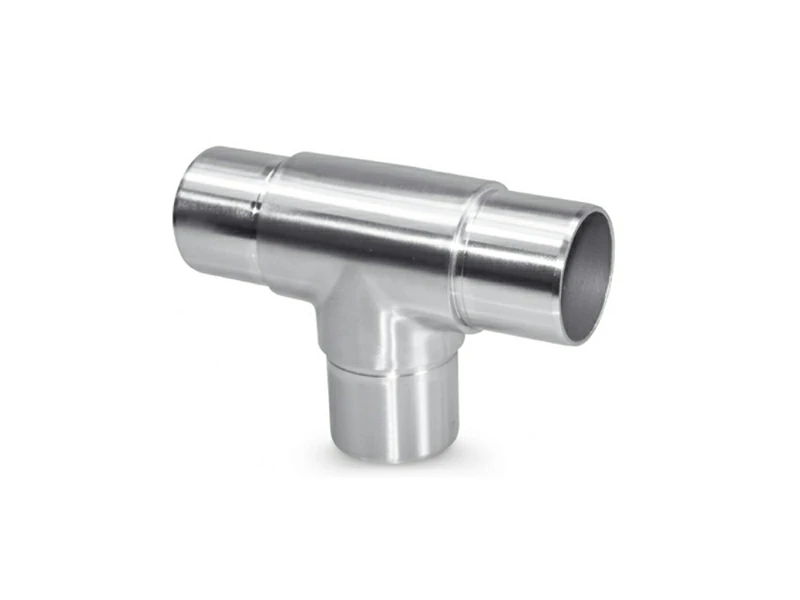

The Tee Joiner is a high-strength structural fitting designed to facilitate perpendicular intersections within modular balustrade frameworks. Engineered to create a seamless connection across three independent handrail segments, this premium tube connector allows a vertical post or mid-rail to join a continuous horizontal rail run at a precise 90-degree angle. It serves as an essential component for building stable T-junction layouts across staircases, ramp guardrails, balconies, and public walkways.
The component functions as an internal flush insert. The connecting pipes slide securely over the male sleeves of the joint, seating tightly against the central body shoulder to establish a perfectly uniform outer diameter. This configuration maintains a sleek, snag-free profile across all intersecting joints. Fabricated from premium industrial stainless steel (available in AISI 304, AISI 316, or Duplex SS 2205), our heavy-duty handrail fittings provide exceptional resistance to weathering, rust, and physical deformation. To fit standard architectural tubing sizes, the component is manufactured across multiple dimensional configurations.
Available in either a modern brushed satin or a highly reflective mirror-polished finish, this T-connector ensures complete structural integrity and aesthetic cohesion across residential, commercial, and industrial settings.
|
Category |

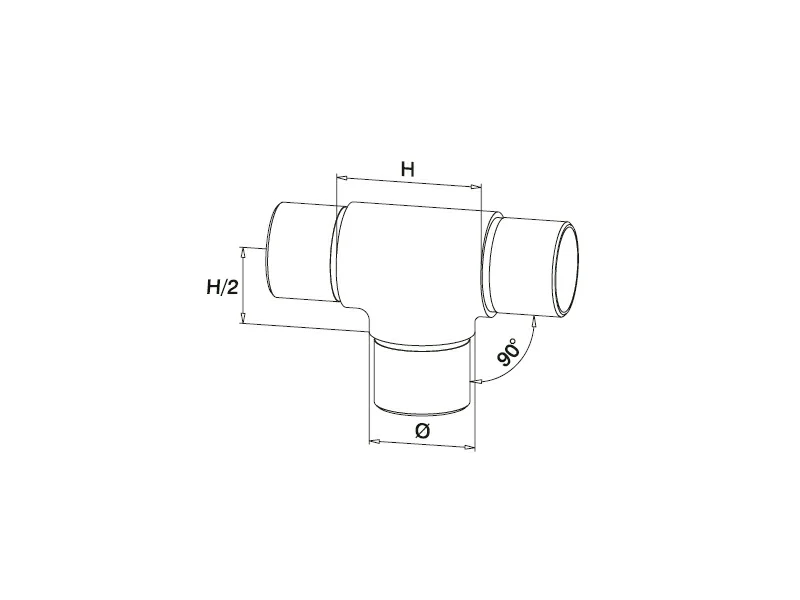

Part NO. | Ø |
H |
Material |
Surface |
Place of Production |
| Tube Joiners |
A006.33.20 |
33.7x2.0mm |
50mm |
AISI 304,316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
|
Tube Joiners |
A006.42.20 |
42.4x2.0mm |
60mm |
|||
|
Tube Joiners |
A006.42.26 |
42.4x2.6mm |
60mm |
|||
|
Tube Joiners |
A006.48.20 |
48.3x2.0mm |
70mm |
|||
|
Tube Joiners |
A006.48.26 |
48.3x2.6mm |
70mm |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Design Style: Contemporary, Modern, European, Craftsman
5. Certificate: ISO9001:2015
6. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
7. Certificates: Material Certificates, Dimension Inspection Certificate
8. Lead Time : 60days batch production after tube joiner samples approved
9. Warranty Service: 1 Year
10. After-sales Service: Online Technical Support, Return And Replacement
Q1. What is the primary function of a Tee Joiner?
A: It is designed to connect three separate handrail sections together at a 90-degree perpendicular intersection, making it ideal for joining vertical posts to top rails or adding horizontal mid-rails to structural balustrade systems.
Q2. Can this structural joint be used for outdoor marine decks?
A: Yes. For outdoor, coastal, or high-humidity applications, we recommend choosing marine-grade AISI 316 or Duplex SS 2205 stainless steel to ensure peak resistance to rust, oxidation, and pitting. For standard climate-controlled indoor layouts, AISI 304 stainless steel is the industry standard.
Q3. Does this fitting require on-site welding?
A: No. These handrail fittings are engineered for quick, weld-free installation. The internal connector ends insert directly inside the matching hollow tubing and are permanently secured using a high-strength structural adhesive or a hidden internal mechanical fastening method.
Q4. Will the joint catch on users' hands as they slide along the rail?
A: No. The flush-fitting shoulder design ensures that the outer diameter of the main body perfectly matches the outer wall of your handrail pipes. This creates a smooth, continuous surface transition that is completely safe and comfortable to the touch.
