The Tee Tube Connector is a high-performance fitting designed for slotted tube railing systems, enabling strong and precise 90-degree three-way connections in modern handrail and glass balustrade applications. Engineered to fit Ø50.8mm slotted stainless steel tubes, this connector allows seamless integration of horizontal and vertical rail sections, forming stable intersections without compromising aesthetics. Its slotted design aligns perfectly with glass panels, making it ideal for frameless railing systems where the slot accommodates glass infill with rubber gaskets. Manufactured from premium AISI 304 or 316 stainless steel and available in satin or mirror polished finishes, this connector offers excellent corrosion resistance, structural strength, and a clean, flush appearance. As a key component in slotted tube railing fittings and stainless steel handrail fittings, it ensures reliable performance in both architectural and structural applications.
|
Category |
Part NO. |
Fit for Tube
(mm) |

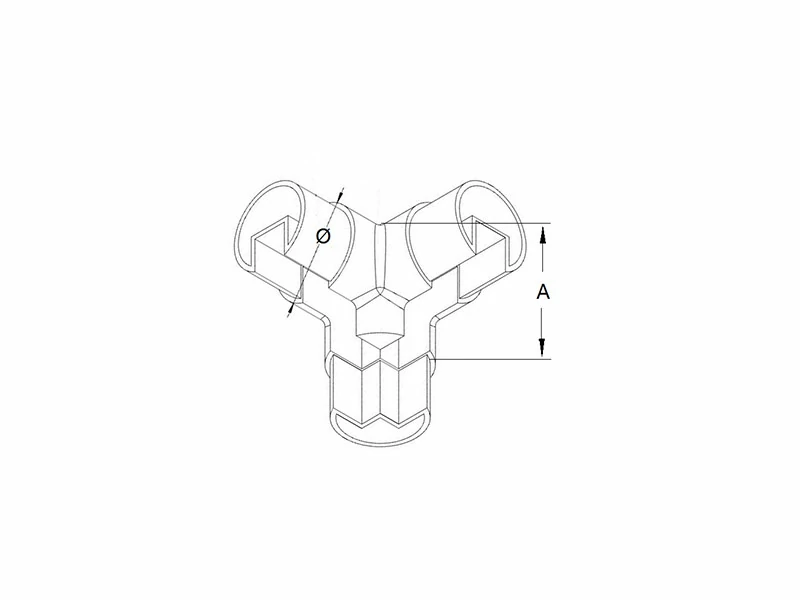

A (mm) |
Ø (mm) |
Material |
Surface |
Place of Production |
|
Slotted Tube Fittings |
SL100650 |
Ø50.8 x 1.5
|
66 | 50.8 |
Stainless Steel 304 / 316 |
Satin or Mirror polished |
Shandong, China |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Design Style: Contemporary, Modern, European, Craftsman
5. Certificate: ISO9001:2015
6. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
7. Certificates: Material Certificates, Dimension Inspection Certificate
8. Lead Time : 60days batch production after tube joiner samples approved
9. Warranty Service: 1 Year
10. After-sales Service: Online Technical Support, Return And Replacement
Q1. What are the primary applications for a Tee Tube Connector?
A: These stainless steel handrail fittings are ideal for creating structural frameworks, partition posts, and sneeze guards. They are specifically designed to manage 90-degree corners and three-way junctions where multiple sections of slotted tubing meet.
Q2. How does the "slotted" design assist in glass railing installations?
A: The connector is engineered to align perfectly with the grooves in slotted tubes. This allows the glass panels to remain centered and secure within the railing system even at intersection points, maintaining the sleek look of a frameless or semi-frameless balustrade.
Q3. What is a "flush" fitting installation?
A: A flush fitting means the connector is designed to slide internally into the tube. This creates a seamless transition between the tubing and the connector with no bulky external collars, resulting in a professional, architecturally clean finish.
Q4. How are these connectors secured to the tubing?
A: While the precision fit provides initial stability, the connectors are typically secured using high-strength metal contact cement (adhesive) or professional-grade welding for a permanent, vibration-free bond.
Q5. What finishes are available to match my project?
A: To suit various architectural styles, the Tee Tube Connector is available in both Satin (brushed) and Mirror Polished (high-gloss) finishes.
Inquiry Stainless Steel Slotted Tube Fittings for Handrail in Other Sizes, please contact us.
