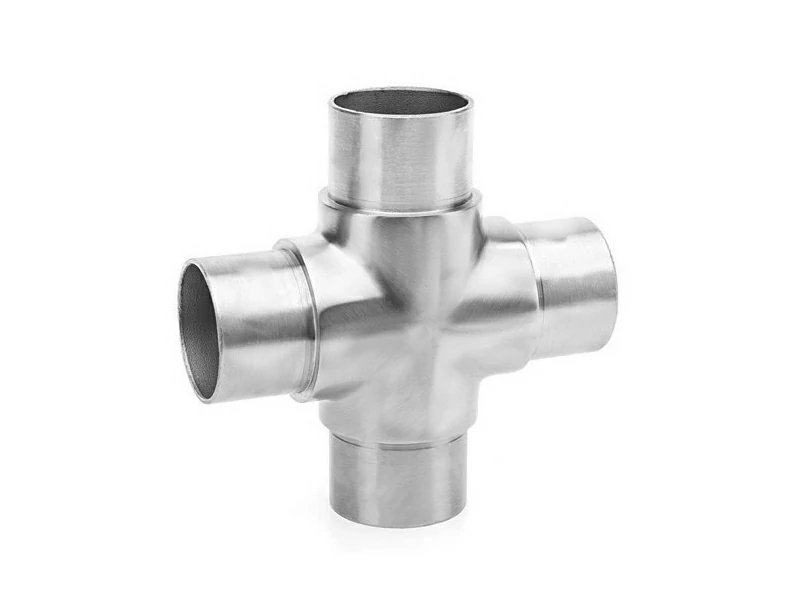

The Cross Joiner is a premium architectural fitting engineered to connect four handrail sections at a central intersection point, arranged in a precise 90° angle configuration. This high-performance tube connector allows for the secure and seamless connection of handrail segments across both horizontal and vertical directions, creating a highly stable and rigid layout structure. By creating a unified 4-way focal point, the joint effectively distributes weight and load evenly across all four connected tubes, greatly enhancing the overall integrity of the handrail assembly.
This component features an internal flush-mount design. The corresponding handrail tubes slide directly over the built-in male connector sleeves, resting perfectly flush against the shoulders of the central main body. Crafted from high-quality stainless steel—available in premium AISI 304, AISI 316, or Duplex SS 2205—these durable handrail fittings provide excellent corrosion resistance and a sleek, polished appearance. Offered in standard structural outer diameters of 42.4mm and 48.3mm, this 4-way intersection piece can be specified in either a modern brushed satin or a mirror-polished finish to suit interior and exterior handrails alike.
|

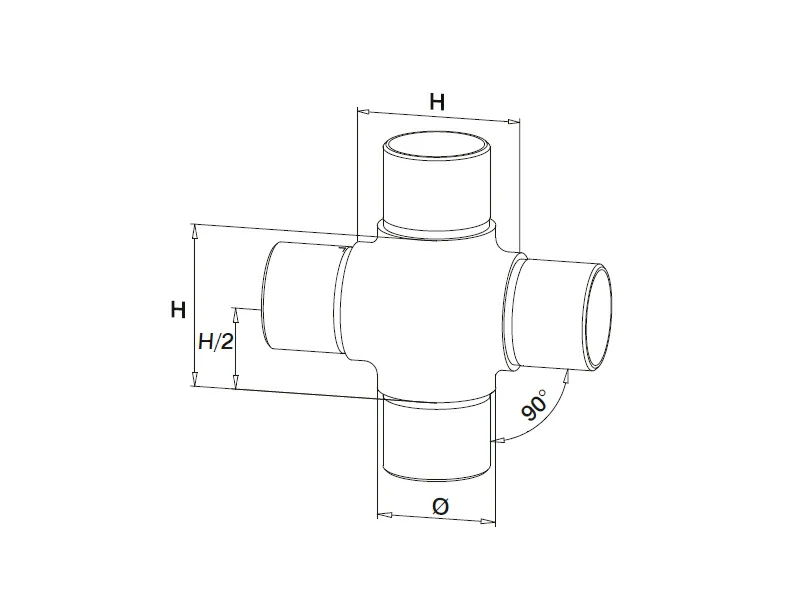

Category |
Part NO. | Ø |
H |
Material |
Surface |
Place of Production |
|
Tube Joiners |
A010.42.20 |
42.4x2.0mm |
60mm |
AISI 304,316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
|
Tube Joiners |
A010.42.26 |
42.4x2.6mm |
60mm |
|||
|
Tube Joiners |
A010.48.20 |
48.3x2.0mm |
70mm |
|||
|
Tube Joiners |
A010.48.26 |
48.3x2.6mm |
70mm |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Design Style: Contemporary, Modern, European, Craftsman
5. Certificate: ISO9001:2015
6. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
7. Certificates: Material Certificates, Dimension Inspection Certificate
8. Lead Time : 60days batch production after tube joiner samples approved
9. Warranty Service: 1 Year
10. After-sales Service: Online Technical Support, Return And Replacement
Q1. What is the primary function of a Cross Joiner in a railing system?
A: It is designed to connect four independent handrail sections at a single intersection point where rails cross at 90° angles. It provides simultaneous multi-directional anchoring for both horizontal rails and vertical balustrade support posts.
Q2. Is this structural 4-way joint suitable for harsh outdoor environments?
A: Yes. While our AISI 304 stainless steel option is ideal for standard interior projects, we offer premium marine-grade AISI 316 and Duplex SS 2205 alternatives. These high-alloy materials offer excellent durability and exceptional resistance to rust, weather, and environmental pitting in outdoor setups.
Q3. How does this hardware install into the hollow handrail profiles?
These modular handrail fittings are engineered for a clean, weld-free installation. The extended internal connection collars slide snugly inside the cut ends of the matching stainless steel tubing. They are secured permanently using a high-strength industrial structural adhesive or internal mechanical fasteners, eliminating complex on-site welding.
Q4. Does the joint create a smooth transition for people gripping the handrail?
A: Yes. The flush-fitting shoulder design ensures that the central joint body matches the exact outer diameter of your railing tubes. This creates a smooth, continuous surface transition that ensures a clean look and a comfortable grip.
