50.8mm
The Corner Base Flange from Highco Metal is a specialized architectural component designed to provide a secure and stable mounting point for handrail posts in corner configurations. Unlike a standard Wall Stop Base Flange, this fitting features a unique base plate geometry with a 90° flat-edge design, allowing it to sit flush against corner walls or floor junctions.
Engineered for use with 50.8mm diameter tubing, this flange provides a clean, professional termination or start point for your railing system. Constructed from high-quality stainless steel (AISI 304 or 316), these handrail fittings are built to withstand significant structural loads while maintaining a sleek, modern appearance.
|

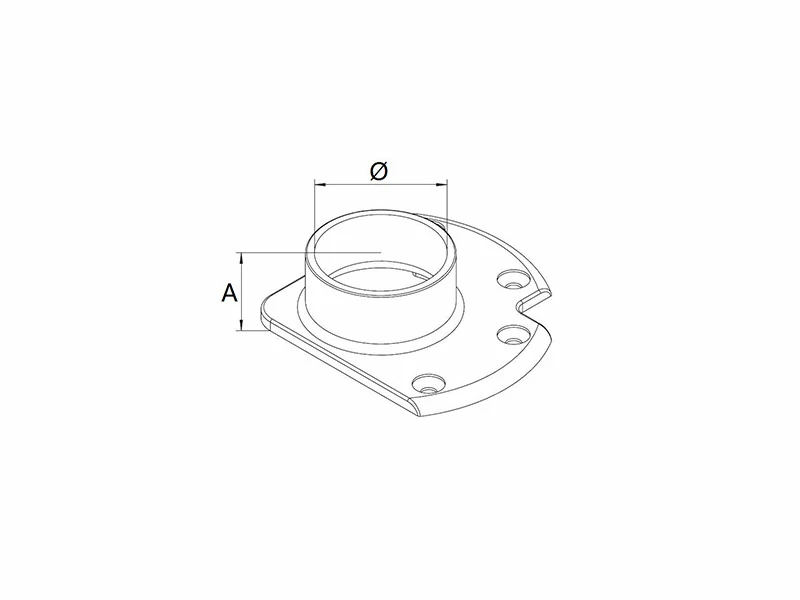

Category |
Part NO. |
Fit for Tube
(mm) |
A (mm) |
Ø (mm) |
Material |
Surface |
Place of Production |
| Base & Cover |
C0450 |
Ø50.8
|
30 |
50.8 |
Stainless Steel 304 / 316 |
Satin or Mirror polished |
Shandong, China |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Installation Location: Flooring
5. Design Style: Contemporary, Modern, European, Craftsman
6. Certificate: ISO9001:2015
7. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
8. Certificates: Material Certificates, Dimension Inspection Certificate
9. Lead Time : 60days batch production after base flange samples approved
10. Warranty Service: 1 Year
11. After-sales Service: Online Technical Support, Return And Replacement
Q1: When should I choose a Corner Base Flange over a standard round flange?
A: You should choose the Corner Base Flange when your post must be installed in a tight corner. The flat-edge design allows the post to be situated closer to the junction than a standard circular base would allow.
Q2: Which material grade is right for my project?
A: Grade 304 is the industry standard for indoor, temperature-controlled environments. For outdoor decks, pool areas, or coastal applications, Grade 316 is required due to its superior resistance to saltwater and atmospheric corrosion.
Q3: Does this flange support 2-inch tubing?
A: Yes. The Ø 50.8mm opening is specifically sized to accommodate standard 2-inch (OD) stainless steel tubing.
Q4: How is the tube secured into the 30mm socket?
A: The tube is inserted into the 30mm high socket. For a safe and permanent installation, we recommend using a high-strength architectural adhesive or a mechanical set-screw (depending on the specific model) to lock the post in place.
Q5: What mounting hardware should I use?
A: The choice of hardware depends on your substrate (concrete, wood, or metal). Typically, M6 or M8 stainless steel lag screws or wedge anchors are used through the four pre-drilled holes in the base.
