The Stainless Steel Flush End Post is a specialized piece of architectural hardware designed to terminate and secure handrail runs with a clean, streamlined appearance. Positioned at the end of a handrail section, this fitting serves as a robust vertical support that holds the tubing securely while blending seamlessly into the overall balustrade design. Its flush ring architecture caps and supports the terminal end of the pipe, providing structural stability and a neat, finished look.

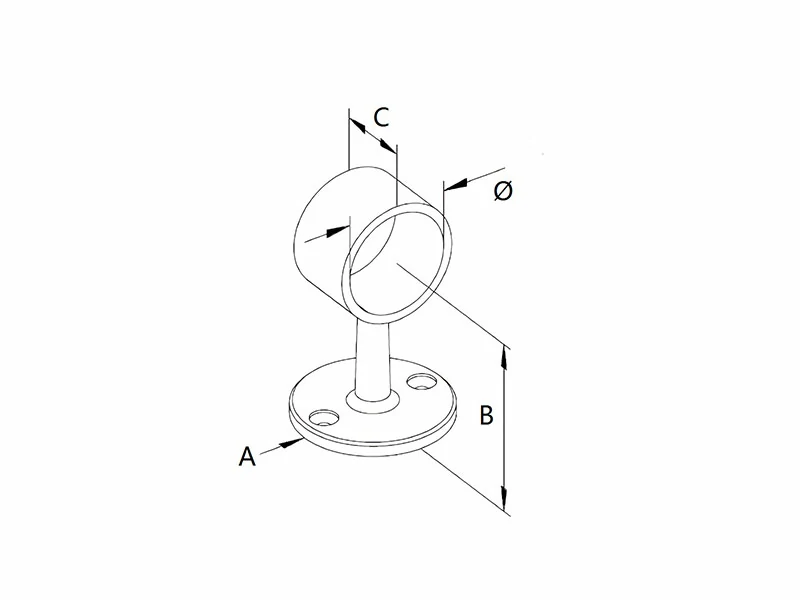

Engineered to fit standard round handrail tubing, this post bracket features an inner diameter (Ø) of 38.1 mm (1.5 inches) or 50.8 mm (2 inches). The mounting assembly includes a circular base flange plate diameter (A) measuring 60 mm or 70 mm, a standoff height (B) of 64 mm or 80 mm from the base to the center/top of the ring barrel, and a collar depth (C) that holds the tube securely. Precision-manufactured from high-grade AISI 304, AISI 316, or Duplex SS 2205 stainless steel and available in brushed satin or mirror-polished finishes, these heavy-duty handrail fittings serve as an essential Handrail Support terminal bracket across residential, commercial, and marine installations.
|
Category |
Part NO. |
Fit for Tube
(mm) |
A (mm) |
B (mm) |
C (mm) |
Ø (mm) |
Material |
Surface |
Place of Production |
|
Handrail Supports |
E1538 |
Ø38.1
|
60 | 64 | 30 |
38.1 |
AISI 304, 316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
|
Handrail Supports |
E1550 |
Ø50.8
|
70 | 80 | 30 |
50.8 |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Design Style: Contemporary, Modern, European, Craftsman
5. Certificate: ISO9001:2015
6. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
7. Certificates: Material Certificates, Dimension Inspection Certificate
8. Lead Time : 60days batch production after handrail support samples approved
9. Warranty Service: 1 Year
10. After-sales Service: Online Technical Support, Return And Replacement
Q1: What is the primary function of a Flush End Post?
A: A Flush End Post is installed at the end of a handrail run to provide vertical structural support while terminating the tube in a flush, seamless socket for a safe, finished appearance.
Q2: What handrail tubing sizes fit this Flush End Post?
A: This fitting is engineered to accept standard round stainless steel tubing with outer diameters of 38.1 mm (1.5 inches) and 50.8 mm(2 inches).
Q3: How is the Flush End Post anchored during installation?
A: The circular base plate (A) surface-mounts onto walls, floors, or structural posts using screws driven through pre-drilled countersunk holes, while the handrail tube end inserts into the top ring collar.
Q4: Which stainless steel material grade is recommended for outdoor or marine environments?
A: For outdoor, coastal, or marine installations, select AISI 316 or Duplex SS 2205 stainless steel for superior protection against atmospheric corrosion, salt spray, and severe weathering.
