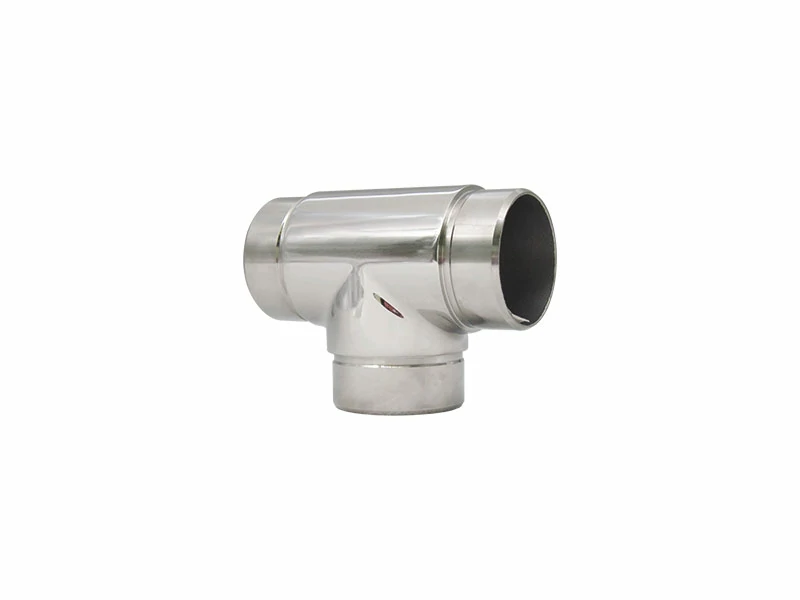

The T Tube Connector is a precision-engineered flush T-piece designed for creating clean, seamless 90-degree, 3-way joints in modern handrail and railing systems. As a flush joiner, this fitting slides inside the tube, delivering a smooth, professional finish without visible gaps.
Manufactured from high-grade 304 or 316 stainless steel, this tee tube connector provides superior durability, excellent corrosion resistance, and long service life – making it ideal for indoor and outdoor architectural applications. Available in multiple tube diameters, it supports common railing sizes such as Ø25.4mm, Ø38.1mm, and Ø50.8mm, with optional Satin or Mirror polish finishes. Installation typically requires a high-strength stainless steel adhesive for a secure bond.
|

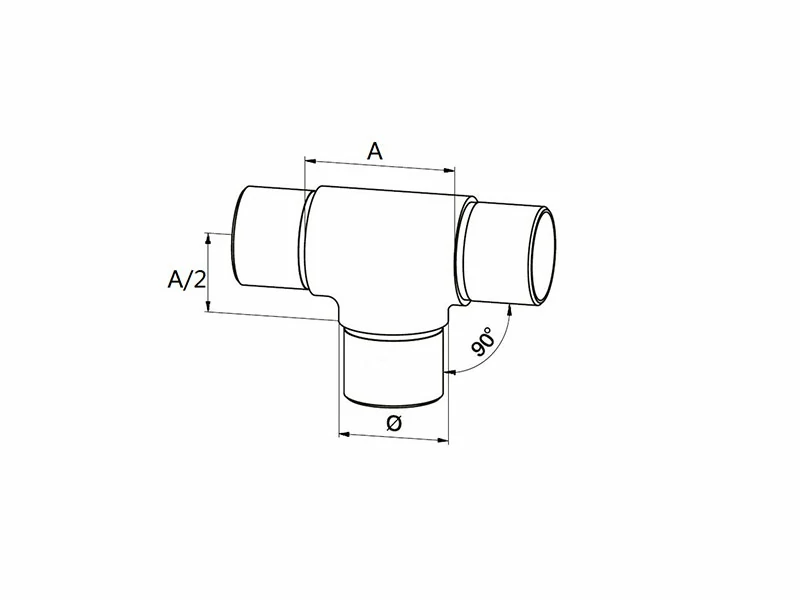

Category |
Part NO. |
Fit for Tube
(mm) |
A (mm) |
Ø (mm) |
Type | Material |
Surface |
| Tube Joiners |
A0525 |
Ø25.4 x 1.5
|
42 |
25.4 |
90° 3-way flush joiner |
Stainless Steel 304 / 316 |
Satin or Mirror polished |
| Tube Joiners |
A0538 |
Ø38.1 x 1.5
|
60 |
38.1 |
|||
| Tube Joiners |
A0550 |
Ø50.8 x 1.5
|
64 |
50.8 |
1. Advantage: Easier and quicker installatio; Easier cleaning and maintenance
2. Manufacturing Process: Investment Casting + Precision Machining+Polishing
3. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Warehouse, Workshop, Park, Farmhouse, Courtyard, Home Bar, Staircase, Basement, etc.
4. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
5. Design Style: Contemporary, Modern, European, Craftsman
6. Certificate: ISO9001:2015
7. Certificates: Material Certificates, Dimension Inspection Certificate
8. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects, Others
9. Lead Time : 50days batch production after tube connector samples approved
10. Warranty Service: 1 Year
11. After-sales Service: Online Technical Support, Return And Replacement
Q1: What is the main benefit of using a "flush joiner"?
A: The primary benefit of this flush joiner design is the aesthetic result. Since the connector fits entirely inside the tube, it creates an almost seamless, polished finish, which is highly desired in modern architectural and handrail systems.
Q2: What is a T Tube Connector used for?
A: It is used to create a 90-degree T-shaped joint in handrail or architectural tubing systems. It securely connects three tubes to form a stable structural intersection.
Q3: Is this tee tube connector suitable for outdoor installations?
A: Yes. The connector is typically made from 304 or 316 grade stainless steel, which offers high corrosion resistance and durability, making it suitable for both indoor and outdoor use.
Q4: What is required to install this T Tube Connector?
A: It is typically bonded with high-strength stainless steel adhesive, which provides a secure, hidden connection without screws or welds.
Q5: What size tubes will this connector fit?
A: This fitting is available in various sizes to accommodate standard tube diameters, such as 25.4mm, 38.1mm, and 50.8mm.
