The Stainless Steel Adjustable Handrail Saddle is an articulated baluster-to-handrail connector bracket engineered to secure handrails onto vertical posts or walls at variable angles. Equipped with a swivel/hinged knuckle joint, this bracket allows installers to adjust the pitch angle of top rails effortlessly along stairways, sloped access ramps, or custom architectural transitions.

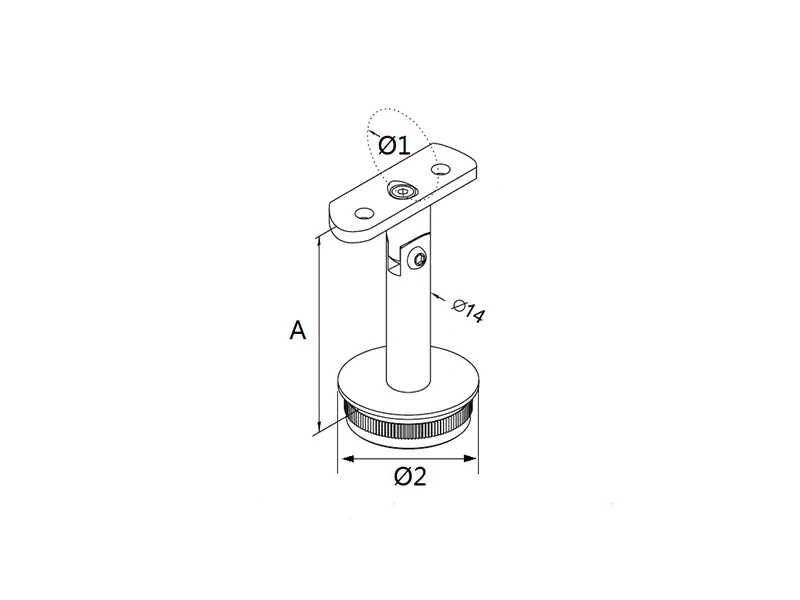

Featuring a solid 14 mm vertical support stem (Ø 14), this adjustable saddle includes a swiveling upper mounting plate (Ø 1) available in flat configurations for wooden/rectangular rails, as well as curved profiles for 38.1 mm (1.5 inches) and 50.8 mm(2 inches) round tubing. The lower knurled push-fit connector sleeve (Ø 2) inserts internally into 38.1 mm (1.5 inches) or 50.8 mm (2 inches) post open ends, delivering a standoff clearance height (A) of 80 mm. Precision-cast in high-grade stainless steel options—including AISI 304, AISI 316, and Duplex SS 2205—and available in brushed satin (matte) or mirror-polished (shiny) finishes, these versatile handrail fittings serve as an ideal Handrail Support component for commercial, residential, and marine balustrade projects.
|
Category |
Part NO. |
Fit for Tube
(mm) |
A (mm) |
Ø1 (mm) |
Ø2 (mm) |
Material |
Surface |
Place of Production |
|
Handrail Supports |
E223800 |
Ø38.1 × 1.5 |
80 | Flat |
38.1 |
AISI 304, 316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
|
Handrail Supports |
E223838 |
Ø38.1 × 1.5 |
80 | 38.1 |
38.1 |
|||
|
Handrail Supports |
E225000 |
Ø50.8 × 1.5 |
80 | Flat | 50.8 | |||
|
Handrail Supports |
E225050 |
Ø50.8 × 1.5 |
80 | 50.8 |
50.8 |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Design Style: Contemporary, Modern, European, Craftsman
5. Certificate: ISO9001:2015
6. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
7. Certificates: Material Certificates, Dimension Inspection Certificate
8. Lead Time : 60days batch production after handail stem samples approved
9. Warranty Service: 1 Year
10. After-sales Service: Online Technical Support, Return And Replacement
Q1: What is the main advantage of an Adjustable Handrail Saddle over a fixed saddle?
A: An Adjustable Handrail Saddle features a hinged swivel joint that allows installers to adjust and set the exact angle of the top rail on site, making it ideal for sloped stairways and ramps.
Q2: How is the pitch angle set and locked into position?
A: The swiveling top plate (Ø 1) tilts freely to match the angle of the handrail. Once positioned, tightening the integrated side Allen screw locks the hinged joint firmly at the desired angle.
Q3: What post and handrail dimensions are compatible with this adjustable saddle?
A: The lower insertion sleeve (Ø 2) fits into 38.1 mm (1.5 inchs) or 50.8 mm (2 inchs) round posts. The upper oval plate (Ø 1) supports Flat, 38.1 mm, or 50.8 mm handrail tubes.
Q4: Which stainless steel material grade should be selected for outdoor or marine use?
A: Select AISI 316 or Duplex SS 2205 stainless steel for outdoor, coastal, or marine installations to ensure maximum resistance against salt spray, atmospheric rust, and chloride pitting.
