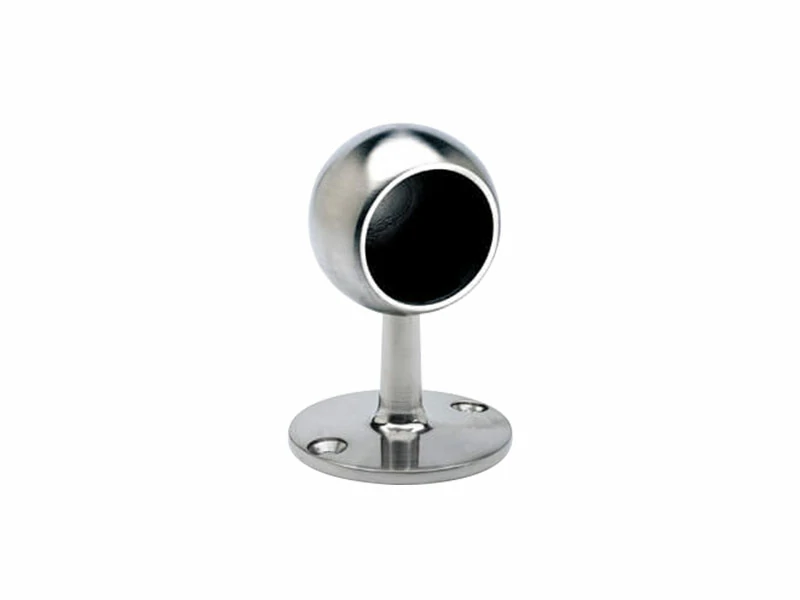

The Stainless Steel Ball Handrail End Support is a specialized mounting bracket designed to terminate and anchor handrail tubes securely at the end of a railing run. Featuring a spherical receiver head with a clean cylindrical opening, this component encapsulates the end of a round tube to deliver a smooth, polished appearance while providing structural stability.

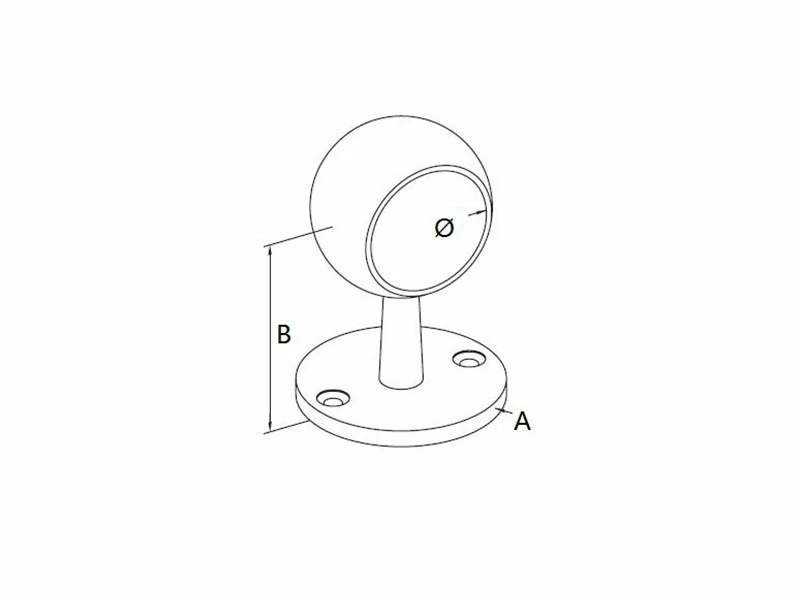

Specifically engineered to fit round handrail tubing measuring Ø 38.1 mm (1.5 inches) or Ø 50.8 mm (2 inches), this fitting features a circular flange base plate diameter (A) of 70 mm or 80 mm and a vertical standoff clearance height (B) of 70 mm or 80 mm. Precision-cast in high-grade stainless steel options—including AISI 304, AISI 316, and Duplex SS 2205—it offers exceptional strength and corrosion resistance. Available in brushed satin or mirror-polished finishes, these versatile handrail fittings serve as an essential Handrail Support terminal component across residential, commercial, and marine architectural installations.
|
Category |
Part NO. |
Fit for Tube
(mm) |
A (mm) |
B (mm) |
Ø (mm) |
Material |
Surface |
Place of Production |
|
Handrail Supports |
E1238 |
Ø38.1
|
70 | 70 |
38.1 |
AISI 304, 316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
|
Handrail Supports |
E1250 |
Ø50.8
|
80 | 80 |
50.8 |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Design Style: Contemporary, Modern, European, Craftsman
5. Certificate: ISO9001:2015
6. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
7. Certificates: Material Certificates, Dimension Inspection Certificate
8. Lead Time : 60days batch production after handrail support samples approved
9. Warranty Service: 1 Year
10. After-sales Service: Online Technical Support, Return And Replacement
Q1: What is the primary function of a Handrail End Support?
A: A Handrail End Support anchors the terminal end of a handrail run to a wall, floor, or structural post, providing structural rigidity while capping the tube end for a clean, safe, and finished look.
Q2: What handrail tube sizes are compatible with this end support?
A: This fitting is engineered to fit standard round handrail tubes with outer diameters of 38.1 mm (1.5 inches) and 50.8 mm (2 inches).
Q3: How is the Handrail End Support installed?
A: The circular flange base (A) mounts directly onto a flat surface using screws inserted through pre-drilled countersunk mounting holes, while the handrail tube end inserts into the ball socket opening (Ø).
Q4: Which stainless steel material grade should be selected for marine or outdoor use?
A: Select AISI 316 or Duplex SS 2205 stainless steel for outdoor, coastal, or marine installations to ensure maximum resistance against atmospheric rust, salt spray, and chloride pitting.
