Stainless Steel Handrail Flush Center Post

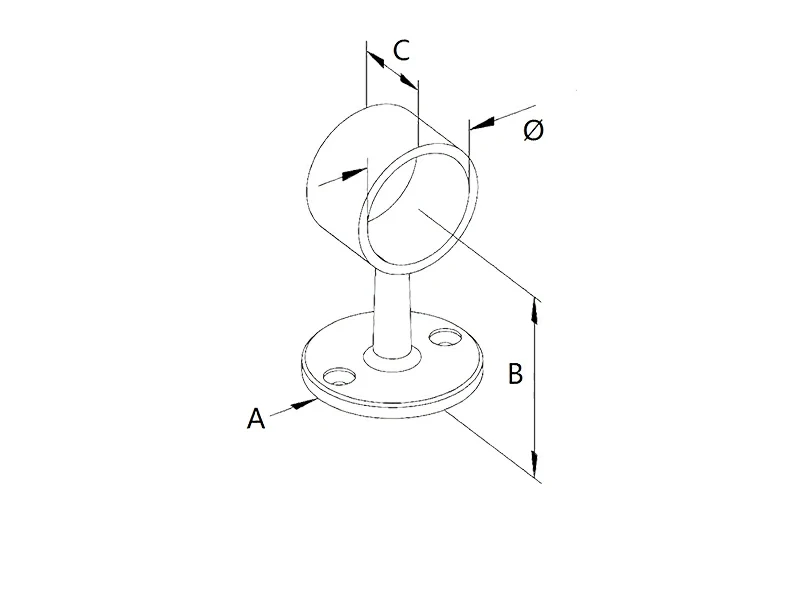

Flush Center Post Structure

Handrail Center Support

The Stainless Steel Flush Center Post is a key architectural component engineered to provide secure, stable, and visually seamless support for horizontal or vertical handrails. Designed to allow continuous handrail tubing to pass completely through its open ring barrel, this intermediate post bracket eliminates bulky step-down fittings and external connectors. The flush ring design produces a minimalist aesthetic while maintaining high structural stability across long rail spans.

Engineered for standard tube sizes, this fitting features an inner opening diameter (Ø) of 38.1 mm (1.5 inches) or 50.8 mm (2 inches). The mounting structure consists of a circular base flange plate diameter (A) measuring 60 mm or 70 mm, a total standoff height (B) of 64 mm or 80 mm, and a ring sleeve barrel width (C) of 30 mm that firmly wraps around the railing pipe. Precision-cast in high-performance AISI 304, AISI 316, or Duplex SS 2205 stainless steel grades and available in brushed satin or mirror-polished surface finishes, these versatile handrail fittings serve as an essential Handrail Support solution for residential, commercial, and marine balustrade projects.

Category

Part NO.
Fit for Tube

(mm)

A

(mm)

B

(mm)

C

(mm)

Ø

(mm)

Material

Surface

Place of Production

Handrail Supports

E1438

Ø38.1
60 64 30

38.1

AISI 304, 316 or Duplex SS 2205

Satin or Mirror polished

Shandong, China

Handrail Supports

E1450

Ø50.8
70 80 30

50.8



Handrail Support Info:

1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Design Style: Contemporary, Modern, European, Craftsman
5. Certificate: ISO9001:2015
6. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
7. Certificates: Material Certificates, Dimension Inspection Certificate
8. Lead Time : 60days batch production after handrail support samples approved
9. Warranty Service: 1 Year
10. After-sales Service: Online Technical Support, Return And Replacement



FAQ:

Q1: What is the primary function of a Flush Center Post?
A: A Flush Center Post acts as an intermediate support bracket that holds continuous handrail tubing as it passes through the ring loop, providing mid-span stability and preventing deflection over long runs.

Q2: What railing tube sizes are compatible with this Flush Center Post?
A: This fitting is engineered to fit round metal or wooden railings with outer diameters of 38.1 mm (1.5 inches) and 50.8 mm (2 inches).

Q3: How is the Flush Center Post installed?
A: The circular base flange (A) mounts flush against walls, floors, or posts using fasteners driven through pre-drilled countersunk holes, while the handrail pipe feeds through the 30 mm wide ring barrel (C).

Q4: Which stainless steel material grade is recommended for marine or outdoor use?
A: Select AISI 316 or Duplex SS 2205 stainless steel for outdoor, coastal, or marine environments to ensure maximum protection against chloride pitting, salt spray, and harsh weathering.
