Stainless Steel Adjustable Hand Railing Saddle

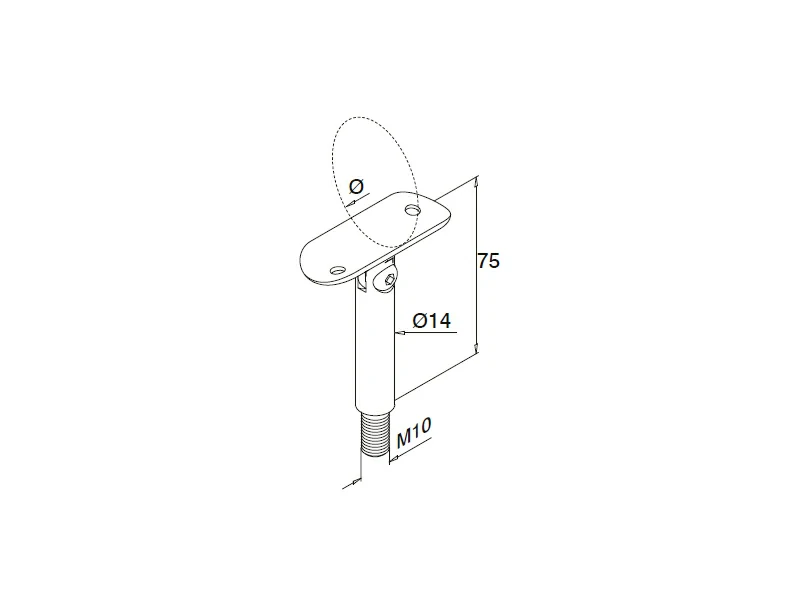

Adjustable Hand Railing Saddle Structure

Adjustable Handrail Support

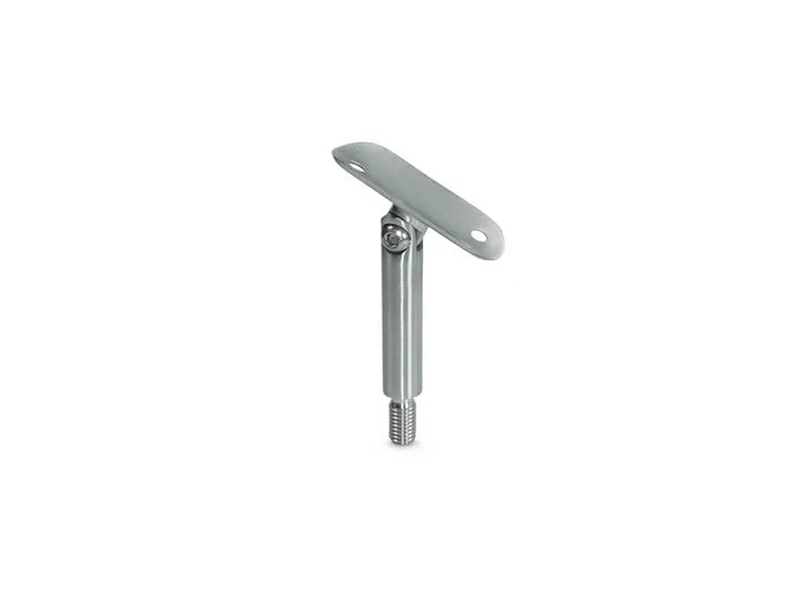

The Stainless Steel Adjustable Hand Railing Saddle is an articulated M10 threaded post-to-rail connector engineered to support top handrails at flexible incline angles. Featuring an integrated swivel knuckle joint directly underneath the saddle plate, this adjustable bracket allows installers to set precise pitch angles along sloped staircases, access ramps, and inclined walkways while maintaining high structural stability.

Constructed with a ∅ 14 mm solid vertical support stem, this fitting delivers a total vertical clearance height of 75 mm from the threaded base shoulder to the underside of the handrail plate. The lower base features an M10 male threaded stud designed for direct anchoring into tapped post caps, wall flanges, or structural glass adapters. The pivoting upper saddle plate includes pre-drilled countersunk fastener holes and is available in a flat profile for wooden or square handrails, as well as curved saddle profiles (∅) engineered to hold standard round handrail tubes measuring 33.7 mm, 42.4 mm, and 48.3 mm. Precision-machined from high-grade stainless steel options—AISI 304, AISI 316, and Duplex SS 2205—and offered in brushed satin (matte) or mirror-polished (shiny) finishes, these versatile railing fittings provide an indispensable, field-adjustable component for professional handrail support systems.

Category

Part NO.

Ø

H

Material

Surface

Place of Production

Handrail Supports

F006.14.00

Flat

75mm

AISI 304, 316 or Duplex SS 2205

Satin or Mirror polished

Shandong, China

Handrail Supports

F006.14.33

33.7mm

75mm

Handrail Supports

F006.14.42

42.4mm

75mm

Handrail Supports

F006.14.48

48.3mm

75mm



Handrail Support Basic Info:

1. Tube Thickness: 2.0mm or 2.6mm
2. Manufacturing Process: Investment Casting + Precision Machining+Polishing
3. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Warehouse, Workshop, Park, Wine Cellar, Entry, etc.
4. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
5. Certificate: ISO9001:2015
6. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects, Others
7. Certificates: Material Certificates, Dimension Inspection Certificate
8. Lead Time : 45days for samples making +50days batch production after railing support samples approved
9. Warranty Service: 1 Year
10. After-sales Service: Online Technical Support, Return And Replacement



FAQ:

Q1: What is the main advantage of an Adjustable Hand Railing Saddle with an M10 thread?
A: The integrated swivel joint allows the upper saddle plate to pivot freely to match exact staircase or ramp pitch angles, while the M10 threaded stem provides a quick, rigid installation into pre-tapped post caps or mounting base plates.

Q2: What handrail tube sizes are compatible with this adjustable saddle?
A: The upper saddle plate (∅) is available in flat configurations for rectangular or wooden handrails, as well as curved profiles engineered for round tubes measuring 33.7 mm, 42.4 mm, and 48.3 mm.

Q3: What vertical height clearance does this fitting provide?
A: This fitting provides a fixed vertical clearance height of 75 mm measured from the threaded base shoulder to the underside of the handrail saddle plate.

Q4: Which stainless steel material grade is recommended for outdoor or coastal applications?
A: Choose AISI 316 or Duplex SS 2205 stainless steel for outdoor, coastal, or severe marine environments to ensure maximum protection against chloride pitting, salt spray, and atmospheric oxidation.
