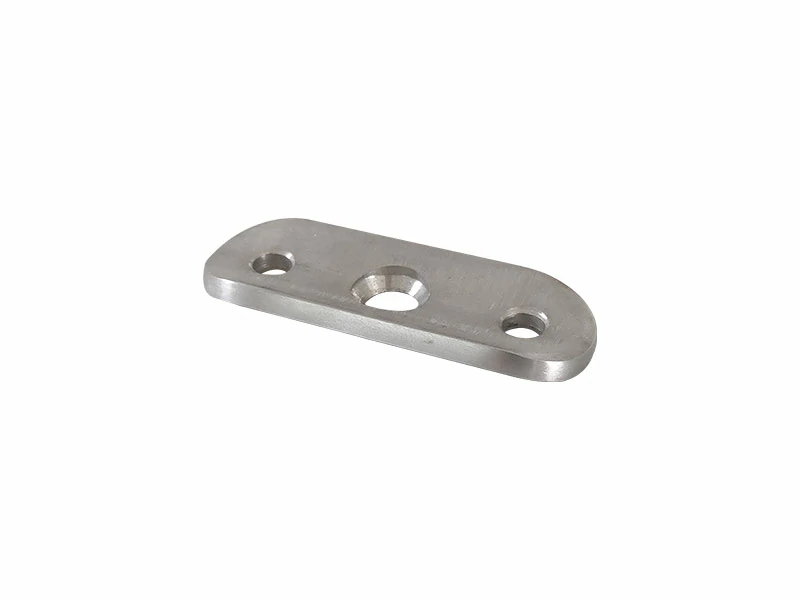

The Stainless Steel Handrail Plate is an essential architectural adapter bracket designed to secure round or flat handrails to support stems, baluster posts, or wall brackets. Featuring a contoured curved or flat mounting surface, this heavy-duty adapter provides a stable, flush interface between top rail tubing and underlying support hardware.

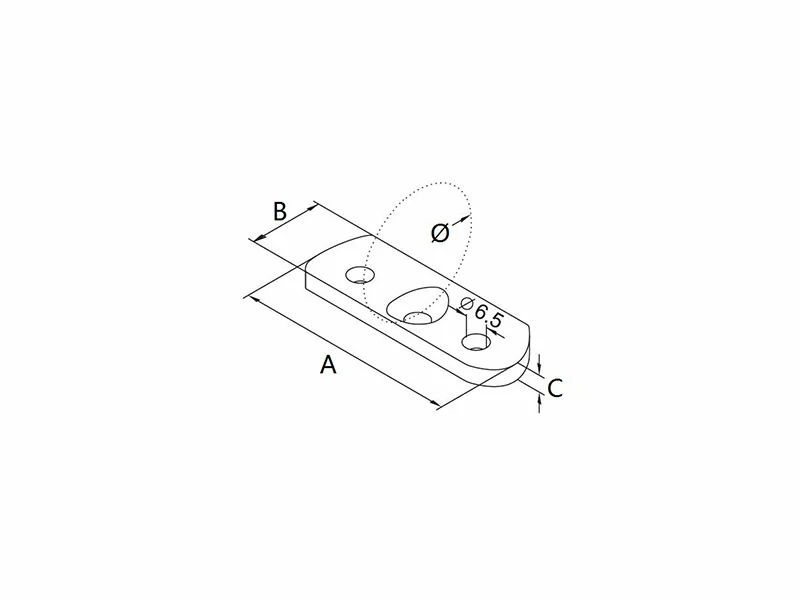

Engineered to fit standard round handrail profiles of Ø 38.1\text{ mm (1.5 inches) and Ø 50.8 mm (2 inches), as well as flat-bottom handrail designs, this plate measures 63 mm in total length (A), 25 mm in width (B), and 4 mm in solid plate thickness (C). It features two Ø 6.5 mm outer mounting holes for screw attachment directly into the handrail undersurface, along with a central countersunk attachment point for connecting to a support stem or post stud. Precision-manufactured from high-grade stainless steel options—including AISI 304, AISI 316, and Duplex SS 2205—and finished in brushed satin or mirror polish, these versatile handrail fittings deliver robust mechanical stability and long-lasting corrosion resistance as a key Handrail Support component.
|
Category |
Part NO. |
A (mm) |
B (mm) |
C (mm) |
Ø (mm) |
Material |
Surface |
Place of Production |
|
Handrail Supports |
E1700 |
63 |
25 |
4 |
Flat |
AISI 304, 316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
|
Handrail Supports |
E1738 |
63 | 25 | 4 |
38.1 |
|||
|
Handrail Supports |
E1750 |
63 | 25 | 4 |
50.8 |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Design Style: Contemporary, Modern, European, Craftsman
5. Certificate: ISO9001:2015
6. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
7. Certificates: Material Certificates, Dimension Inspection Certificate
8. Lead Time : 60days batch production after handrail support samples approved
9. Warranty Service: 1 Year
10. After-sales Service: Online Technical Support, Return And Replacement
Q1: What is the primary function of a Handrail Plate?
A: A Handrail Plate serves as an adapter bracket that bridges top handrail tubing and support stems or posts, securing the rail firmly with fasteners through pre-drilled mounting holes.
Q2: What handrail tube profiles are compatible with this plate?
A: This plate is available in curved options designed for Ø 38.1 mm (1.5 inches) and Ø 50.8 mm (2 inches) round handrail tubes, as well as a flat variant for square or rectangular wooden and metal handrails.
Q3: How is the Handrail Plate fastened to the handrail and post?
A: The plate connects to the support post or stem via its central countersunk attachment hole, while two Ø 6.5 mm outer holes allow screws to fasten directly into the underside of the handrail.
Q4: Which stainless steel material grade should be selected for outdoor or marine use?
A: For outdoor, coastal, or marine environments, select AISI 316 or Duplex SS 2205 stainless steel to ensure superior resistance against atmospheric rust, salt spray, and chloride pitting.
