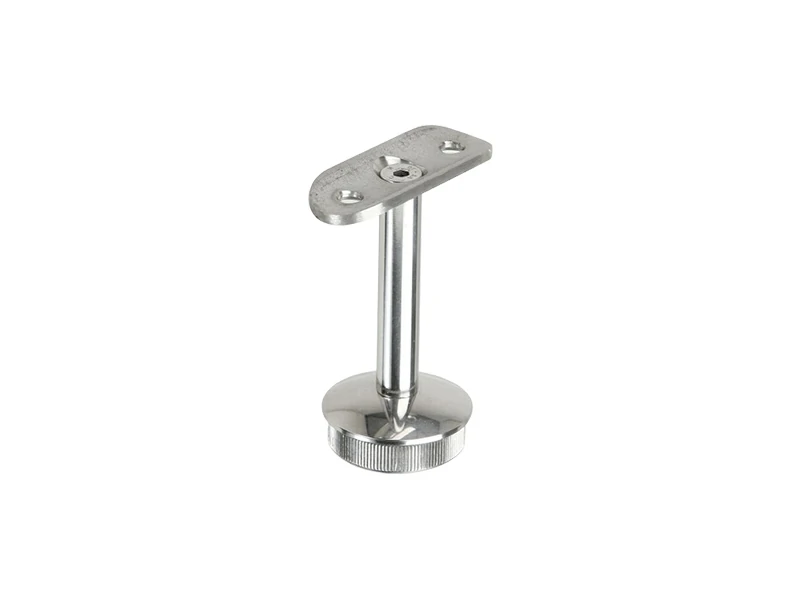

The Stainless Steel Handrail Saddle Bracket is a mounting component engineered to connect top handrail tubes to vertical baluster posts, wall brackets, or support structures. Featuring an adjustable top saddle plate mounted on a solid vertical riser stem with a push-fit base collar, this bracket allows for precise swiveling and angular alignment. It is designed to accommodate sloped staircases, access ramps, and level balustrades.

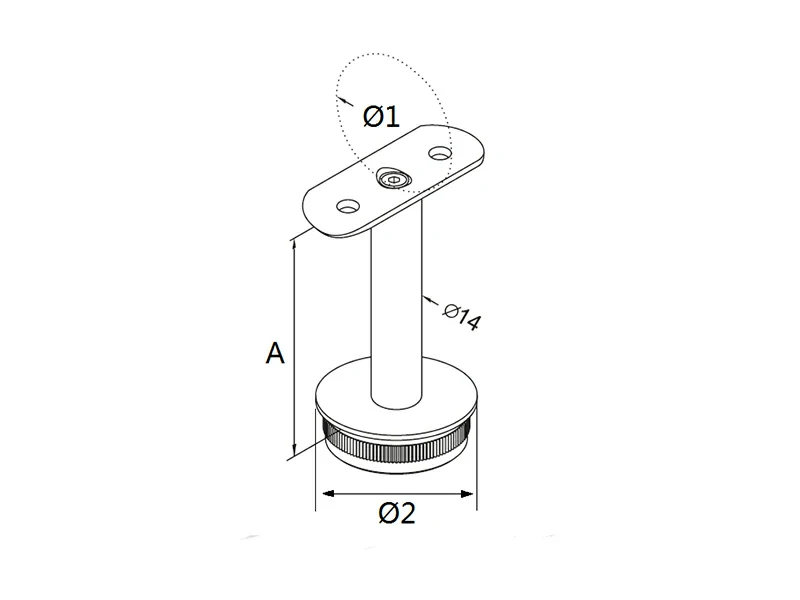

Equipped with a solid 14 mm vertical riser stem (Ø 14), this saddle bracket features a swiveling upper mounting plate (Ø 1) available in flat options for wooden or rectangular rails, as well as curved profiles for Ø 38.1 mm (1.5 inches) and Øg 50.8 mm (2 inches) round handrail tubing. The lower knurled push-fit base sleeve (Ø 2) is designed to insert into standard 38.1 mm (1.5 inches) or 50.8 mm (2 inches) post open ends, while providing a standoff height (A = 80 mm). Precision-cast in high-grade stainless steel grades—AISI 304, AISI 316, or Duplex SS 2205—and available in brushed satin (matte) or mirror-polished (shiny) surface finishes, these versatile handrail fittings serve as an ideal Handrail Support component for residential, commercial, and marine installations.
|
Category |
Part NO. |
Fit for Tube
(mm) |
A (mm) |
Ø1 (mm) |
Ø2 (mm) |
Material |
Surface |
Place of Production |
|
Handrail Supports |
E213800 |
Ø38.1 × 1.5
|
80 | Flat |
38.1 |
AISI 304, 316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
|
Handrail Supports |
E213838 |
Ø38.1 × 1.5
|
80 | 38.1 |
38.1 |
|||
|
Handrail Supports |
E215000 |
Ø50.8 × 1.5
|
80 | Flat |
50.8 |
|||
|
Handrail Supports |
E215050 |
Ø50.8 × 1.5
|
80 | 50.8 |
50.8 |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Design Style: Contemporary, Modern, European, Craftsman
5. Certificate: ISO9001:2015
6. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
7. Certificates: Material Certificates, Dimension Inspection Certificate
8. Lead Time : 60days batch production after handail stem samples approved
9. Warranty Service: 1 Year
10. After-sales Service: Online Technical Support, Return And Replacement
Q1: What is the primary function of a Handrail Saddle Bracket?
A: A Handrail Saddle Bracket acts as a post-top support that connects a handrail tube to a post or wall base, providing height clearance and swiveling angle adjustments for sloped or horizontal railings.
Q2: How does the swiveling mechanism work?
A: The upper saddle plate (Ø 1) is attached to the Ø 14 mm stem via a central pivot point, allowing the plate to tilt and match the exact pitch angle of staircases or ramps during installation.
Q3: What post and handrail dimensions are compatible with this bracket?
A: The lower base sleeve (Ø 2) fits into 38.1 mm (1.5 inch) or 50.8\text{ mm (2 inchs) round posts. The upper swiveling plate (Ø 1) supports Flat, 38.1 mm, or 50.8 mm handrail tubes.
Q4: Which stainless steel material grade should be selected for marine or outdoor use?
A: Select AISI 316 or Duplex SS 2205 stainless steel for outdoor, coastal, or marine installations to ensure maximum resistance against atmospheric oxidation, chloride pitting, and salt spray.
