The Stainless Steel Handrail Saddle Post is a specialized mounting bracket designed to hold and secure horizontal or angled round handrail tubing. Featuring a low-profile stem and a curved top saddle, this post bracket provides a stable, low-angle connection between structural surfaces—such as walls, post tops, or mounting plates—and continuous handrails. Its sleek architecture provides firm physical support while preserving a minimalist visual footprint across modular balustrades.

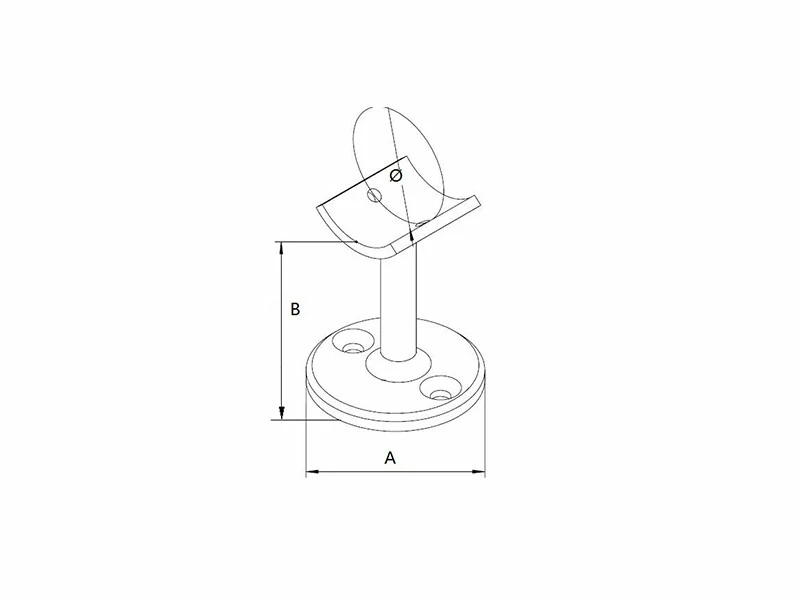

Specifically engineered to support 50.8 mm (2 inch) outer diameter round tubing (∅), this bracket features a circular base plate diameter A) of 57.5 mm and a total standoff clearance height (B) of 62.5 mm from the base to the bottom intersection of the saddle. Precision-cast in high-grade stainless steel options including AISI 304, AISI 316, and Duplex SS 2205, it offers exceptional load-bearing strength and resistance to corrosion. Available in brushed satin or mirror-polished surface finishes, these versatile handrail fittings serve as an essential handrail support component for residential, commercial, and marine environments.
|
Category |
Part NO. |
Fit for Tube
(mm) |
A (mm) |
B (mm) |
Ø (mm) |
Material |
Surface |
Place of Production |
|
Handrail Supports |
E1050 |
Ø50.8
|
57.5 | 62.5 |
50.8 |
AISI 304, 316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Installation Location: Wall / Post
5. Design Style: Contemporary, Modern, European, Craftsman
6. Certificate: ISO9001:2015
7. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
8. Certificates: Material Certificates, Dimension Inspection Certificate
9. Lead Time : 60days batch production after handrail support samples approved
10. Warranty Service: 1 Year
11. After-sales Service: Online Technical Support, Return And Replacement
Q1: What is the main function of a Handrail Saddle Post?
A: A Handrail Saddle Post acts as a rigid support bracket that mounts to flat surfaces or posts, cradling round handrail tubing to ensure structural stability and precise elevation.
Q2: What size handrail tubing does this saddle post support?
A: This model is specifically engineered to fit 50.8 mm (2 inch) outer diameter round stainless steel pipes or tubes.
Q3: How is the base plate mounted during installation?
A: The 57.5 mm circular flange base features pre-drilled holes designed for screw or bolt fastening directly to wooden blocking, masonry, metal posts, or wall surfaces.
Q4: Which stainless steel material grade should be selected for marine or outdoor use?
A: Select AISI 316 or Duplex SS 2205 stainless steel for outdoor, marine, or coastal installations to ensure maximum resistance against atmospheric rust, salt spray, and chloride pitting.
