The Stainless Steel Round End Cap is a precision architectural fitting designed to cap tubular balustrades, posts, and handrails with a clean, flush aesthetic. Engineered for a secure press-fit installation, this cap features a central M8 tapped hole that allows for seamless integration with top handrail support brackets, saddles, or secondary hardware.

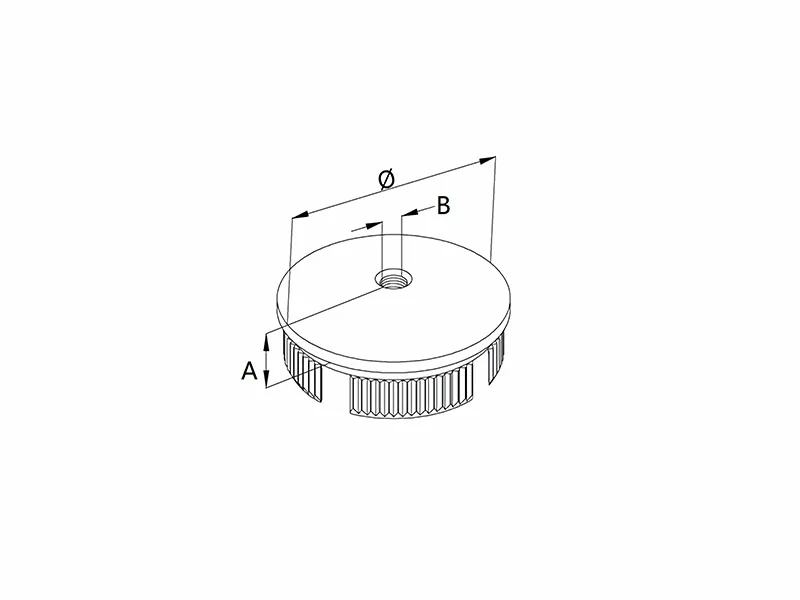

This round cap matches standard tube outer diameters (Ø) of 1.5 inches (38.1 mm) and 2 inches (50.8 mm). It features a 10 mm insertion skirt depth (A) equipped with a ribbed/knurled push-fit sleeve that seats firmly inside the tube wall, alongside a central M8 threaded hole (B) for hardware attachment. Precision-cast in high-performance AISI 304, AISI 316, or Duplex SS 2205 stainless steel and available in brushed satin or mirror-polished finishes, these versatile handrail fittings provide long-lasting durability and corrosion resistance as a reliable Handrail Support accessory in residential, commercial, and marine balustrade applications.
|
Category |
Part NO. |
Fit for Tube
(mm) |
A (mm) |
B (mm) |
Ø (mm) |
Material |
Surface |
Place of Production |
|
Handrail Supports |
E1650 |
Ø50.8 × 1.5
|
10 |
M8 |
50.8 |
AISI 304, 316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Design Style: Contemporary, Modern, European, Craftsman
5. Certificate: ISO9001:2015
6. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
7. Certificates: Material Certificates, Dimension Inspection Certificate
8. Lead Time : 60days batch production after handrail support cap samples approved
9. Warranty Service: 1 Year
10. After-sales Service: Online Technical Support, Return And Replacement
Q1: What is the primary function of this Round End Cap with an M8 threaded hole?
A: This end cap seals open tubular post tops to create a smooth, finished surface while supplying an internal M8 threaded connection point for handrail support saddles or brackets.
Q2: How is the Round End Cap installed into the post or tube?
A: The cap features a 10 mm knurled/ribbed insertion skirt (A) that press-fits directly into the end of the matching round pipe, holding securely without requiring external fasteners.
Q3: What tube sizes are compatible with this end cap?
A: This cap is designed to fit standard round posts and handrail tubes with outer diameters of 1.5 inches (38.1 mm and 2 inches (50.8 mm).
Q4: Which stainless steel material grade should be selected for outdoor or marine use?
A: Select AISI 316 or Duplex SS 2205 stainless steel for outdoor, marine, or coastal installations to ensure maximum resistance against salt spray, atmospheric oxidation, and chloride pitting.
