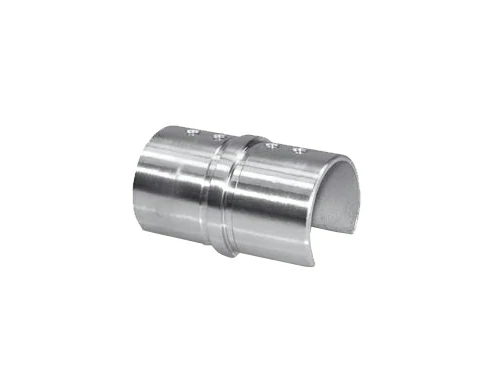

The Slotted Handrail Connector is a precision inline fitting designed to join two sections of slotted stainless steel tubing in a straight line, creating a smooth and continuous handrail. Engineered for Ø42.4mm and Ø48.3mm slotted tubes, this connector ensures perfect axial alignment while maintaining the integrity of the slot for glass panel integration. Its flush-fit design allows the tubing to slide seamlessly over the connector, delivering a clean, uninterrupted appearance without the need for welding or complex fabrication. Manufactured from high-quality AISI 304 or 316 stainless steel and available in satin or mirror polished finishes, it offers excellent corrosion resistance, durability, and long-term performance. As a key component in handrail connector systems and handrail fittings, it provides a secure, stable, and visually refined solution for extending handrails in architectural railing applications.
|
Category |
Part NO. |
Fit for Tube
(mm) |

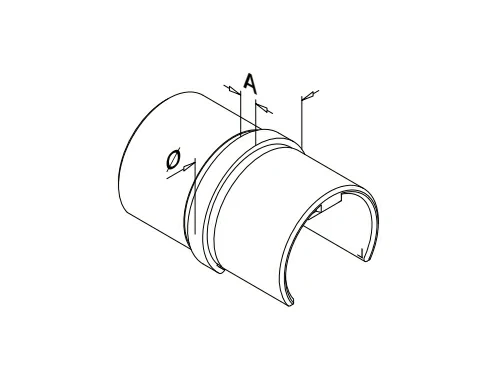

A (mm) |
Ø (mm) |
Material |
Surface |
Place of Production |
|
Slotted Tube IN-LINE |
SL100242 |
Ø42.4 x 1.5 |
30 | 42.4 |
Stainless Steel 304 / 316 |
Satin or Mirror polished |
Shandong, China |
|
Slotted Tube IN-LINE |
SL100248 |
Ø48.3 x 1.5 |
35 | 48.3 |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Design Style: Contemporary, Modern, European, Craftsman
5. Certificate: ISO9001:2015
6. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
7. Certificates: Material Certificates, Dimension Inspection Certificate
8. Lead Time : 60days batch production after handrail connector samples approved
9. Warranty Service: 1 Year
10. After-sales Service: Online Technical Support, Return And Replacement
Q1. What is the main purpose of an inline Slotted Handrail Connector?
A: This connector is used to join two separate sections of slotted tubing in a straight line. It allows you to extend the overall length of a handrail run while maintaining perfect alignment and a smooth, snag-free surface along the entire length of the railing.
Q2. How does the connector prevent the handrail from rotating or slipping?
A: The fitting is specifically designed to sit precisely within the longitudinal slots of the tubing. This internal locking mechanism creates a stable, non-rotational connection that prevents the handrail sections from shifting or sliding under normal structural loads.
Q3. Which stainless steel grade is recommended for my environment?
A: These handrail fittings are typically available in two high-performance grades:
Grade 304: Best for interior residential or commercial applications.
Grade 316: Highly recommended for outdoor, coastal, or high-moisture environments due to its superior resistance to corrosion.
Q4. Is welding required to install these connectors?
A: No, these connectors are designed for a "weld-free" installation. They are typically secured using high-strength industrial adhesives, which provide a permanent, structural bond while maintaining a much cleaner and more modern appearance than traditional welding.
Q5. Are these connectors compatible with glass railing systems?
A: Yes. These are a standard component for glass cap rails. The "slotted" design is specifically engineered to accommodate the tubing used on top of glass panels, providing a continuous, protected handrail edge for frameless or semi-frameless balustrades.
Q6. What finishes are available to match other hardware?
A: To suit various architectural styles, the Slotted Handrail Connector is usually offered in professional Satin (brushed) or high-luster Mirror Polished stainless steel finishes.
Inquiry Stainless Steel Slotted Tube Fittings for Handrail in Other Sizes, please contact us.
