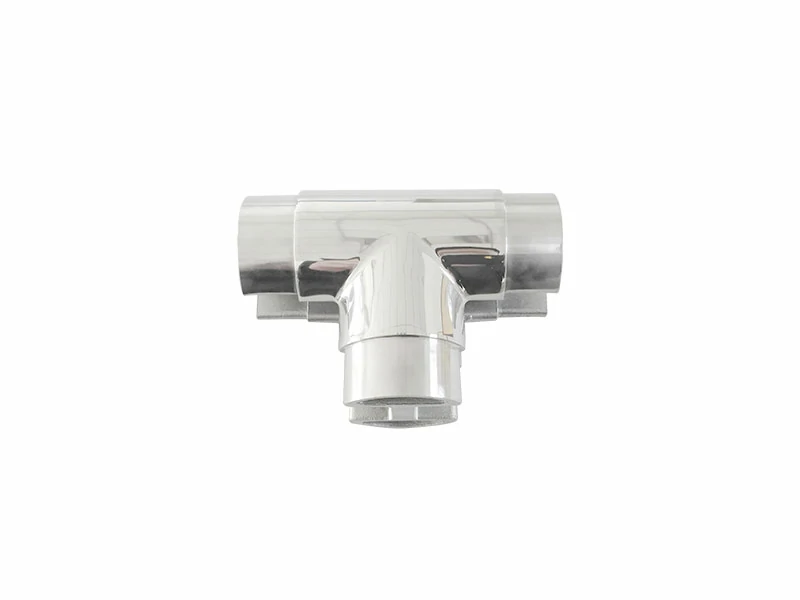

The Tube T Connector is a precision-engineered fitting designed for slotted tube railing systems, enabling secure 90° T-shaped intersections in frameless glass balustrades. Specifically developed for Ø50.8mm stainless steel slotted tubes, this connector allows a third rail section to branch seamlessly from a continuous handrail, ensuring both structural integrity and a clean, modern appearance. The integrated slotted design features U-shaped cutouts that align with glass panels, allowing direct installation with rubber gaskets for a secure, non-invasive fit. Manufactured from high-quality AISI 304 or 316 stainless steel and available in satin or mirror finishes, this component offers excellent corrosion resistance, durability, and aesthetic consistency for both indoor and outdoor applications. As a key part of slotted tube railing fittings and stainless steel handrail fittings, it simplifies installation while maintaining a strong, stable connection.
|
Category |
Part NO. |
Fit for Tube
(mm) |

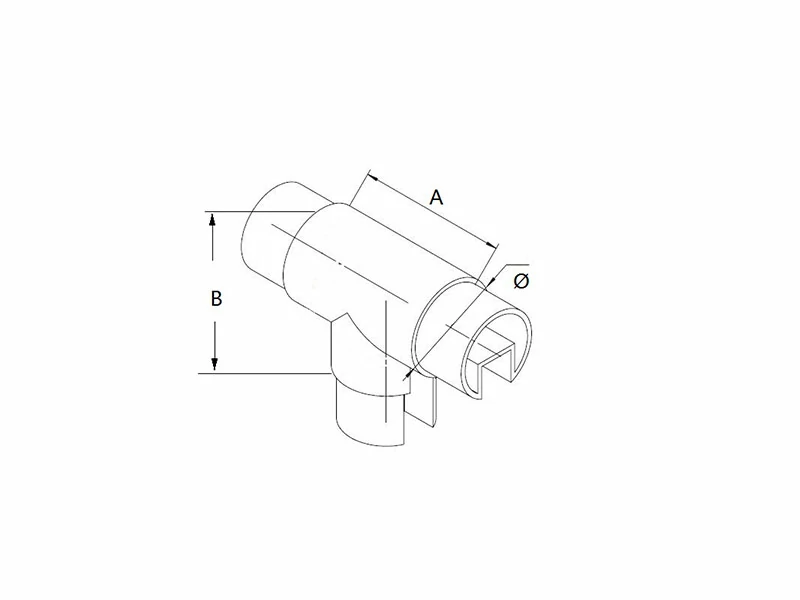

A (mm) |
B (mm) |
Ø (mm) |
Material |
Surface |
Place of Production |
|
Slotted Tube Fittings |
SL100550 |
Ø50.8 x 1.5
|
74 | 67 |
50.8 |
Stainless Steel 304 / 316 |
Satin or Mirror polished |
Shandong, China |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Design Style: Contemporary, Modern, European, Craftsman
5. Certificate: ISO9001:2015
6. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
7. Certificates: Material Certificates, Dimension Inspection Certificate
8. Lead Time : 60days batch production after tube joiner samples approved
9. Warranty Service: 1 Year
10. After-sales Service: Online Technical Support, Return And Replacement
Q1. What is the primary purpose of a Tube T Connector in a glass railing?
A: The Tube T Connector is used to create a 90-degree branching intersection in a handrail run, allowing a third tube section to connect seamlessly to an existing line for functional and aesthetically pleasing designs.
Q2. How does the "slotted" design work with glass panels?
A: The connector features "U" shaped cutouts at the ends designed to slide directly over the top edge of glass panels. During installation, the glass is typically held in place within these slots using a rubber gasket and high-strength stainless steel adhesive to ensure a permanent, secure bond.
Q3. Which stainless steel grade should I choose for my project?
A: These stainless steel handrail fittings are manufactured in Grade 304 for indoor applications and Grade 316 for outdoor or coastal environments where superior corrosion resistance is required.
Q4. Can this connector be used for stair transitions?
A: Yes, it is commonly used in stair transitions to join level handrail runs to vertical or angled posts, ensuring the railing system remains continuous and safe throughout the transition.
Q5. What finishes are available to match my architectural style?
A: To match modern design preferences, these connectors are available in both Satin (Brushed) and Mirror (Polished) finishes.
Q6. Does the connector prevent the handrail from rotating?
A: Yes, the precision fit of the connector within the internal slots of the tubing ensures a locked connection that prevents rotation or movement under normal loads and impacts.
Inquiry Stainless Steel Slotted Tube Fittings for Handrail in Other Sizes, please contact us.
