The Slotted Base Plate is a robust wall-mounted fitting designed to securely anchor slotted handrail tubing to vertical surfaces while maintaining a clean and professional finish. Engineered for Ø42.4mm and Ø48.3mm stainless steel tubes, this base plate features a precision-formed socket that ensures a tight and stable connection for handrails in glass balustrade and architectural railing systems. The circular mounting plate, typically available in 90mm or 95mm diameters, includes pre-drilled holes for easy and secure installation using screws or anchors. With a projection depth of 30mm or 35mm, it provides optimal spacing from the wall while maintaining structural integrity. Manufactured from high-quality AISI 304 or 316 stainless steel and offered in satin or mirror polished finishes, the Slotted Base Plate delivers excellent corrosion resistance, durability, and long-term performance. As an essential component in base plate systems and handrail fittings, it ensures reliable support and alignment for both indoor and outdoor railing installations.
|

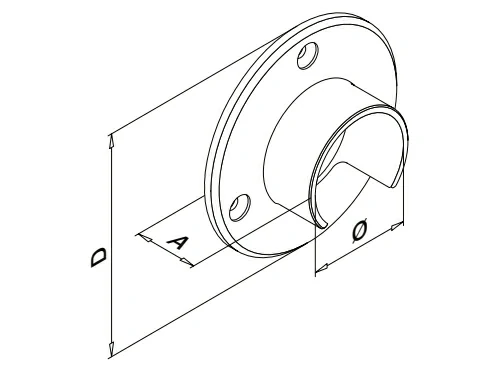

Category |
Part NO. |
Fit for Tube
(mm) |
A (mm) |
D (mm) |
Ø (mm) |
Material |
Surface |
Place of Production |
|
Slotted Tube Base Plate |
SL100342 |
Ø42.4 x 1.5 |
30 | 90 | 42.4 |
Stainless Steel 304 / 316 |
Satin or Mirror polished |
Shandong, China |
|
Slotted Tube Base Plate |
SL100348 |
Ø48.3 x 1.5 |
35 | 95 | 48.3 |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Design Style: Contemporary, Modern, European, Craftsman
5. Certificate: ISO9001:2015
6. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
7. Certificates: Material Certificates, Dimension Inspection Certificate
8. Lead Time : 60days batch production after base plate samples approved
9. Warranty Service: 1 Year
10. After-sales Service: Online Technical Support, Return And Replacement
Q1. What is the primary function of a Slotted Base Plate?
A: The main purpose of the Slotted Base Plate is to anchor handrail tubing securely to a mounting surface. It acts as a structural socket, holding the end of the tube firmly in place while hiding the mounting hardware for a cleaner, more professional look.
Q2. How does the "slotted" design help with installation?
A: The slotted profile within the flange allows for easier alignment with other handrail components. This design provides the necessary clearance to adjust the tube's position slightly after the plate has been mounted, which is vital for achieving perfectly straight runs on uneven wall surfaces.
Q3. Which material grade is best for my specific application?
A: Grade 304: Best for interior residential and commercial projects where the environment is dry and controlled.
Grade 316: Highly recommended for outdoor, coastal, or high-traffic public areas due to its superior resistance to atmospheric corrosion.
Q4. How is the base plate mounted to the wall?
A: The plate comes with pre-drilled holes, allowing it to be quickly secured to wood, concrete, or steel surfaces using standard mounting screws or bolts. Once the plate is fixed, the handrail tube is inserted into the cup and typically secured with a high-strength fixative.
Q5. Does it require welding?
A: No. These handrail fittings are designed for a weld-free installation process. This prevents damage to the brushed or polished surface finish and allows for a faster, more cost-effective assembly on-site.
Inquiry Stainless Steel Slotted Tube Fittings for Handrail in Other Sizes, please contact us.
