The Stainless Steel Tube Cap with an integrated self-grip mechanism is a premium, durable hardware component designed for finishing architectural handrail tubes with a professional and secure closure. Engineered specifically for heavy-duty Ø50.8mm railing tubing, this high-performance handrail end cap provides a clean, modern, and flat polished look without demanding the use of ugly external set screws, drilling, or complex on-site welding. This flat structural profile serves as a vital decorative and safety element across diverse architectural layouts—such as commercial hotels, corporate centers, luxury villas, schools, and retail malls—where it delivers an attractive and easy-to-install terminal seal for exposed metal pipe ends.

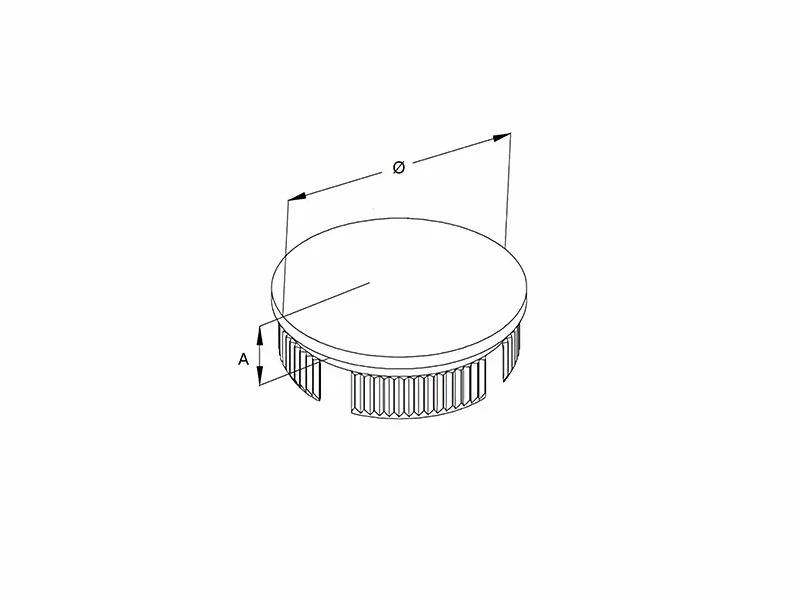

This handrail fitting features a modern flat top with an internal multi-segmented ribbed collar base. The specialized ribbed fins compress tightly inside the hollow tube profile to provide a secure “hit and done” mechanical press-fit installation. Forged from superior raw materials, this hardware is manufactured using high-quality AISI 304, AISI 316, or Duplex SS 2205 stainless steel, providing exceptional durability and premium corrosion resistance for both interior and exterior handrail fittings. Precision-machined to fit standard 50.8mm outer diameter tubes with an insertion height (A) of 10mm, the joint can be customized in either a sleek brushed satin or a highly reflective mirror-polished surface finish to match your specific layout hardware.
|
Category |
Part NO. |
Fit for Tube
(mm) |
A (mm) |
Ø (mm) |
Material |
Surface |
Place of Production |
| End Caps |
B0250 |
Ø50.8 x 1.5
|
10 |
50.8 |
AISI 304,316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Design Style: Contemporary, Modern, European, Craftsman
5. Certificate: ISO9001:2015
6. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
7. Certificates: Material Certificates, Dimension Inspection Certificate
8. Lead Time : 60days batch production after end cap samples approved
9. Warranty Service: 1 Year
10. After-sales Service: Online Technical Support, Return And Replacement
Q1. What makes the Stainless Steel Tube Cap self-grip mechanism unique?
A: Unlike standard plug caps that rely on messy adhesives or visible set screws, our End Cap SELF GRIP hardware uses a multi-segmented ribbed insert base. These heavy-duty vertical ridges compress slightly against the internal pipe wall as it is driven into place, establishing a high-friction, permanent structural grip that won't wiggle loose.
Q2. What are the precise dimensions of this handrail end cap?
A: This model is precision-manufactured specifically to fit standard architectural tubes with an outer diameter of 50.8 mm. The insert collar features an depth insertion height (A) of 10mm.
Q3. How is this self-grip tube cap installed on site?
Installation is incredibly fast and efficient, making it a popular option for lowering labor times on massive commercial jobs. It utilizes a "hit and done" friction-lock mechanism; simply align the ribbed collar with the raw cut end of your 50.8mm tube and drive it fully home using a non-marring rubber mallet until the flat shoulder seats perfectly flush against the pipe rim.
Q4. Which stainless steel grade should I select for outdoor versus indoor environments?
A: For interior architectural staircases, corridors, and climate-controlled commercial hallways, our Grade 304 stainless steel offers outstanding durability and long-lasting strength. For outdoor applications, seaside balconies, high-humidity poolsides, or exposed public walkways, we highly recommend selecting marine-grade Grade 316 or Duplex SS 2205 stainless steel to provide premium protection against environmental rust, oxidation, and pitting.
Q5. What surface finish options are available for this product?
A: To ensure complete aesthetic harmony with your existing handrail assemblies, our flat self-grip tube caps are available in two premium industry finishes: a sophisticated brushed satin finish or a highly reflective mirror-polished surface finish.
