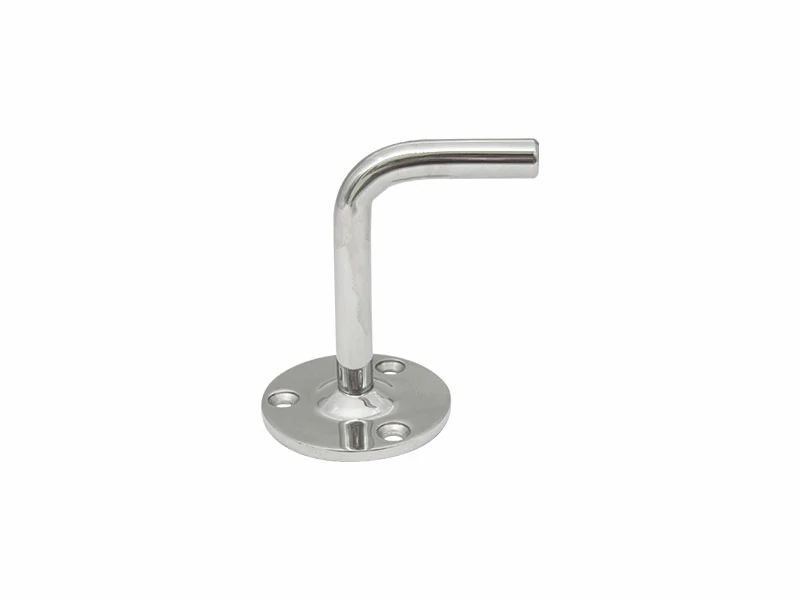

The Stainless Steel Hand Rail Bracket without Plate is a streamlined, high-strength mounting component engineered to anchor handrails directly to structural walls, upright balustrade posts, or newel posts. Designed without a traditional top saddle plate, this bracket features a solid cylindrical support stem with a horizontal pin interface, allowing for direct welding or specialized concealed mechanical attachment to steel handrails.

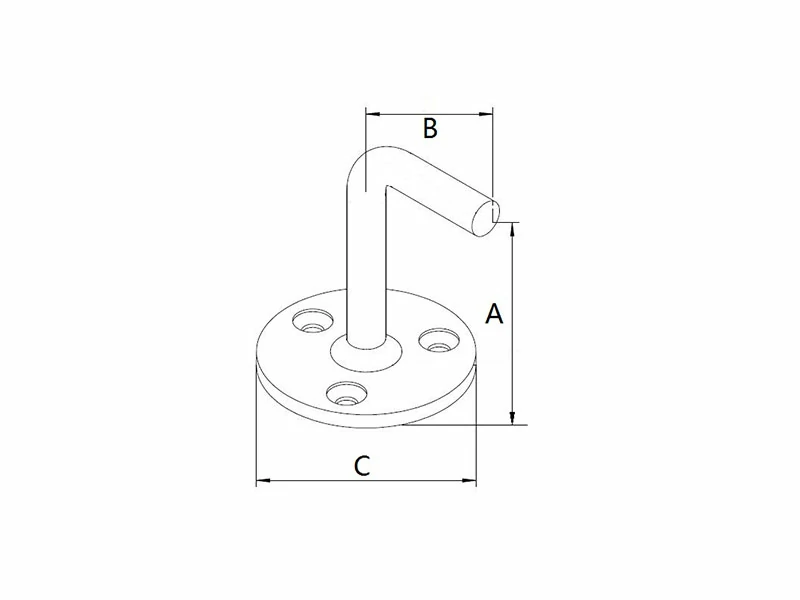

The wall-mounted design features a compact circular base flange with three pre-drilled countersunk holes for flush, secure fastening using standard screws or anchors. Technical geometric specifications include a vertical wall clearance height offset (A) of 85 mm, a horizontal stand-off projection (B) of 62 mm, and a mounting base diameter (C) of 63 mm.
Manufactured from high-grade AISI 304, AISI 316, and Duplex SS 2205 stainless steel with fine brushed satin or high-luster mirror polished surface treatments, these premium handrail fittings deliver long-lasting durability, sleek visual appeal, and low-maintenance performance in both residential and commercial spaces.
|
Category |
Part NO. |
A (mm) |
B (mm) |
C (mm) |
Material |
Surface |
Place of Production |
| Handrail Brackets |
D0300 |
85 | 62 |
63 |
AISI 304,316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Installation Location: Flooring / Wall
5. Design Style: Contemporary, Modern, European, Craftsman
6. Certificate: ISO9001:2015
7. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
8. Certificates: Material Certificates, Dimension Inspection Certificate
9. Lead Time : 60days batch production after handrail bracket samples approved
10. Warranty Service: 1 Year
11. After-sales Service: Online Technical Support, Return And Replacement
Q1: What is the main structural feature of this Steel Hand Rail Bracket without Plate?
A: Unlike standard brackets with flat or curved top saddle plates, this bracket features a plain terminal arm without an attached saddle plate. This compact, minimalistic design is ideal for direct welding to stainless steel handrails or custom mounting configurations.
Q2: What are the key technical dimensions of this bracket?
A: Based on standard geometric parameters:
Height / Vertical Clearance (A): 85 mm (distance from the base plate edge to the horizontal arm centerline)
Projection / Stand-Off (B): 62 mm (horizontal clearance from the back of the base to the end of the support arm)
Base Outer Diameter (C): 63 mm circular mounting flange with 3 countersunk fixing holes
Q3: Where can this Stainless Steel Bracket Handrail hardware be installed?
A: This versatile bracket mounts directly onto structural walls, timber studs, masonry surfaces, or newel posts. It is widely used for interior and exterior staircases, ramps, corridors, and balconies requiring minimalist, high-strength handrail support.
Q4: Which stainless steel grade should I select for my project?
A: Material selection depends on environmental exposure:
AISI 304: Best suited for dry, climate-controlled indoor spaces, residential stairwells, and commercial corridors.
AISI 316: Ideal for general outdoor applications, exterior balconies, decks, and humid indoor pool enclosures.
Duplex SS 2205: Engineered for harsh marine conditions, coastal properties exposed to salt air, and heavy chemical industrial environments requiring extreme tensile strength and corrosion resistance.
Q4: What surface finishes are available for these fittings?
A: Brackets are available in a practical brushed satin finish (ideal for hiding smudges and fingerprints in high-traffic areas) and a reflective mirror polished finish (offering enhanced smooth surface protection against outdoor environmental degradation).
