The Rectangular Tube Wall Flange is a high-performance architectural component designed to securely anchor 25x50mm rectangular tubing to flat surfaces, such as walls or structural posts. As an essential part of modern handrail fittings, this Wall Flange provides a stable socket-style connection that ensures the structural integrity of the railing while maintaining a clean, professional finish. Manufactured from premium AISI 304 or 316 stainless steel, it is available in mirror-polished or satin finishes to suit both interior and exterior environments. This Rectangular Tube Flange features a pre-drilled base plate for efficient surface mounting, making it a reliable solution for residential balconies, commercial staircases, and industrial guardrails that require a robust wall-to-rail transition.
|
Category |
Part NO. |
Fit for Tube
(mm) |

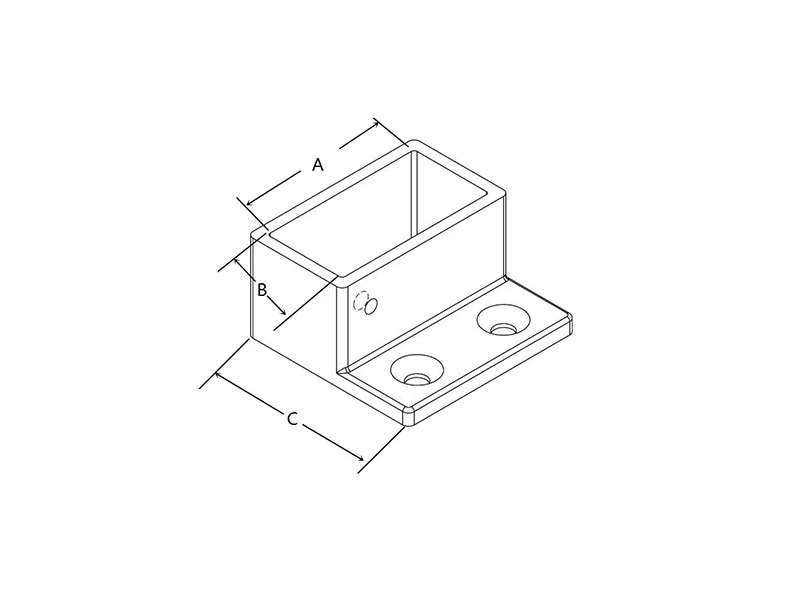

A (mm) |
B (mm) |
C
(mm) |
Material |
Surface |
Place of Production |
|
Rectangular Fittings |
RCT042550 |
25 x 50
|
50 | 25 | 26 |
Stainless Steel 304 / 316 |
Satin or Mirror polished |
Shandong, China |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Design Style: Contemporary, Modern, European, Craftsman
5. Certificate: ISO9001:2015
6. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
7. Certificates: Material Certificates, Dimension Inspection Certificate
8. Lead Time : 60days batch production after wall flange samples approved
9. Warranty Service: 1 Year
10. After-sales Service: Online Technical Support, Return And Replacement
Q1. What tube size is the Rectangular Tube Wall Flange compatible with?
A: This flange is precision-engineered specifically for 25x50mm rectangular stainless steel tubing, providing a snug and secure socket fit.
Q2. Is this flange suitable for outdoor or coastal installations?
A: Yes, provided you select the Grade 316 stainless steel option. While Grade 304 is excellent for interior use, Grade 316 is mandatory for outdoor or coastal environments due to its superior resistance to corrosion and pitting.
Q3. How is the Wall Flange installed?
A: The flange features a heavy-duty base plate with two pre-drilled holes. It is surface-mounted to the wall or post using appropriate architectural screws or anchors. Once the flange is secured, the rectangular tube is inserted into the socket and can be further stabilized with industrial adhesives or set screws.
Q4. Can this flange be used for both handrails and floor mounts?
A: While primarily used as a Wall Flange to terminate handrails into walls, its robust design also allows it to function as a light-duty base plate for vertical posts in specific interior applications. However, for high-load floor anchoring, a dedicated heavy-duty base plate is typically recommended.
Q5. Does the flange help the railing meet safety codes?
A: Yes. By providing a rigid mounting point, the Rectangular Tube Wall Flange helps distribute loads into the building structure. When installed correctly into a solid substrate, it assists the entire railing system in meeting standard load requirements, such as the 200 lbf point load standard often required by building codes.
Inquiry about rectangular tube fittings in other sizes, please contact us.
