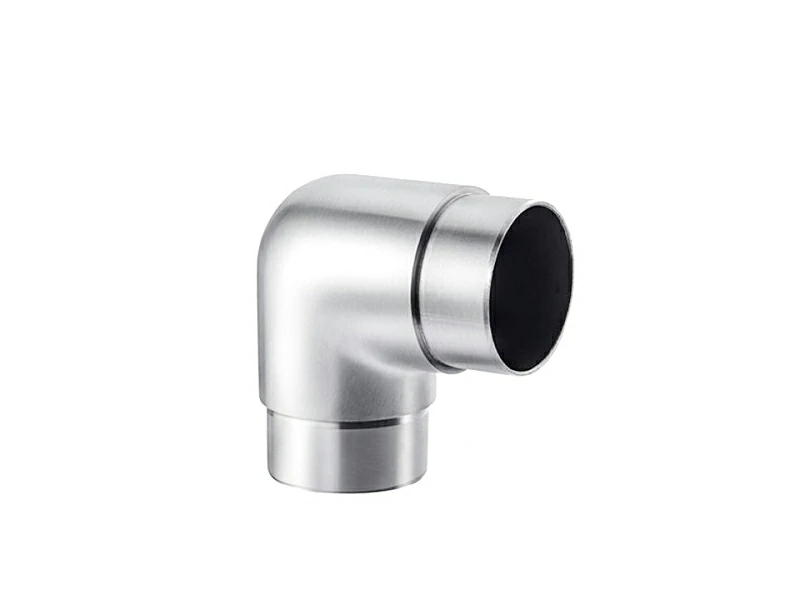

The Flush Elbow 90 Degree is a heavy-duty architectural fitting designed to create clean, seamless right-angle connections in professional handrail systems. Engineered specifically for a flush fit, this premium tube connector inserts directly into the railing pipes so that the outer surface sits perfectly uniform against the shoulder of the fitting. This smooth design eliminates unsightly or hazardous protrusions, allowing for an uninterrupted grip along transitional sections.
Fabricated from high-grade, corrosion-resistant stainless steel—available in AISI 304, AISI 316, or Duplex SS 2205—this 90-degree joiner provides superior structural integrity for both indoor and outdoor layouts. To help you maintain a cohesive and uniform architectural style, these modern handrail fittings are available in various structural sizes to accommodate different tube diameters and can be specified in either a sleek brushed satin or a highly reflective mirror-polished surface finish.
|
Category |

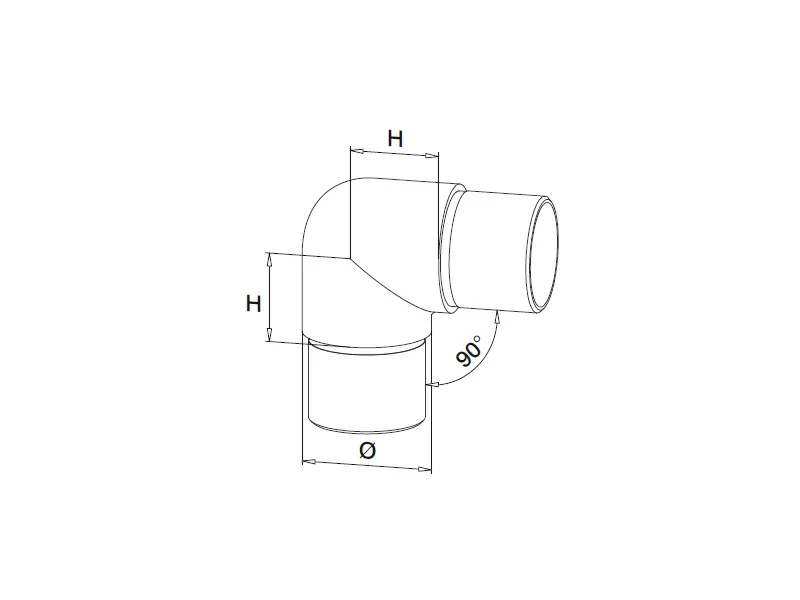

Part NO. | Ø |
H |
Material |
Surface |
Place of Production |
| Tube Joiners |
A003.33.20 |
33.7x2.0mm |
25mm |
AISI 304,316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
|
Tube Joiners |
A003.42.20 |
42.4x2.0mm |
30mm |
|||
|
Tube Joiners |
A003.42.26 |
42.4x2.6mm |
30mm |
|||
|
Tube Joiners |
A003.48.20 |
48.3x2.0mm |
35mm |
|||
|
Tube Joiners |
A003.48.26 |
48.3x2.6mm |
35mm |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Design Style: Contemporary, Modern, European, Craftsman
5. Certificate: ISO9001:2015
6. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
7. Certificates: Material Certificates, Dimension Inspection Certificate
8. Lead Time : 60days batch production after elbow joiner samples approved
9. Warranty Service: 1 Year
10. After-sales Service: Online Technical Support, Return And Replacement
Q1. What makes a fitting a "flush" elbow?
A: A flush fitting is precision-engineered to insert inside the handrail tubing, allowing the tube to rest perfectly tight against the center shoulder of the joint. This results in a continuous, streamlined surface with an identical outer diameter between the pipe and the connector.
Q2. In what environments can I install this Flush Elbow 90 Degree?
A: Thanks to its high-quality stainless steel composition, it is ideal for residential, commercial, and industrial settings. For outdoor decks, balconies, or coastal areas exposed to moisture and salt, we highly recommend selecting our AISI 316 or Duplex SS 2205 options for maximum rust resistance.
Q3. How are these handrail fittings typically installed?
A: These connectors allow for a fast, weld-free installation. They are positioned inside the matching handrail tubes and typically fixed securely into place using high-strength structural industrial adhesive or locked down with a discreet grub screw.
Q4. Can I customize this tube connector to match my existing railing finish?
A: Yes. To ensure a uniform look across your entire balustrade framework, our elbows can be supplied in a contemporary brushed satin or a brilliant mirror-polished finish.
Q5. Where is this 90-degree elbow most commonly utilized?
A: It is primarily used anywhere a sharp, professional right-angle transition is required, such as horizontal-to-vertical handrail returns, structural wall terminations, staircase landing corners, and modular balcony guardrails.
