The Stainless Steel Adjustable Railing Saddle Bracket is an articulated, heavy-duty post-top fitting engineered to support and attach handrail tubes to vertical baluster posts at variable pitch angles. Featuring an integrated swivel knuckle joint directly below the mounting plate, this adjustable bracket allows installers to set precise stair and ramp inclinations while maintaining high structural stability and a sleek architectural profile.

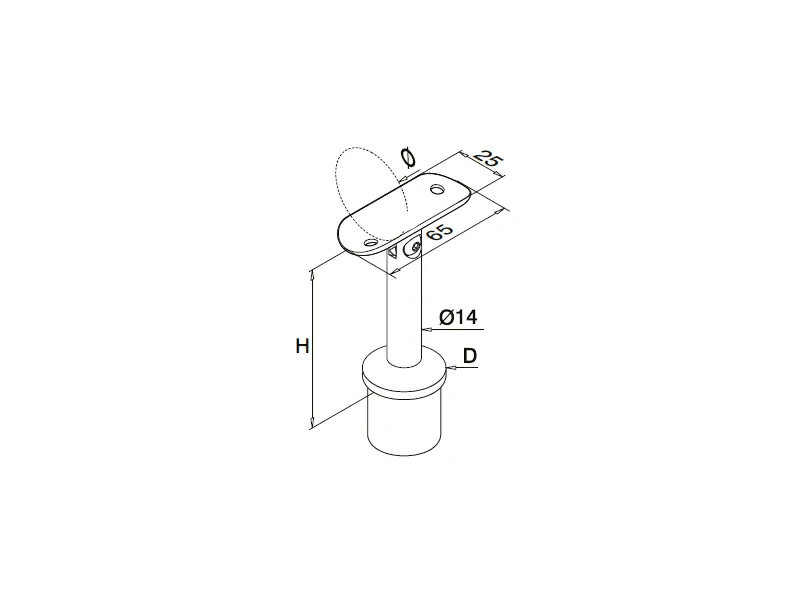

Equipped with a ∅ 14 mm solid vertical support stem, this fitting delivers a total vertical clearance height (H) of 80 mm from the lower post collar to the saddle plate. The articulated upper mounting plate measures 65 mm in length by 25 mm in width, available in a flat profile for rectangular or wooden handrails, as well as curved profile curvatures (∅) tailored for 33.7 mm, 42.4 mm, and 48.3 mm round handrail tubing. The lower mounting collar (D) press-fits into vertical posts with outer diameters of 33.7 mm, 42.4 mm, or 48.3 mm. Precision-manufactured from high-grade stainless steel options—AISI 304, AISI 316, and Duplex SS 2205—and offered in brushed satin (matte) or mirror-polished (shiny) finishes, these premium Railing Fittings provide an essential, field-adjustable solution for modern Handrail Supports assemblies.
|
Category |
Part NO. | D |
Ø |
H |
Material |
Surface |
Place of Production |
|
Handrail Supports |
F002.33.00 |
33.7 × 2.0mm |
Flat |
80mm |
AISI 304, 316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
|
Handrail Supports |
F002.33.33 |
33.7 × 2.0mm |
33.7mm |
80mm |
|||
|
Handrail Supports |
F002.33.42 |
33.7 × 2.0mm |
42.4mm |
80mm |
|||
|
Handrail Supports |
F002.42.00 |
42.4 × 2.0mm |
Flat |
80mm |
|||
|
Handrail Supports |
F002.42.42 |
42.4 × 2.0mm |
42.4mm |
80mm |
|||
|
Handrail Supports |
F002.42.48 |
42.4 × 2.0mm |
48.3mm |
80mm |
|||
|
Handrail Supports |
F002.48.00 |
48.3 × 2.0mm |
Flat |
80mm |
|||
|
Handrail Supports |
F002.48.42 |
48.3 × 2.0mm |
42.4mm |
80mm |
|||
| Handrail Supports |
F002.426.42 |
42.4 × 2.6mm |
42.4mm |
80mm |
|||
|
Handrail Supports |
F002.426.48 |
42.4 × 2.6mm |
48.3mm |
80mm |
|||
|
Handrail Supports |
F002.486.42 |
48.3 × 2.6mm |
42.4mm |
80mm |
|||
|
Handrail Supports |
F002.486.48 |
48.3 × 2.6mm |
48.3mm |
80mm |
1. Tube Thickness: 2.0mm or 2.6mm
2. Manufacturing Process: Investment Casting + Precision Machining+Polishing
3. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Warehouse, Workshop, Park, Wine Cellar, Entry, etc.
4. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
5. Installation Location: Floor / Wall
6. Certificate: ISO9001:2015
7. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects, Others
8. Certificates: Material Certificates, Dimension Inspection Certificate
9. Lead Time : 45days for samples making +50days batch production after railing support samples approved
10. Warranty Service: 1 Year
11. After-sales Service: Online Technical Support, Return And Replacement
Q1: What is the main advantage of an Adjustable Railing Saddle Bracket?
A: The integrated swivel joint allows the upper saddle plate to pivot freely, allowing installers to match the exact pitch angle of staircases or ramps on site before locking the fastener.
Q2: How is the pitch angle locked in place during installation?
A: Once the upper saddle plate is rotated to match the handrail slope, tightening the integrated side hex/Allen screw locks the swivel joint firmly at the desired angle.
Q3: What handrail and post dimensions are compatible with this bracket?
A: The lower post connector (D) and upper saddle profile (∅) both support standard round tube outer diameters of 33.7 mm, 42.4 mm, and 48.3 mm (with flat saddle options available for flat-bottomed handrails).
Q4: Which stainless steel material grade is recommended for outdoor or marine use?
A: Select AISI 316 or Duplex SS 2205 stainless steel for outdoor, coastal, or marine installations to ensure maximum protection against chloride pitting, salt spray, and atmospheric rust.
