The Handrail Elbow 135 Degree is a heavy-duty architectural component engineered to facilitate smooth, angled transitions in modular handrail and balustrade layouts. Perfect for navigating custom corners, specialized slopes, and octagonal balcony perimeters, this premium tube connector allows for secure connections at an exact 135-degree angle.
Constructed from superior-grade stainless steel (available in AISI 304, AISI 316, or Duplex SS 2205), this elbow joiner delivers outstanding structural integrity and long-term resistance to rust and environmental wear. Designed as a internal “flush” fitting, the architectural tubing sits perfectly tight against the center shoulder of the joint. This creates a continuous, snag-free surface with a uniform outer diameter, ensuring an elegant and safe grip. Available in multiple size configurations to fit standard structural pipes, these essential handrail fittings can be customized in either a sleek brushed satin or a highly reflective mirror-polished surface finish to match your architectural requirements.
|
Category |

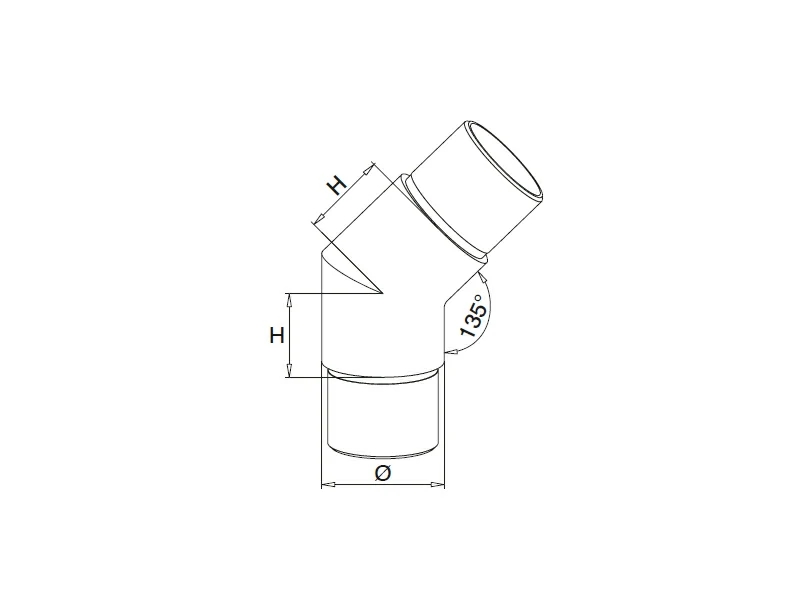

Part NO. | Ø |
H |
Material |
Surface |
Place of Production |
| Tube Joiners |
A004.33.20 |
33.7x2.0mm |
25mm |
AISI 304,316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
|
Tube Joiners |
A004.42.20 |
42.4x2.0mm |
30mm |
|||
|
Tube Joiners |
A004.42.26 |
42.4x2.6mm |
30mm |
|||
|
Tube Joiners |
A004.48.20 |
48.3x2.0mm |
35mm |
|||
|
Tube Joiners |
A004.48.26 |
48.3x2.6mm |
35mm |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Design Style: Contemporary, Modern, European, Craftsman
5. Certificate: ISO9001:2015
6. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
7. Certificates: Material Certificates, Dimension Inspection Certificate
8. Lead Time : 60days batch production after elbow joiner samples approved
9. Warranty Service: 1 Year
10. After-sales Service: Online Technical Support, Return And Replacement
Q1. What architectural layouts require a Handrail Elbow 135 Degree?
A: This fitting is specifically designed for non-right-angle configurations, making it the ideal choice for multi-angled staircases, ramp landings, bay windows, and octagonal deck or balcony glass balustrade frameworks.
Q2. What is the benefit of a "flush" fitting design?
A: A flush fitting inserts directly inside the handrail pipe, allowing the tubing to rest tightly against the center shoulder of the connector. This ensures a uniform, continuous outer profile without bulky lips or hazardous edges.
Q3. How is this tube connector installed?
It is engineered for clean, quick, and weld-free field installation. The internal connectors insert into the matching handrail tubes and are typically bonded using high-strength industrial structural adhesive or secured firmly with a small, discreet grub screw.
Q4. Can these handrail fittings be installed outdoors?
A: Yes. While AISI 304 stainless steel is ideal for interior applications, we offer marine-grade AISI 316 and Duplex SS 2205 alternatives, providing maximum defense against corrosion and pitting in high-humidity or coastal exterior settings.
Q5. What options are available for customization?
A: To ensure complete visual integration with your handrail system, our 135-degree elbows can be precision-manufactured to match your required pipe diameter and finished in either a modern brushed satin or a brilliant mirror-polished surface.
