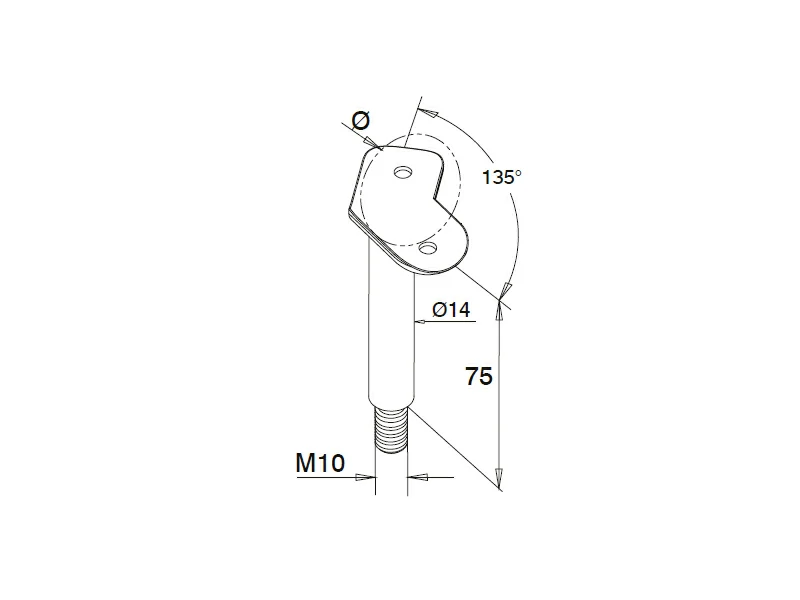

The Stainless Steel Handrail Saddle Stem 135° Top Plate is a handrail support bracket designed to connect handrails at a 135-degree angle. The top plate is angled at 135°, making it ideal for non-rectangular installations where the handrail needs to meet at a larger angle. The saddle is designed for two specific tube diameters: 42.4mm and 48.3mm. The stem is threaded with an M10 thread, which allows for secure attachment of the saddle to other parts of the structure using an M10 nut or bolt. The Handrail Saddle Stem is made from AISI 304, AISI 316, or Duplex SS 2205 stainless steel, comes in satin or mirror polished finishes. These handrail supports are typically used in handrail systems where angled connections are required, such as in staircases, balustrades, or curved architectural features.
|
Category |
Part NO. |
Ø |
H |
Material |
Surface |
Place of Production |
|
Handrail Supports |
F008.14.42 |
42.4mm |
75mm |
AISI 304, 316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
|
Handrail Supports |
F008.14.48 |
48.3mm |
75mm |
1. Tube Thickness: 2.0mm or 2.6mm
2. Manufacturing Process: Investment Casting + Precision Machining+Polishing
3. Advantage: Easier and quicker installatio; Easier cleaning and maintenance
4. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Warehouse, Workshop, Park, Wine Cellar, Entry, etc.
5. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
6. Installation Location: Floor / Wall
7. Certificate: ISO9001:2015
8. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects, Others
9. Certificates: Material Certificates, Dimension Inspection Certificate
10. Lead Time : 45days for samples making +50days batch production after railing support samples approved
11. Warranty Service: 1 Year
12. After-sales Service: Online Technical Support, Return And Replacement
