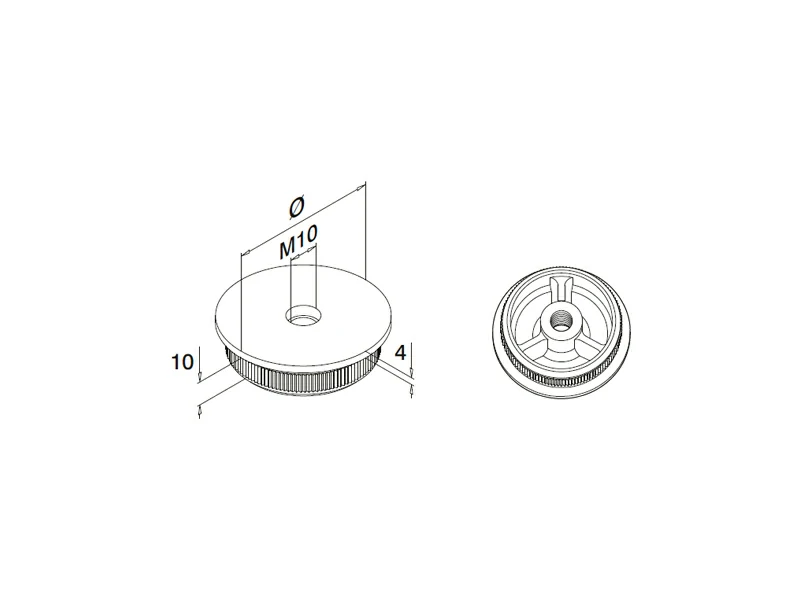

The Stainless Steel Flat End Cap is a functional and aesthetic component used to seal the open ends of tubular railings or handrails. Unlike a dome top cap, the flat end cap features a clean, horizontal top surface, which provides a modern, minimalist look. It has a flat face and a threaded hole for attaching additional components or securing the cap in place, and allows for the attachment of screws, bolts, or other fasteners. These caps come in high-quality stainless steel grades such as AISI 304, AISI 316, or Duplex SS 2205, ensuring excellent corrosion resistance for both indoor and outdoor use. Stainless Steel Flat End Cap is essential for creating a clean, safe, and visually appealing railing system that complements both contemporary and classic designs.
|
Category |
Part NO. |
Ø |
Material |
Surface |
Place of Production |
|
Handrail Supports |
F015.42.20 |
42.4 × 2.0mm |
AISI 304, 316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
|
Handrail Supports |
F015.48.20 |
48.3 × 2.0mm |
|||
|
Handrail Supports |
F015.42.26 |
42.4 × 2.6mm |
|||
|
Handrail Supports |
F015.48.26 |
48.3 × 2.6mm |
1. Tube Thickness: 2.0mm or 2.6mm
2. Manufacturing Process: Investment Casting + Precision Machining+Polishing
3. Advantage: Easier and quicker installatio; Easier cleaning and maintenance
4. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Warehouse, Workshop, Park, Wine Cellar, Entry, etc.
5. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
6. Installation Location: Floor / Wall
7. Certificate: ISO9001:2015
8. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects, Others
9. Certificates: Material Certificates, Dimension Inspection Certificate
10. Lead Time : 45days for samples making +50days batch production after railing end cap samples approved
11. Warranty Service: 1 Year
12. After-sales Service: Online Technical Support, Return And Replacement
