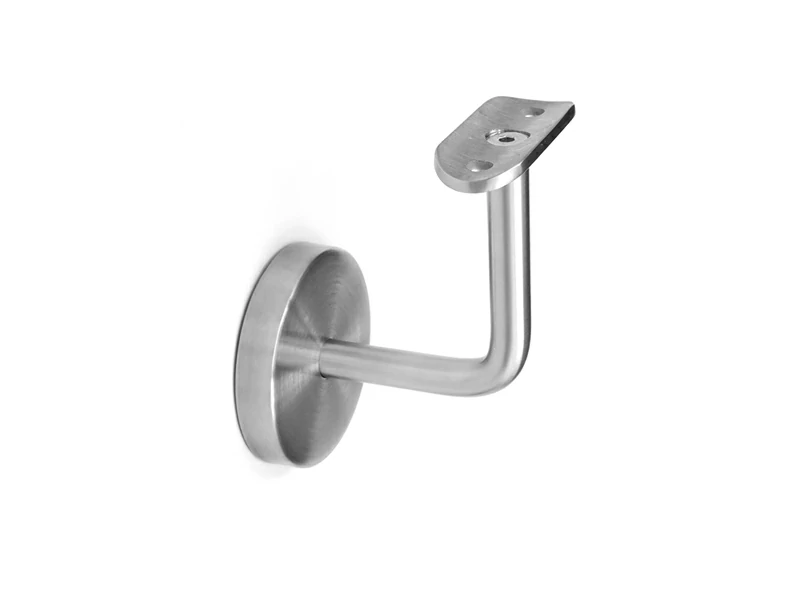

The Wall Mount Railing Bracket with Cover is a specialized stainless steel support fixture designed to anchor handrails securely to walls and vertical architectural surfaces. Engineered for both residential and commercial railing systems, this bracket combines structural integrity with a clean, modern aesthetic. It features a snap-on decorative cover flange that conceals wall-mounting screws and hardware, delivering a polished, minimalistic finish with no visible fasteners.

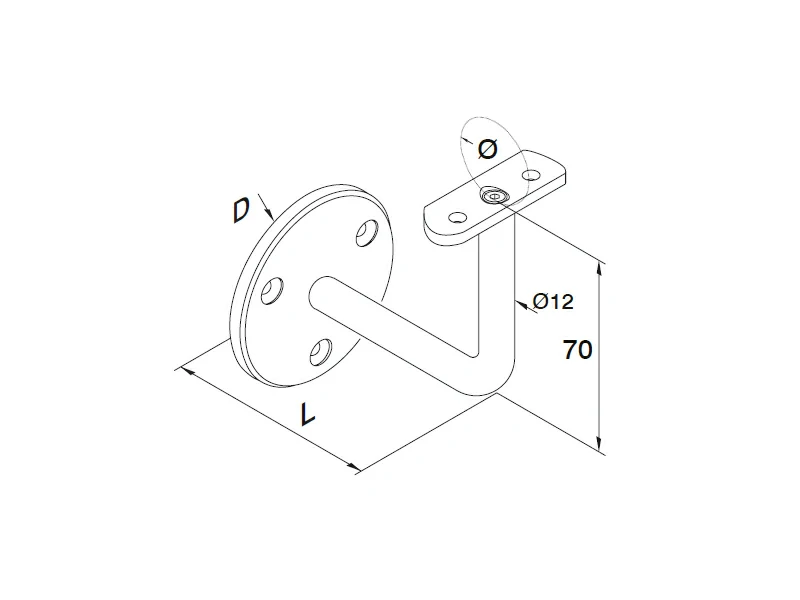

Constructed with a solid Ø 12 mm support rod, this wall-mounted fitting features a circular flange mounting plate (D = 60mm) for firm attachment to timber studs, masonry, or concrete walls. Technical specifications include an extended projection length (L) of 85 mm from the wall to the outer elbow bend, and a vertical height offset of 70 mm from the horizontal arm centerline to the top of the saddle. The top saddle plate is designed to accommodate flat-bottom handrails as well as standard cylindrical tubing with outside diameters of Ø 42.4 mm and Ø 48.3 mm.
Manufactured in AISI 304, AISI 316, and Duplex SS 2205 stainless steel material grades, these handrail brackets offer high corrosion resistance and long-lasting performance across diverse operating conditions. Available in brushed satin matte and highly reflective mirror polished finishes, these architectural handrail fittings satisfy strict safety standards while elevating interior and exterior spaces.
|
Category |
Part NO. | D | L | Ø |
Material |
Surface |
Place of Production |
|
Handrail Brackets |
E009.00.00 |
60mm | 85mm |
Flat |
AISI 304,316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
| Handrail Brackets |
E009.00.42 |
60mm | 85mm |
42.4mm |
|||
| Handrail Brackets |
E009.00.48 |
60mm | 85mm |
48.3mm |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Installation Location: Wall / Post
5. Design Style: Contemporary, Modern, European, Craftsman
6. Certificate: ISO9001:2015
7. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
8. Certificates: Material Certificates, Dimension Inspection Certificate
9. Lead Time : 60days batch production after handrail bracket samples approved
10. Warranty Service: 1 Year
11. After-sales Service: Online Technical Support, Return And Replacement
Q1: What is the main advantage of using a Wall Mount Railing Bracket with a cover?
A: The decorative cover plate snaps over the D = 60 mm circular flange to hide mounting screws and drill holes. This protects internal hardware from moisture and debris while providing a smooth, continuous architectural appearance.
Q2: Which handrail tube sizes and profiles fit this bracket?
A: The mounting saddle is contoured to support flat-bottom wooden or steel handrails, as well as round architectural tubes with outside diameters of Ø 42.4 mm and Ø 48.3 mm.
Q3: How do I select the right stainless steel grade for my project?
A: Material specification depends on the installation environment:
AISI 304: Ideal for indoor residential staircases, commercial hallways, and climate-controlled spaces.
AISI 316: Suitable for general outdoor walkways, balconies, and humid indoor settings requiring superior weather resistance.
Duplex SS 2205: Engineered for harsh marine environments, coastal decks, and industrial facilities exposed to salt fog or chemicals.
Q4: What surface finish options are available?
A: These brackets are available in a satin (brushed matte) finish that hides daily wear and fingerprints, or a mirror polished (shiny) finish for a high-end decorative shine that reduces dirt adhesion.
