for 12mm or 15mm Tempered Glass

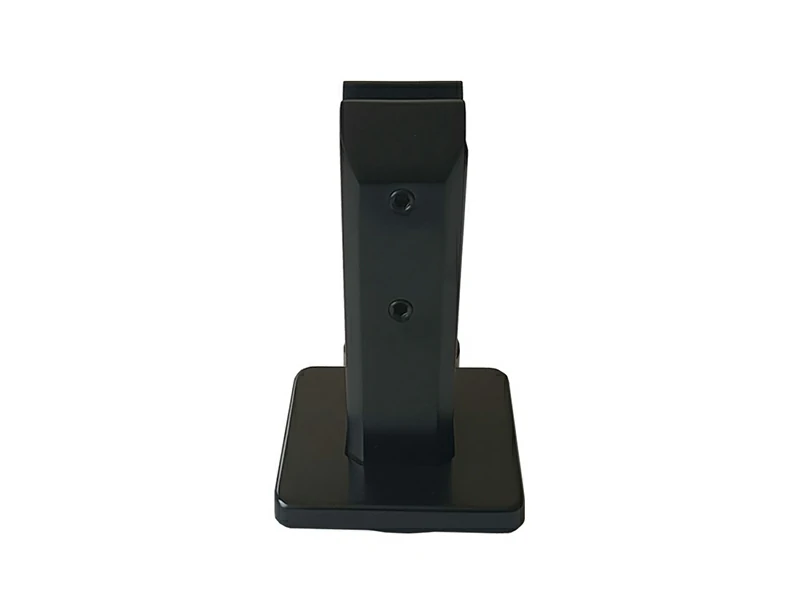

The Square Glass Spigot is a precision-engineered mounting solution designed to create stunning, modern, and frameless glass railing and fencing systems. Featuring a clean, geometric square base and an integrated cover plate, this glass spigot effectively conceals mounting hardware to deliver a sophisticated, refined finish.
Engineered for performance and durability, this spigot is manufactured from high-quality 316-grade stainless steel or Duplex 2205, materials renowned for their exceptional resistance to corrosion, rust, and wear. It is specifically designed to accommodate 12mm or 15mm glass panels and features a robust clamping mechanism for secure, long-lasting installation. Whether you are installing pool fences, balconies, or staircases, these handrail fittings are available in three elegant finishes—satin polish, mirror polish, or contemporary matte black—to perfectly complement your architectural design.

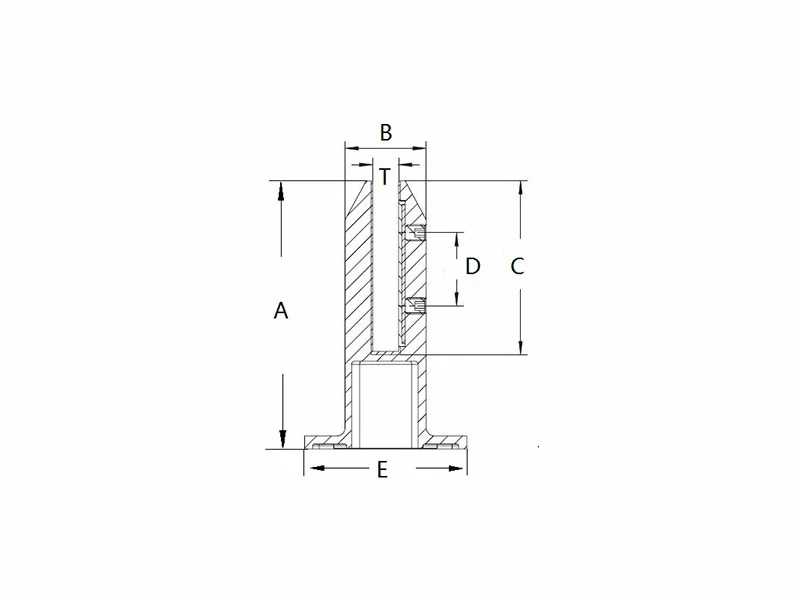

| Category | Part NO. | A | B | C | D | E | T | Material | Surface |
| Glass Fencing Spigots |
SE2112 |
165mm | 50mm | 107mm | 45mm | 100mm | 12mm | Stainless Steel 316 / duplex 2205 |
Satin Polish, Mirror Polish, Matt Black |
| Glass Fencing Spigots |
SE2115 |
165mm | 50mm | 107mm | 45mm | 100mm | 15mm |
Manufacturing Process: Investment Casting + Precision Machining+Polishing
Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
Installation Location: Flooring
Design Style: Contemporary, Modern, European, Craftsman
Certificate: ISO9001:2015
Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
Certificates: Material Certificates, Dimension Inspection Certificate
Lead Time : 60days batch production after glass spigot samples approved
Warranty Service: 1 Year
After-sales Service: Online Technical Support, Return And Replacement
Q1. What is the primary function of the Square Glass Spigot?
A: It is used to securely mount frameless glass panels for railings and fences, providing a minimalist look without obstructing your view.
Q2. Which glass thicknesses are compatible with this spigot?
A: This fitting is engineered to accommodate standard glass panel thicknesses of 12mm or 15mm.
Q3. How durable is this material in outdoor settings?
A: The spigot is crafted from 316-grade stainless steel or Duplex 2205, offering high resistance to corrosion and harsh environmental factors, making it an excellent choice for outdoor or coastal applications.
Q4. Is the installation process complex?
A: Installation is designed to be simple and hassle-free: mount the base plate to your surface, clamp the glass securely, and snap the cover plate into place for a clean finish.
Q5. What finish options are available for this fitting?
A: To match your project aesthetic, these handrail fittings come in satin polish, mirror polish, or a modern matte black finish.
Inquiry Glass Spigots in other material or surface treatment, please contact us.
