The Handrail Bracket with Cover is a premium wall-mounted hardware support designed to attach handrail tubing securely to walls, timber studs, or upright posts. Featuring an integrated decorative cover plate (rosette), this bracket conceals mounting screws and base flanges, providing a sleek, streamlined appearance with zero visible fasteners.

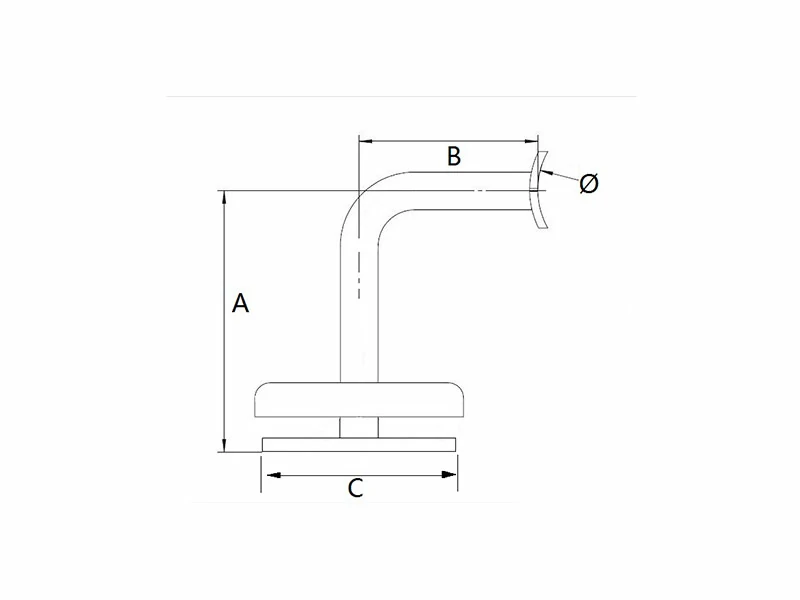

Engineered with a versatile saddle interface, this fitting supports both flat-bottomed timber handrails and round metal tubes (compatible with Ø 38.1 mm and Ø 50.8 mm). Key engineering dimensions include a vertical wall height offset (A) of 81 mm, a horizontal wall clearance projection (B) of 55 mm, and a cover flange outer diameter (C) of 67 mm.
Manufactured from high-grade AISI 304, AISI 316, and Duplex SS 2205 stainless steel, these Handrail Brackets deliver exceptional load-bearing capacity and long-term corrosion resistance. Available in brushed satin and high-luster mirror polished surface treatments, these architectural handrail fittings are ideal for high-traffic staircases, walkways, ramps, and balcony installations in residential and commercial environments.
|
Category |
Part NO. |
Fit for Tube
(mm) |
A (mm) |
B (mm)
|
C (mm) |
Ø (mm) |
Material |
Surface |
Place of Production |
| Handrail Brackets |
D0500 |
Flat
|
81 | 55 |
67 |
Flat |
AISI 304,316 or Duplex SS 2205 |
Satin or Mirror polished |
Shandong, China |
| Handrail Brackets |
D0538 |
Ø38.1
|
81 | 55 |
67 |
38.1 |
|||
| Handrail Brackets |
D0550 |
Ø50.8
|
81 | 55 |
67 |
50.8 |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Installation Location: Wall / Post
5. Design Style: Contemporary, Modern, European, Craftsman
6. Certificate: ISO9001:2015
7. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
8. Certificates: Material Certificates, Dimension Inspection Certificate
9. Lead Time : 60days batch production after handrail bracket samples approved
10. Warranty Service: 1 Year
11. After-sales Service: Online Technical Support, Return And Replacement
Q1: What is the main advantage of choosing a Handrail Bracket with Cover?
A: The snap-on decorative cover rosette conceals wall anchors, screw heads, and mounting flanges. This provides a clean, modern aesthetic while protecting underlying fasteners from dust, moisture, and wear.
Q2: What handrail sizes and profiles are compatible with this bracket saddle?
A: The support saddle accommodates multiple handrail profiles:
Flat: Designed for square metal tubing or rectangular wood handrails.
Ø 38.1 mm (1.5 in): Curved saddle for standard round handrail tubes.
Ø 50.8 mm (2.0 in): Curved saddle for larger diameter round architectural handrails.
Q3: What are the primary technical dimensions for this bracket?
A: According to engineering specifications:
Height / Vertical Offset (A): 81 mm (from wall base to the centerline of the horizontal arm)
Projection / Wall Clearance (B): 55 mm (horizontal stand-off distance from bend to saddle)
Cover Rosette Diameter (C): 67 mm outer cover diameter
Q4: Which stainless steel material grade should I choose?
A: Material selection depends on environmental exposure:
AISI 304: Best for dry, climate-controlled indoor spaces such as interior stairwells and offices.
AISI 316: Standard for general exterior handrails, outdoor walkways, decks, and humid areas.
Duplex SS 2205: Engineered for harsh coastal, marine, and chemical environments requiring extreme corrosion resistance and high yield strength.
Q5: What surface finishes are available?
A: Options include a practical brushed satin finish (ideal for concealing smudges in busy public spaces) and a mirror polished finish (offering enhanced smooth surface protection against weathering and salt air).
