50.8mm

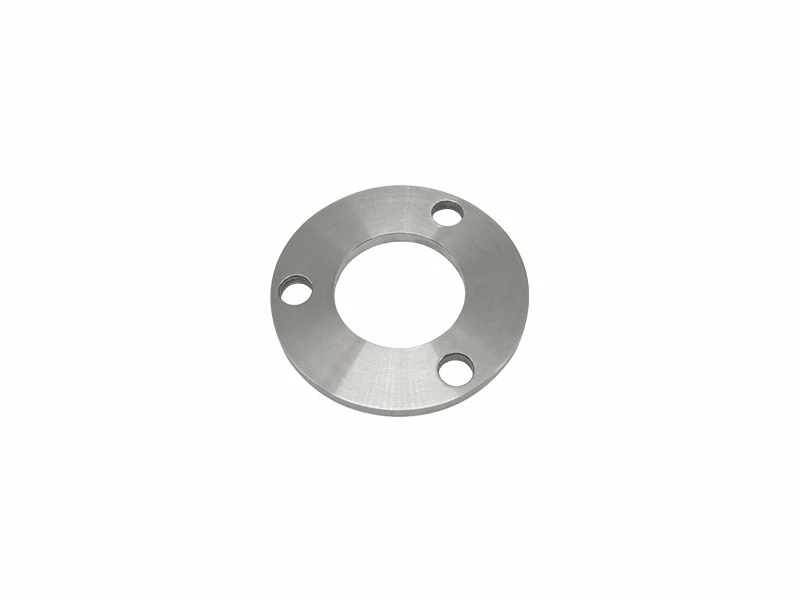

The Round Base Plate Welding is a high-strength structural foundation designed for the permanent installation of handrail posts and stanchions. Engineered specifically for welding applications, this base plate provides a flat, rigid surface that ensures a secure and unbreakable bond between the railing tube and the mounting substrate. Manufactured from premium AISI 304 or 316 stainless steel, it is built to withstand heavy mechanical loads and environmental stress in both residential and industrial settings.
Available in a contemporary brushed satin or a high-shine mirror-polished finish, these handrail fittings combine industrial-grade durability with a professional architectural aesthetic. The 6mm thickness provides the necessary substance for deep weld penetration, ensuring the long-term structural integrity of your railing system.
|
Category |
Part NO. |
Fit for Tube
(mm) |

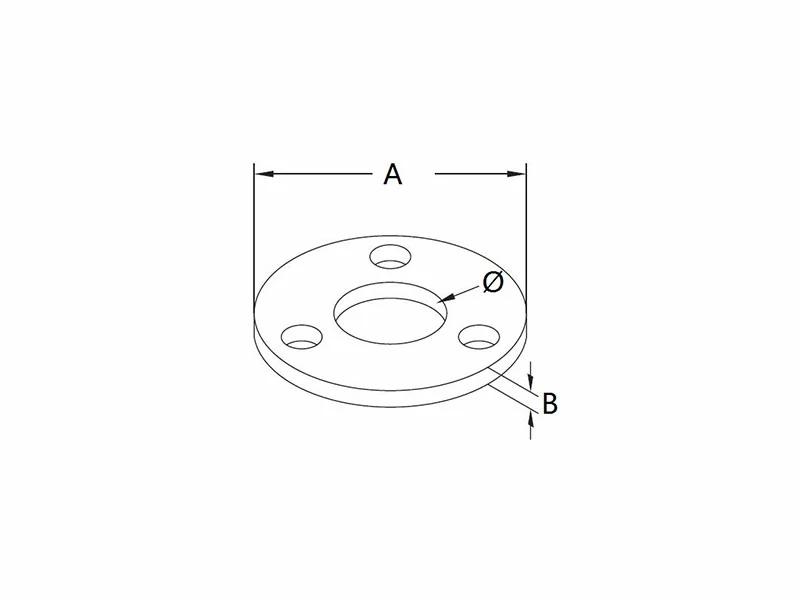

A (mm) |
B (mm) |
Ø (mm) |
Material |
Surface |
Place of Production |
| Base & Cover |
C0650 |
Ø50.8
|
100 |
6 |
50.8 |
Stainless Steel 304 / 316 |
Casting + Machining |
Shandong, China |
1. Manufacturing Process: Investment Casting + Precision Machining+Polishing
2. Application Scenario: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Park, Bathroom, Outdoor, Exterior, Entry, Hall, Staircase, Gym
3. Use Place: Bridge Railings / Handrails, Deck Railings / Handrails, Porch Railings / Handrails, Stair Railings / Handrails
4. Installation Location: Flooring
5. Design Style: Contemporary, Modern, European, Craftsman
6. Certificate: ISO9001:2015
7. Engineering Solution Capability: Graphic Design, 3d Model Design, Total Solution For Projects
8. Certificates: Material Certificates, Dimension Inspection Certificate
9. Lead Time : 60days batch production after base palte samples approved
10. Warranty Service: 1 Year
11. After-sales Service: Online Technical Support, Return And Replacement
Q1: Why is this base plate specifically for welding?
A: This base plate features a 6mm thickness and a precision-sized center hole Ø50.8mm that allows a welder to create a full-circumference bead between the tube and the plate, resulting in a permanent, high-strength connection.
Q2: Which material grade should I use for an outdoor balcony?
A: For any outdoor or high-humidity application, we strongly recommend AISI 316 stainless steel. It contains molybdenum, which protects the handrail fittings from pitting and corrosion caused by rain or salt air.
Q3: Can I cover this plate after installation?
A: Yes. While the plate is finished in satin or mirror polish, many installers choose to slide a decorative round base cover over the plate after welding and anchoring to hide the bolt heads and create a flush look.
Q4: Is the 50.8mm diameter compatible with standard tubing?
A: Yes, 50.8mm is the standard metric size for 2-inch (Outer Diameter) tubing, which is the most common size used in commercial and residential railing systems.
